B-52

Description

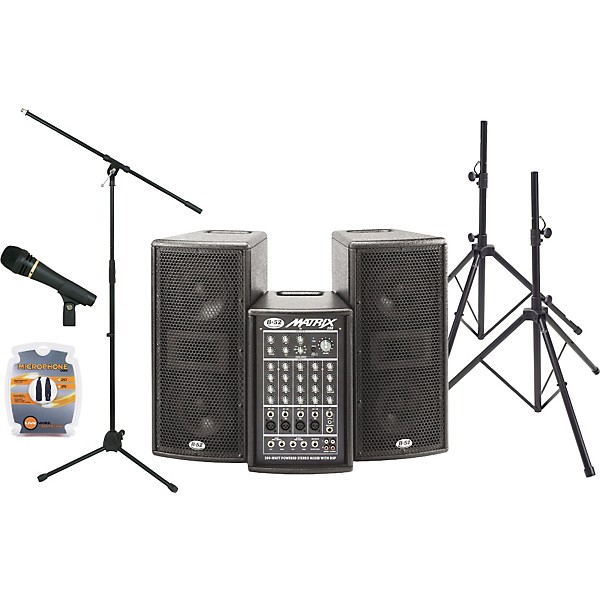

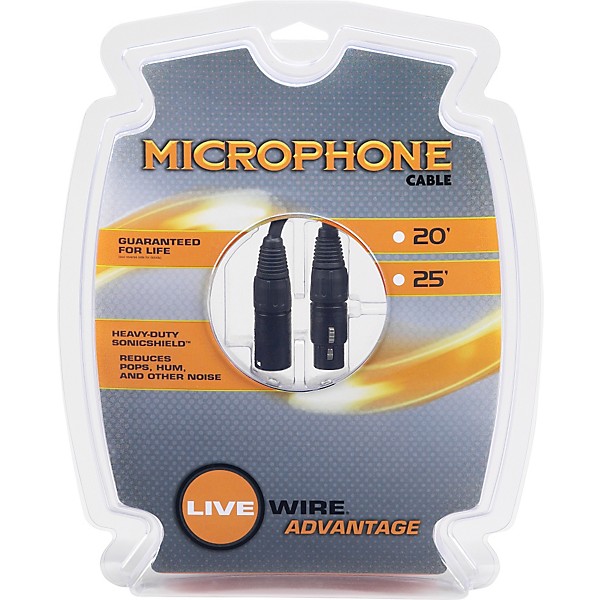

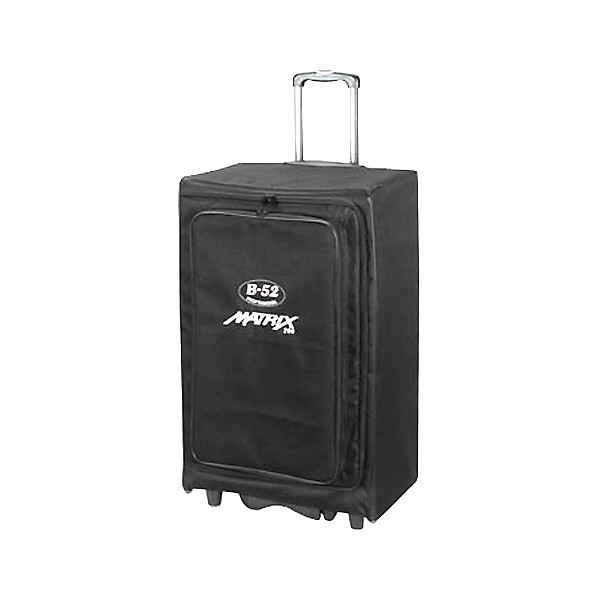

The B-52 Matrix 200 Portable PA System includes the Matrix 200 Portable PA System, a Digital Reference DR-LVX2 Dynamic Vocal Microphone, a 20' Live Wire microphone cable, 2 Proline speaker stands, and a tripod microphone stand with boom. Speaker cables and suitcase to carry all three components is included.

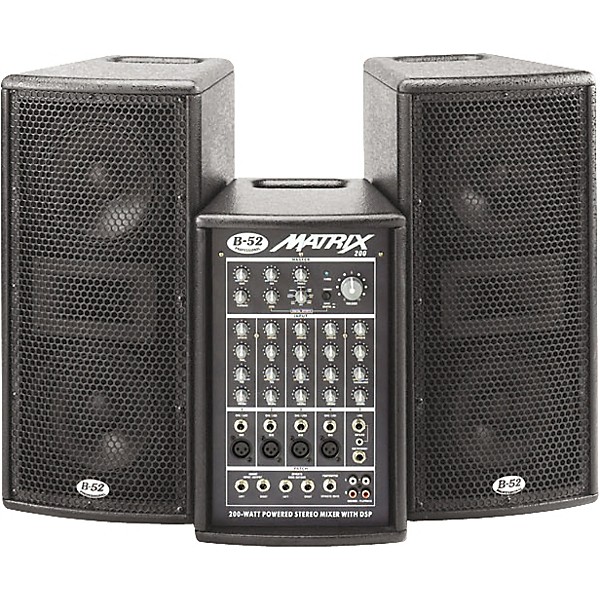

Matrix 200 Portable PA System
Compact, powerful and portable the MATRIX-200 Active Speaker PA System delivers clean, accurate sound ideal for both stage and music playback applications. The Matrix-200 has a true 200W stereo amplifier, built in 5-channel mixer, studio-quality digital effects, phantom power and numerous patch inputs and outputs.

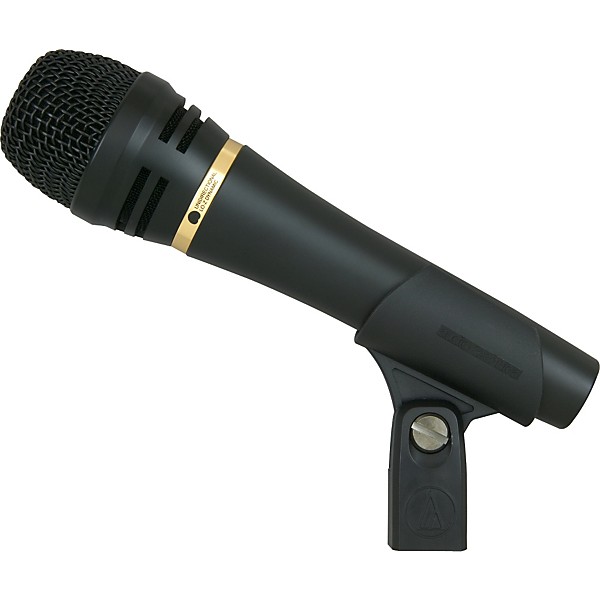

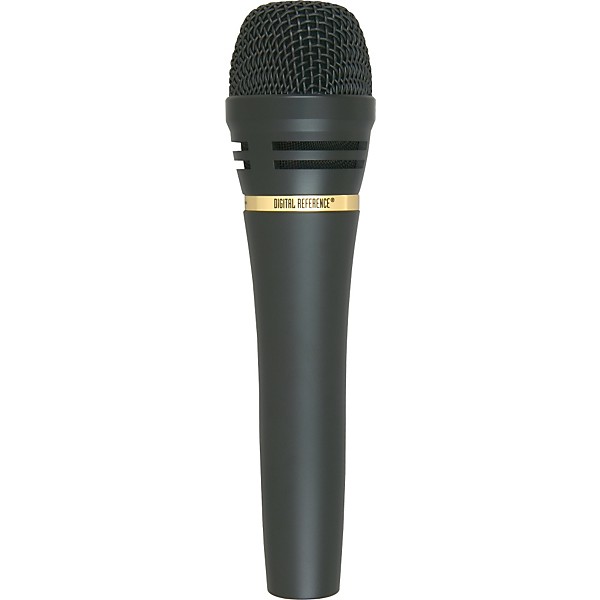

DR-LVX2 Dynamic Lead Vocal Microphone
Designed to withstand the brutal treatment road mics face. Superior internal shockmount isolates the capsule while minimizing handling noise. Extended response with a tight cardioid pattern prevents feedback. Unique design of the heavy-duty headcase/grille provides multi-level pop protection. Gold-plated XLRM-type connector. Includes professional stand clamp.

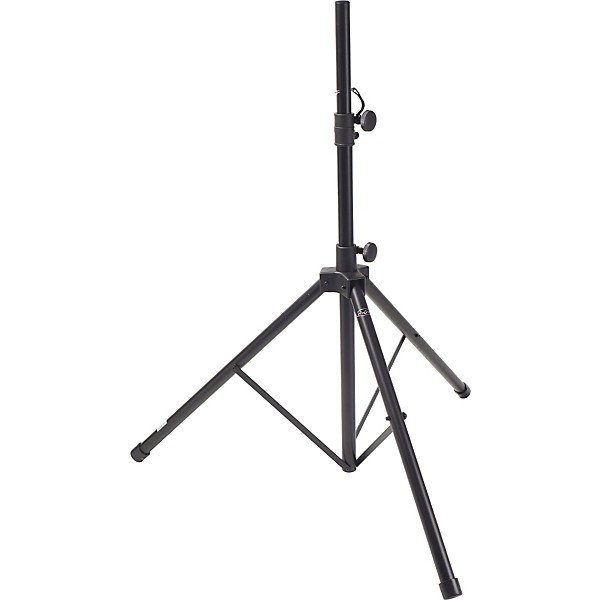

Proline tripod speaker stand

Features a center steel shaft for maximum support and an aluminum body for lighter weight. Locking pins are included for extra safety. 150-lb. capacity. Fits 1.375" or 1.5" speaker mounts. Height adjusts from 45"-73".

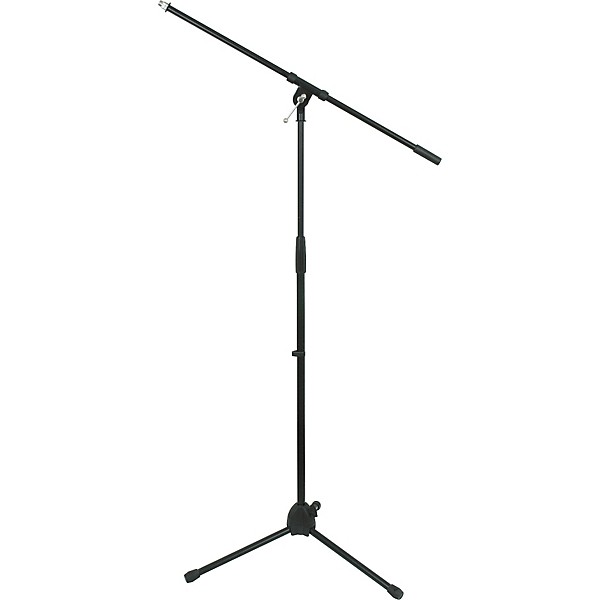

Tripod Microphone Stand

The tough and sturdy tripod microphone stand has a thread adapter and tubular legs. It has an adjustable height from floor to top thread 35" to 61-7/8". The 30-1/4" boom is not adjustable.
B-52 Matrix 200 Portable PA Package
B-52 Matrix 200 Portable PA Package
B-52 Matrix 200 Portable PA Package

Features

Matrix 200 Portable Sound System
  • Eight built-in high quality DSP effects
  • Level control to mix processed signal with main signal
  • INPUT/MASTER switch to route effects to either Master section or to individual channels
  • Powerful routing to combine optional outboard effects with internal DSP effects
Matrix 200 Stereo power amplifier
  • Output stage with discrete devices, not integrated IC amps
  • Output power of 2 x 100W RMS with high headroom
  • Comprehensive amplifier and speaker protection circuitry to guard against short circuits, DC offsets, over heating, turn-on thumps, subsonic and supersonic frequencies
  • Built-in stereo clip limiter
  • Equalization customized to enhance and optimize speaker system performance
  • Output for stereo headphones on rear panel
  • Very efficient cooling, utilizing a large heatsink and two direct flow fans
  • Power supply with low-noise torodial transformer and a dual voltage (115/230Vac) selector switch
Matrix 200 Five channel mixer
  • Four channels with both balanced XLR mic inputs and unbalanced 1/4" jack line level inputs
  • 15V dc phantom power on balanced XLR inputs for condenser microphones
  • Pan, tone, and level controls on each channel
  • One stereo input channel for stereo sources
  • Dual input with 1/4" TRS jack and 3.5mm jack to connect any 2-channel source, Dedicated mono 1/4" jack INSTRUMENT input with frequency response contoured for acoustical instruments
  • Pan/balance, tone, and effect controls
  • Low distortion, low noise circuitry
  • Playback input/output RCA connectors with level control
  • Patch section to connect optional external processors, external effects, and foot switch
  • 3-band master EQ section
  • XLR subwoofer output and SUB switch on rear panel to connect a powered subwoofer
Matrix 200 Loudspeakers
  • Dual 6.5" drivers optimized for Di'Ippolito configuration (one speaker high, one low)
  • 1" exit phenolic tweeter on exponential horn to match acoustic response of 6.5" drivers
  • Dimensions: 20" (W) x 32" (H) x 15" (D)
  • Weight (lbs): 80
DR-LVX2 Vocal Microphone
  • Performance-matched design, excellent for close-up lead vocals
  • Roadworthy, stage-proven capsule design
  • Extended response with a tight cardioid pattern prevents feedback
  • Superior internal shockmount isolates capsule while minimizing handling noise
  • Heavy-duty headcase/grille provides multi-level pop protection
  • Low-impedance output
  • XLRM-type, gold-plated connector
  • Includes professional stand clamp
Proline speaker stand
  • Tripod design
  • Center steel shaft
  • Aluminum body
  • Locking pins
  • 150-lb. capacity
  • Fits 1.375" or 1.5" speaker mounts
  • 45"-73" height
