American DJ

Description

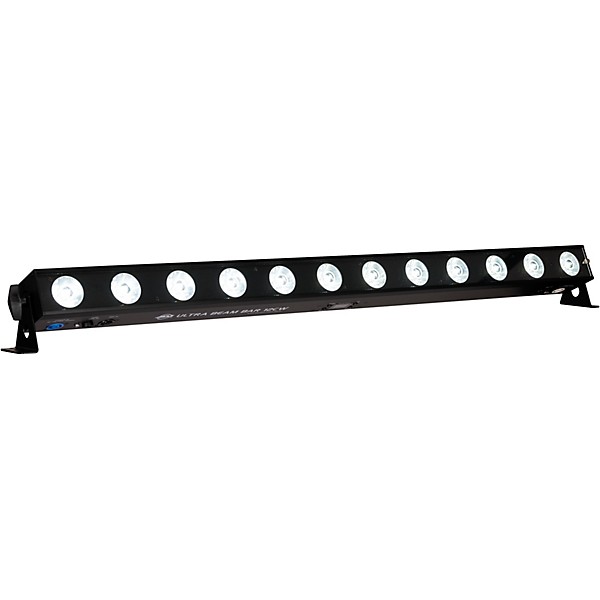

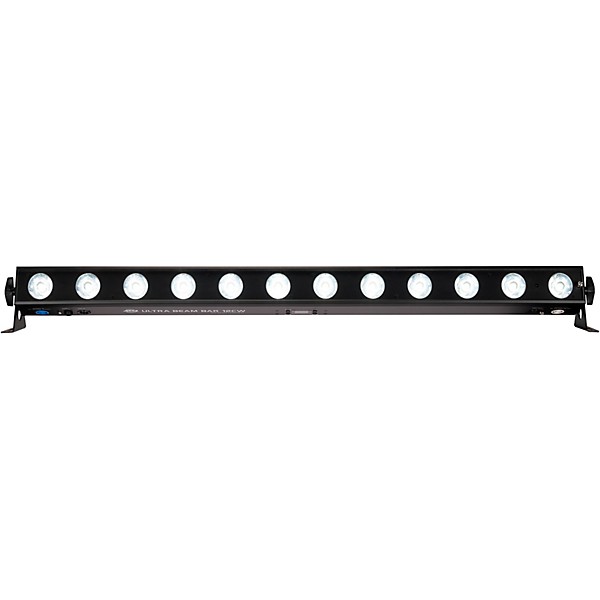

The American DJ Ultra Beam Bar 12CW is a powerful, versatile LED lighting solution designed for dynamic indoor environments like stages and entertainment venues. You'll command 12 ultrabright 20W cool white LEDs with a tight 5º beam angle per pixel, delivering 6,200K of sharp, precise illumination. Unlock stunning visual effects with 13 built-in programs and a customizable strobe rate from 0.3Hz–11Hz—giving you full creative control over your lighting design. The included UC-IR remote enables easy operation at distances up to 32.8', while DMX, RDM and RDM Net support provides seamless remote monitoring and control. Suit any environment with 0–100% electronic dimming, multiple dim modes and dim curves. When using multiple fixtures, the magnetic end caps allow for seamless alignment—creating a continuous, unbroken bar of light. With its compact design and linkable power, the Ultra Beam Bar 12CW is the ideal lighting solution for professional setups.

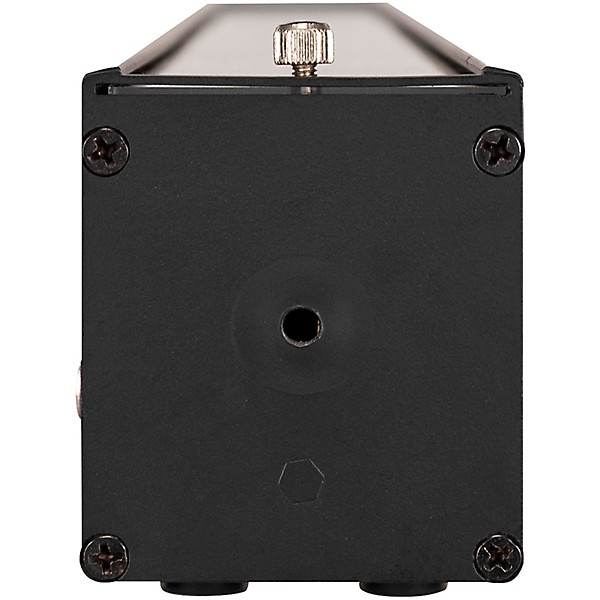

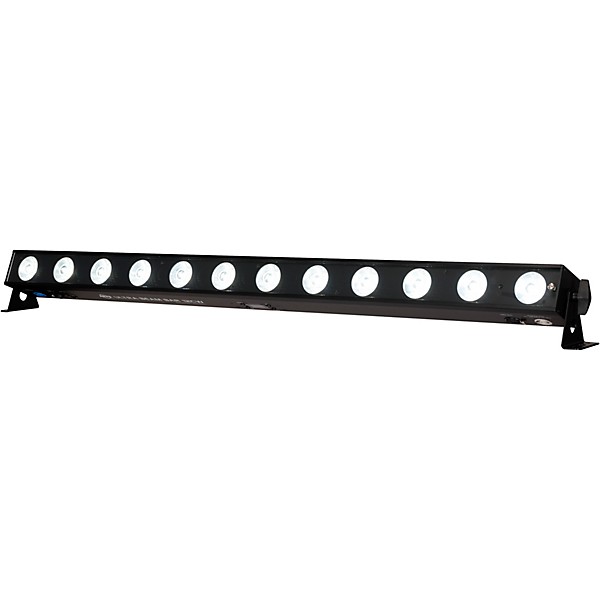

American DJ Ultra Beam Bar 12CW Linear Bar Fixture
American DJ Ultra Beam Bar 12CW Linear Bar Fixture
American DJ Ultra Beam Bar 12CW Linear Bar Fixture
warning

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specs

Light Source
  • 12 x 20W Ultrabright (6200K, Cool White) LEDs
  • Long life LEDs rated at approximately 50,000 hours
  • 1340 Lumens
  • 5° beam angle (per pixel)
  • Pixel pitch: 85.5mm
Features
  • 12 sharp beams
  • Primary/Secondary standalone control mode
  • 13 built-in programs

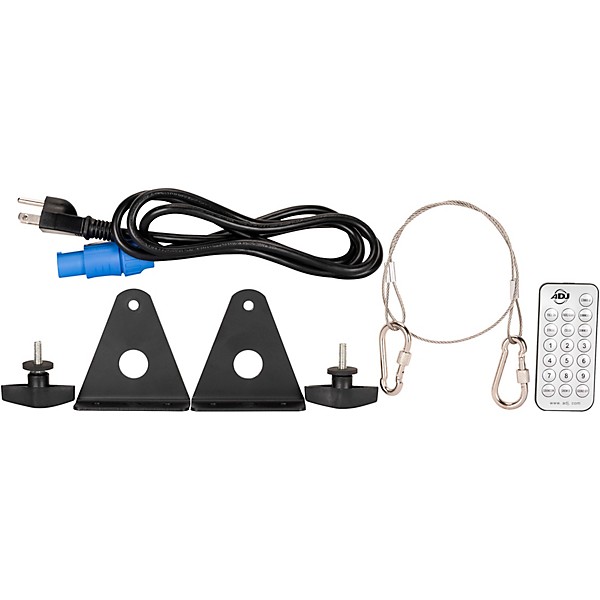

  • Compatible with the ADJ UC-IR remote, operational up to 32.8’ (10 meters) (UC-IR included)

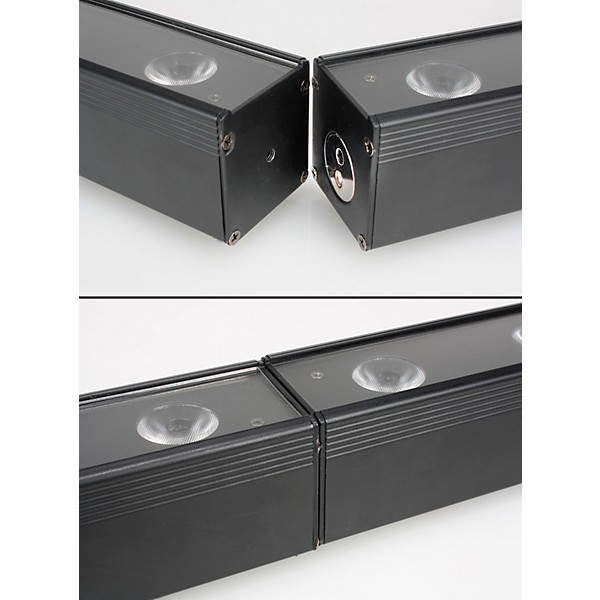

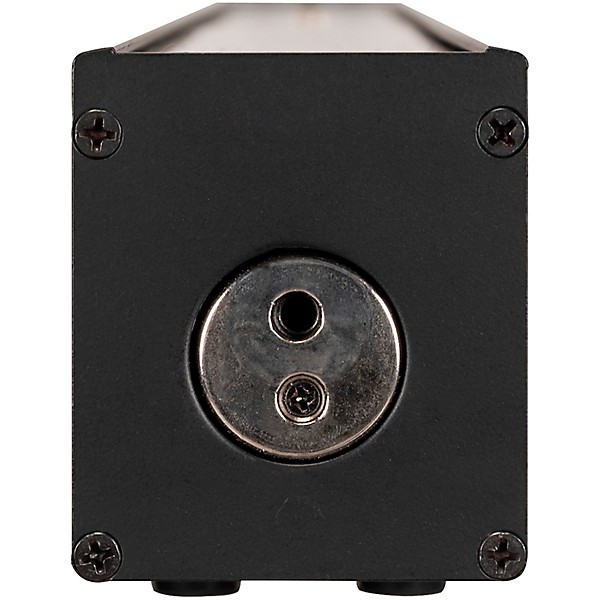

  • Horizontal magnetic alignment feature (built-in)
  • DMX, RDM, and RDM NET compliant
  • Pixel Flip mode
Controls

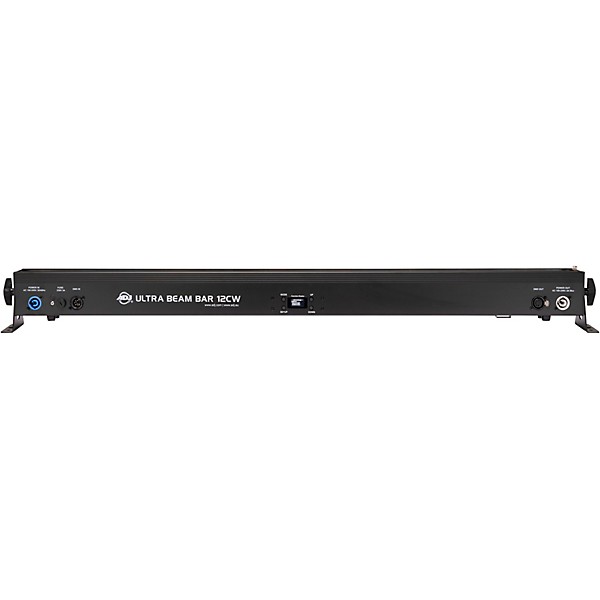

  • Display: OLED with four buttons
  • Five DMX channel modes: 1, 3, 12, 14, & 19 channels
  • Individual pixel control: Available in 12, 14 and 19 channel DMX modes
  • Five operational modes: Manual Pixel, Manual Program, Program Sound Trigger, and DMX-512 modes
  • LED refresh rate: 1.9kHz

Warranty

Warranty terms vary. Check with manufacturer for specific product warranty.
