ADJ Ultra Bar 12

ADJ Ultra Bar 12

American DJ

Description

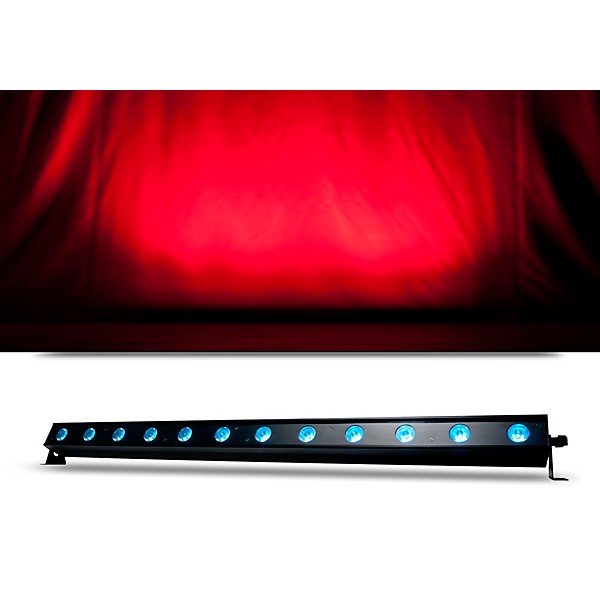

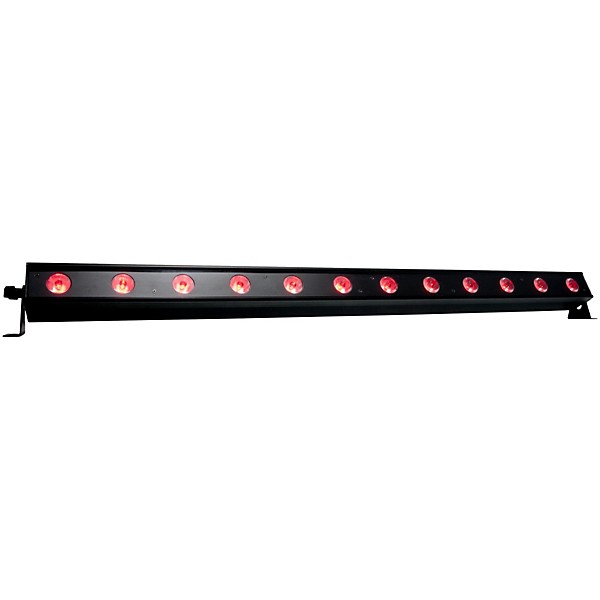

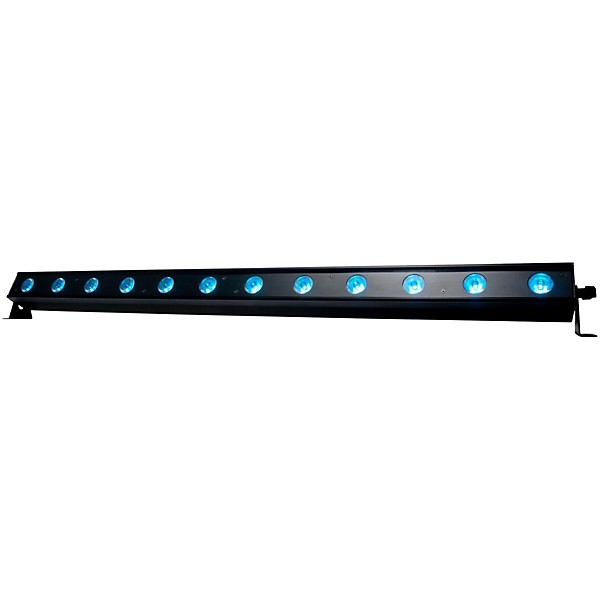

The ADJ Ultra Bar 12 is a 41.75-inch (1 meter) professional grade indoor linear fixture powered by twelve 3-Watt TRI (RGB: 3-IN-1) LEDs. Its bright chromatic 40-degree beam angle provides vibrant TRI color mixing designed for washing stages, walls and dance floors. Its rugged casing with patent pending Quick Align end locking allows for a seamless output of light with no breaks of color.

Ultra Bar 12 features built-in Color Macros (built-in colors), 6 DMX Channel Modes, 0-100% dimming and variable speed strobe. Plus, it offers flexible programming from its on-board 4-Button LED DMX-512 menu, or from the ADJ RFC RF wireless remote (sold separately).
American DJ Ultra Bar 12
American DJ Ultra Bar 12
American DJ Ultra Bar 12

Features

  • 41.75-inch (1 meter) indoor Linear Bar with 12 x 3W Ultra bright TRI (RGB: 3-IN-1) LEDs
  • Variable RGB color mixing offers a seemingly unlimited color palette - Great for Stage or Wall Washing!
  • 9 DMX Channel Modes: 3, 5, 6, 7, 8, 9, 11, 18 or 20 channels (9 Channel & 11 Channel in 3 Section Mode Only) (18 Channel & 20 Channel in 6 Section Mode Only)
  • 6 operational modes: Auto Run, Program Mode, Sound Active, RGB Dimmer, Static Color and DMX-512 Mode
  • 3 or 6-Section Pixel control
  • Patent Pending Quick Align (Magnetic)
  • Beam Angle: 40 degrees
  • Flicker Free
  • 4-Button DMX LED Display
  • 35 built-in Color Macros
  • LED pulse & strobe effect
  • Electronic Dimming: 0-100%
  • Includes mounting brackets to mount on a wall or set on the ground
  • Compatible with the ADJ RFC remote with RF control up to 30 ft./ 10M (sold separately)
  • Long Life LEDs (Rated at approximately 50,000 hrs.)

Specs

  • Power Draw: 43W
  • Linkable: DMX via 3-pin XLR cable; Power via IEC daisy-chain power link (Up to 13 Ultra Bar 12 fixtures)
  • Multi-voltage operation: AC 100V-240V 50/60Hz
  • Dimensions (LxWxH): 41.75" x 2.5" x 3.75"/ 1060 x 63 x 90mm
  • Weight: 6 lbs./ 2.7 kg.
