Description

The ADJ Lighting Saber Spot RGBL packs extensive features into a compact, lightweight fixture. With its integrated 20W RGB+Lime LED source and tight 5.7-degree beam angle, it's designed for pinpointing tables, objects and mirror balls to add color and excitement to any event.

Included Lens Kit

Creativity starts with the beam and the Saber Spot RGBL comes ready with a lens kit to shape your light. Easily swap between the native 5.7-degree optic, a wider 10-degree lens and a broad 45-degree beam. Widen the beam to cover a larger dance floor or go tight for razor-sharp gobo projections.

Smooth RGB Color Mixing

The Saber Spot RGBL produces smooth, even color mixing through its advanced optics. The 20W RGBL LED source combines red, green, blue and lime LEDs into a single multi-colored beam. An advanced ACL lens mixes the colors beautifully for dynamic looks.

Extensive DMX Control

Take full control with DMX and RDM support, and 12 DMX channel modes. Dial in smooth RGB color mixing, adjust dimming, strobe, programs and more. Control the lime color separately or combine it with RGB for a wider palette. Simple menu navigation via the 4-button display.

Built-in Programs for Dynamic Looks

63 built-in color macros and 13 color-changing programs add movement and interest. Select from pre-programmed chases and effects at the touch of a button. Use standalone or sync programs to music.

Aim Light From Any Angle

The included scissor yoke offers versatile mounting, allowing you to hang the light vertically or horizontally. Position it at the desired angle to highlight a specific object or area. Power linking and compact size facilitate installation.

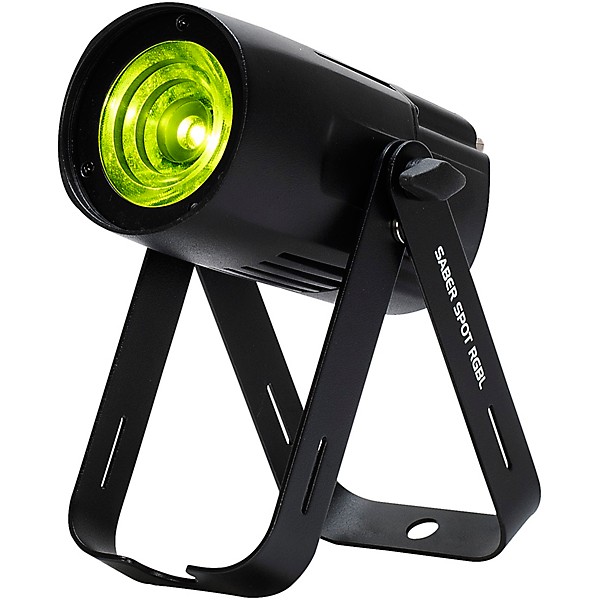

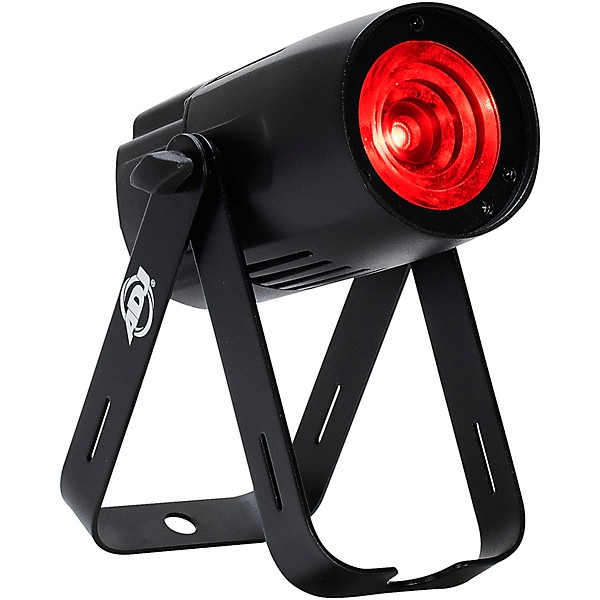

American DJ Saber Spot RGBL LED Pinspot Light

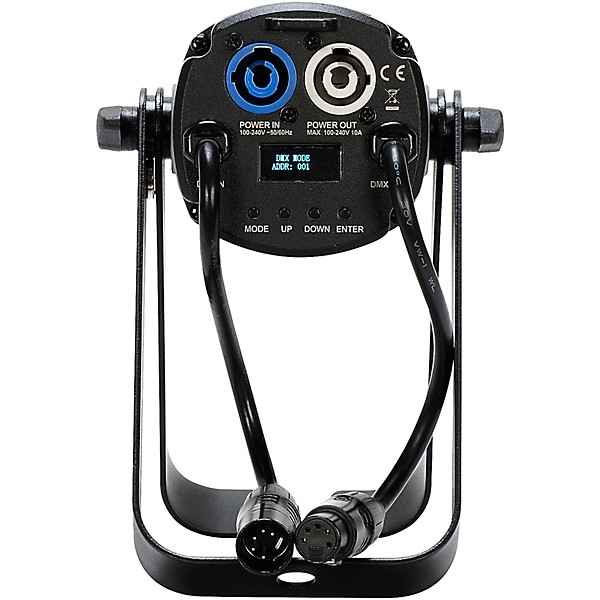

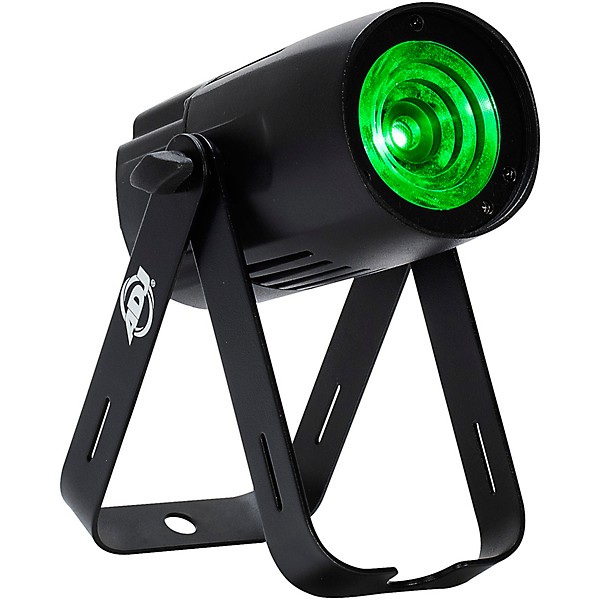

American DJ Saber Spot RGBL LED Pinspot Light

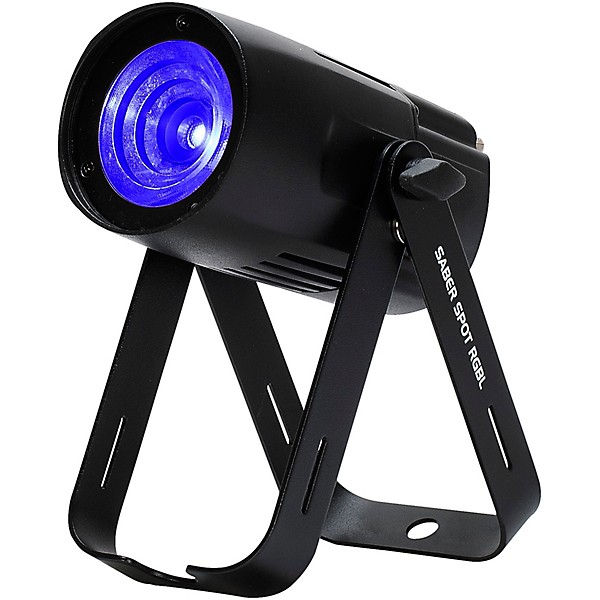

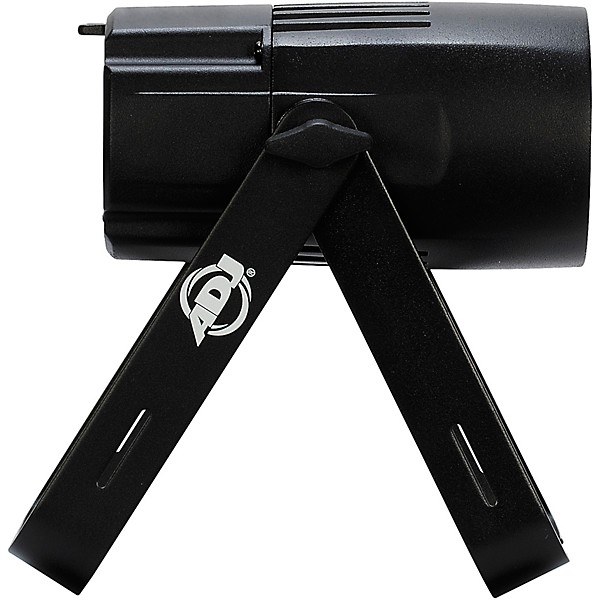

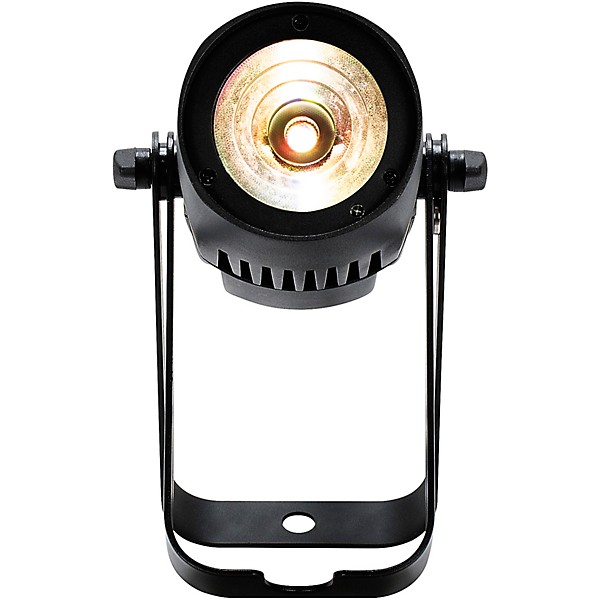

American DJ Saber Spot RGBL LED Pinspot Light

Features

  • 20W RGBL LED source: advanced ACL lens tight 5.7° beam
  • 12 DMX channel modes 63 color macros
  • 13 color programs 4-button display electronic dimming 0-100%
  • DMX RDM compliant 2,000K–9,900K color temperature presets
warning

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specs

Optical
  • Light Source: 20-watt, RGBL LED
  • LED Life Expectancy: 30,000 hr.
  • Beam Angle: 5.7°
  • Includes two interchangeable frost filter lens (10-degree & 45-degree)
  • LED Refresh Rate: 3.6kHz
Technical Features
  • DMX and RDM Compliant
  • Color Temperature Presets
  • 63 Built-in Color Macros
  • 13 Built-in Color Changing Programs
  • 4-button Digital Display for easy navigation
  • Electronic Dimming: 0–100%
  • Includes a scissor yoke to be hung, or set on the ground
Connections
  • Power Input: Indoor power locking
  • Power Pass through: Indoor power locking
  • Control: 5-pin DMX In/Out pigtails
  • With Wired Digital Communication
Network Control
  • 12 DMX Channel Modes: 3 HSI/4 RGBL/4 HSI+/5 RGBL/6 sRGBLI/6 RGBL/7 RGBL/8 RGBL/8 16-bit/10 HSI/12 sRGBLI/13 RGBL
  • RDM Compliant
Electrical
  • Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
  • Power draw 120V 60Hz: 16.7W, 0.243 Amps
  • Power draw 230V 50Hz: 16.7W, 0.147 Amps
  • Power Output Current: 1.2A (14W)
  • Power Linking: 57 pcs @120V, 95pcs @230V
Dimensions
  •  6.69” x 5.31” x 8.46" (170 x 135 x 215 mm)
  • Weight: 3.2 lb./1.45 kg.
Black Housing Certifications & Ratings
  • CE
  • ETL (Pending)
  • IP20
What’s Included
  • 1.83 m Indoor locking power cord
  • 2 frost filter lens (10-degree & 45-degree)
  • Metal clip ring for frost filter lens
Optional Accessories
  • PLC 3, PLC 6, PLC 10 (Indoor locking power link cables)

Warranty

Warranty terms vary. Check with manufacturer for specific product warranty.
