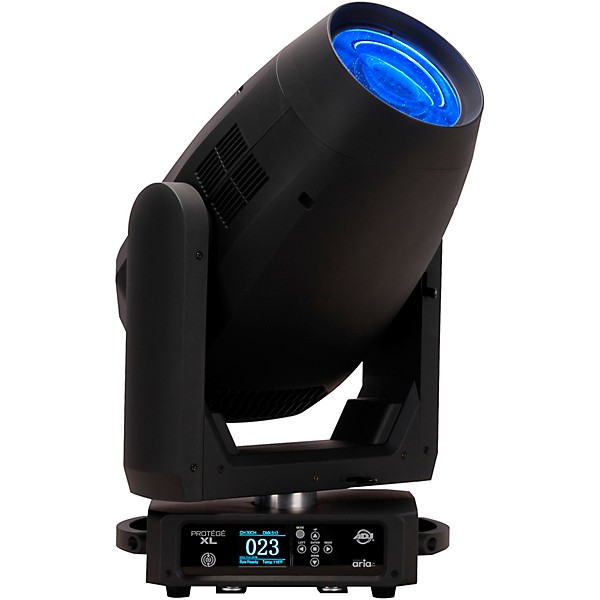

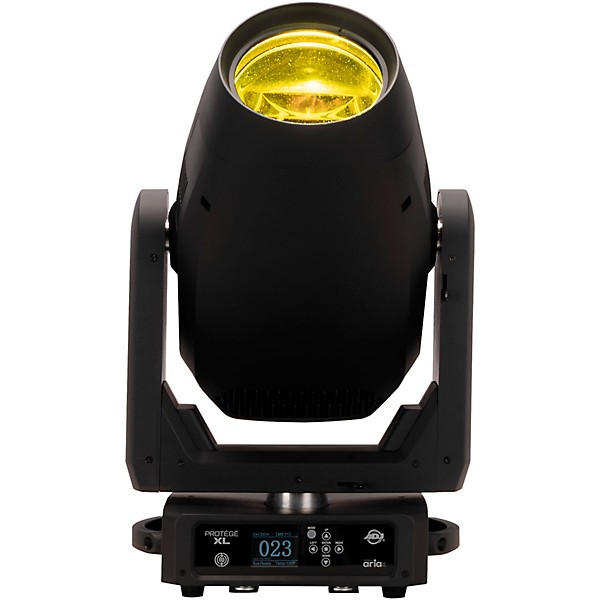

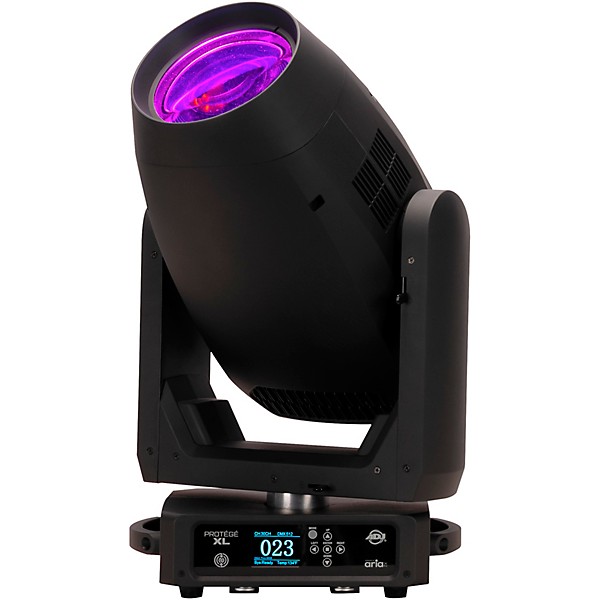

American DJ Protege XL High-Output LED Moving Head Spot

When a production calls for commanding output and precise control, the ADJ Protégé XL answers with flagship-level performance. Designed as the top model in the Protégé Series, this professional moving head spot pairs a 450W white LED engine with 20,000 lumens of output and precision optics for serious stage impact. Its 7000K LED source delivers crisp, high-intensity projections across a wide 4.1°–45° motorized zoom range, transitioning seamlessly from tight aerial beams to expansive GOBO projections and smooth wash effects. Disc-based CMY color mixing, variable CTO color temperature control, dual rotating GOBO wheels, overlayable prisms and animation effects combine to form a comprehensive creative toolkit in a single tour-ready luminaire built for live events, houses of worship, theatres, clubs and production environments.

Advanced Optics, Color and Effects System

Creative flexibility sits at the core of the Protégé XL’s design. The disc-based CMY color system and dedicated CTO wheel allow smooth color blending and precise temperature adjustment, while a seven-position dichroic color wheel provides fast access to saturated hues including red, blue, green, orange, quad color, Congo blue and CTC correction. Two independent rotating GOBO wheels—each loaded with seven interchangeable glass gobos—expand texture and projection options. Dual 6-facet prisms in linear and circular formats can be overlaid for layered aerial effects. A motorized focus system, animation wheel mounted on a movable arm and light and heavy frost filters extend its range further, enabling designers to move from sharp, high-definition projections to soft-edged wash looks with precision.

High-Speed Movement and Reliable Construction

Built for touring and permanent installation, the Protégé XL utilizes three-phase motors for fast, accurate pan and tilt movement with ultrasmooth operation. Pan ranges from 540° or 630°, with an optional 360° continuous pan rotation mode for dynamic motion effects, while tilt spans 270°. Integrated pan and tilt locks protect the fixture during transport and rigging, reinforcing reliability in demanding environments. The rugged housing and professional-grade internal components are engineered to withstand repeated setup and teardown, making it a dependable choice for production companies and venue installations.

Comprehensive Control and Connectivity

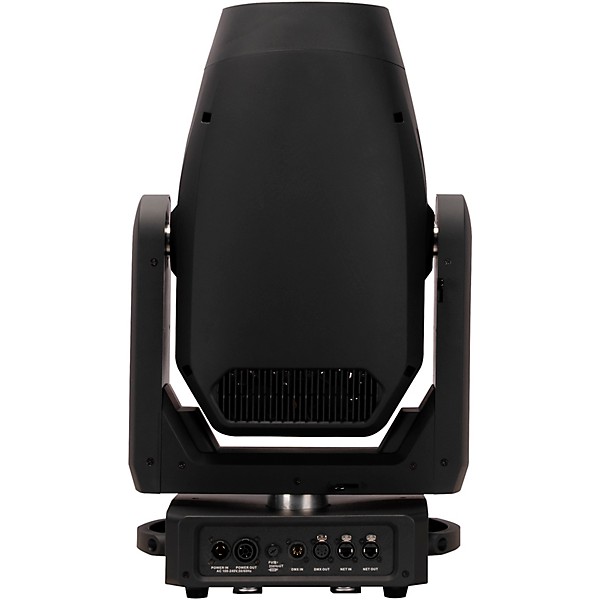

The Protégé XL integrates into modern lighting systems with extensive control and networking capabilities. It supports DMX, sACN, Art-Net and RDM (remote device management) via 5-pin XLR and RJ45 connections, and includes the integrated Aria X2 wireless management system for cable-free configuration. An NFC interface built into the base and display enables quick setup using compatible smart devices, while a full-color 180° reversible LCD menu and six-button touch control panel streamline on-site adjustments. IP65-rated locking power in/out connectors, multiple channel modes and refined optical performance position the Protégé XL as a powerful, flexible flagship moving head spot built for maximum output and creative control.
