American DJ

Description

The Hydro Spot 2 is an advanced LED spotlight powered by a 320W LED engine that pumps out an impressive 15,000 lumens while maintaining a cool temperature. Motorized focus, zoom and dimming put total control over the beam at your fingertips. Create captivating visuals with the animation wheel, two prism effects and gobo wheels that produce an array of patterns and textures.

Precise Motorized Focus, Zoom and Dimming

Adjust the Hydro Spot 2's beam quickly and accurately using the motorized focus, zoom and dimming features. The zoom ranges from 8° to 41° for spotlighting a specific area or flooding a wide space. Smooth 0-100% dimming allows you to set the perfect level of brightness for any application or environment.

Animation and Prism Effects Dazzle Audiences

The built-in animation wheel and two prism effects transform the Hydro Spot 2 into an engaging lighting tool. The prisms—one rotating and one linear—bend the light into colorful, dancing shapes. Use the prisms and animation wheel together or separately to create a customized show.

Gobo Wheels Produce Textures and Patterns

Two gobo wheels, one rotating and one static, place various patterns and textures at your disposal. The rotating gobo wheel holds seven replaceable gobos that can spin and shake for dramatic effects. The static wheel provides eight additional gobos.

Frost Filters Soften and Spread the Light

Attach one of the two frost filters to diffuse and spread the Hydro Spot 2's beam for an even wash. The heavy frost filter produces a wide, soft wash ideal for illuminating backdrops or cycloramas. The medium frost filter softly blurs the edges of gobos and prism projections, creating a dreamy effect.

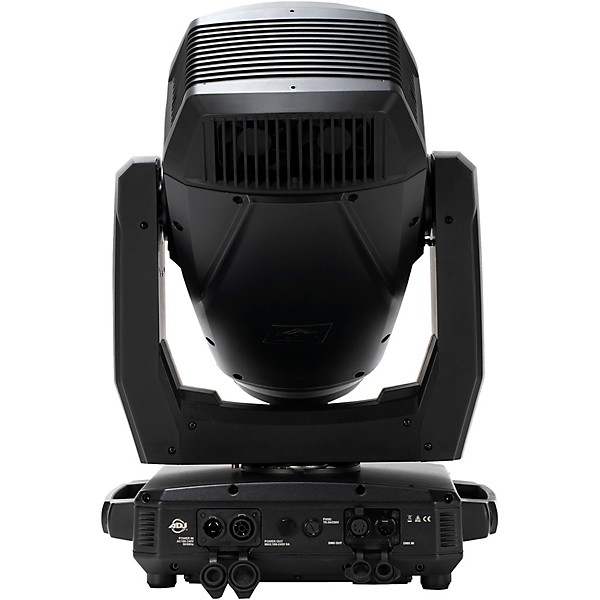

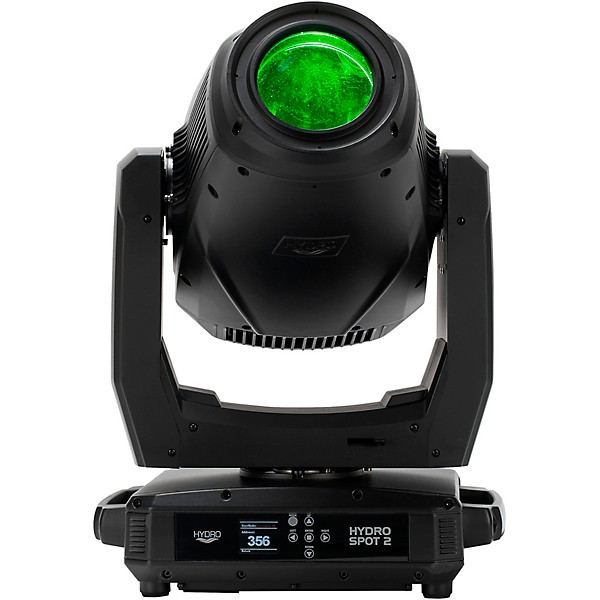

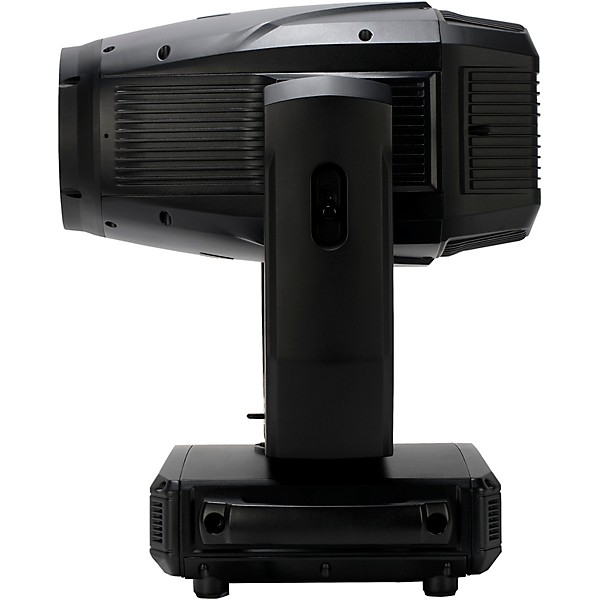

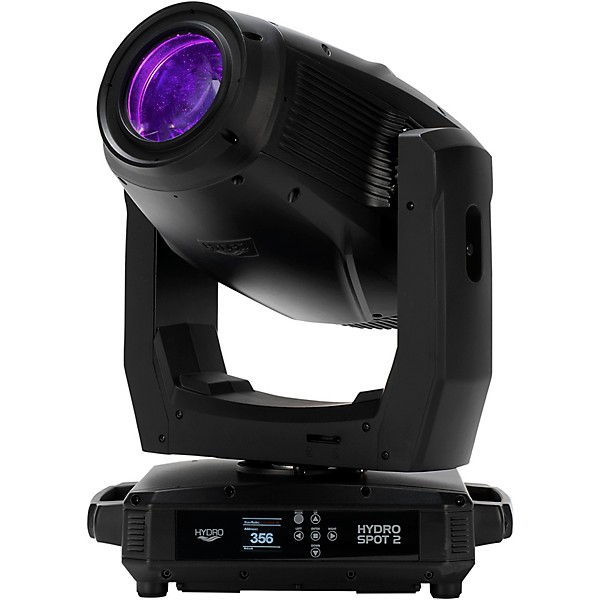

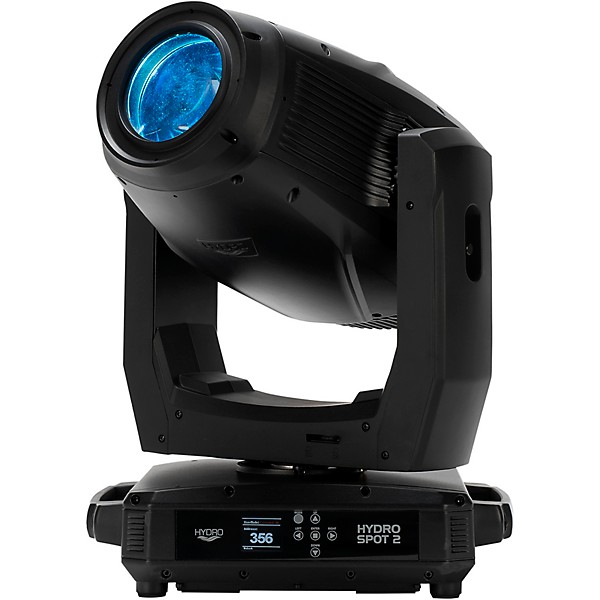

American DJ Hydro Spot 2 IP65 320 W LED Spotlight
American DJ Hydro Spot 2 IP65 320 W LED Spotlight
American DJ Hydro Spot 2 IP65 320 W LED Spotlight

Features

  • Motorized Focus
  • 2 Frost Filters
  • Motorized Zoom: 8° ~ 41°
  • Animation Wheel
  • 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
  • 0-100% smooth dimming
  • Various strobe speeds
  • 2 cooling fans
  • Omega Bracket included
  • 1.83M locking power cable included
  • ETL Approved / CE Certified
  • IP65 with Marine Coated Exterior and conformal coated p.c.b's
warning

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specs

Light Source
  • 320W Cool White LED Engine (50,000 hr.)
  • 15,000 Lumens
Color
  • CMY color mixing system
  • Variable CTO flag
  • Color wheel with 7 dichroic colors + white (includes CTB and High CRI filters
Gobo Wheels
  • (1) Rotating Gobo wheel with 7 Gobos
  • (1) Static Gobo wheel with 8 Gobos
  • All Gobo's on rotating wheel are replaceable
  • Gobo Shake Effect on both wheels
  • Aluminum Gobo size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)
  • Glass gobo size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)
Prism Wheel
  • Prism Wheel 1: Rotatable 6-facet Circular
  • Prism Wheel 2: Rotatable 5-facet Linear
  • Both Prisms are indexable
Frost Filters
  • Frost 1: Heavy frost for wash effect
  • Frost 2: Medium frost creates lightly blurred edges for Gobo and Prism FX
Control
  • 3 DMX Channel Modes: 23/27/34
  • Color LCD display with 6-button function menu
  • Control Mode: DMX512 or internal programs
  • 6 Dim Modes: Standard, Stage, TV, Architectural, Theatre, Stage2
  • 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
  • Selectable LED Refresh Rates (900 Hz~25K Hz)
  • 0-100% smooth dimming
  • Various strobe speeds
  • RDM (Remote Device Management)
  • With Wired Digital Communication Network
Pan/Tilt
  • Pan: 630 degrees
  • Tilt: 270 degrees
Connections
  • DMX Connections: 5-pin XLR In/Out
  • Power Connections: IP65 PowerLock In/Out to daisy chain power
Electrical
  • Multi-voltage operation: 90-240V, 50/60Hz
  • Max power consumption: 400W
Size and Weight
  • Dimensions (LxWxH): 11.42" x 16.70" x 23.51" (290x424x597mm)
  • Weight: 57.2lbs (26kg)

Warranty

Warranty terms vary. Check with manufacturer for specific product warranty.
