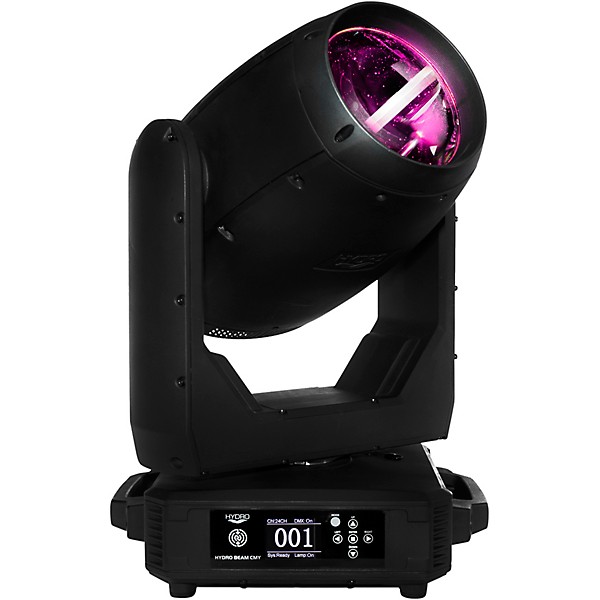

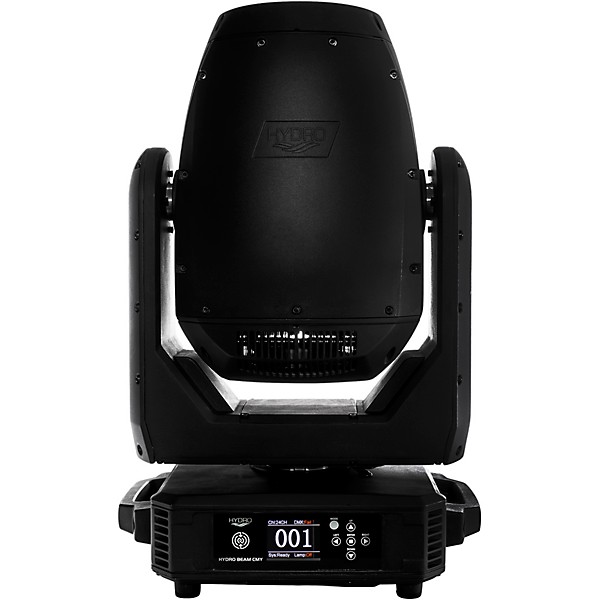

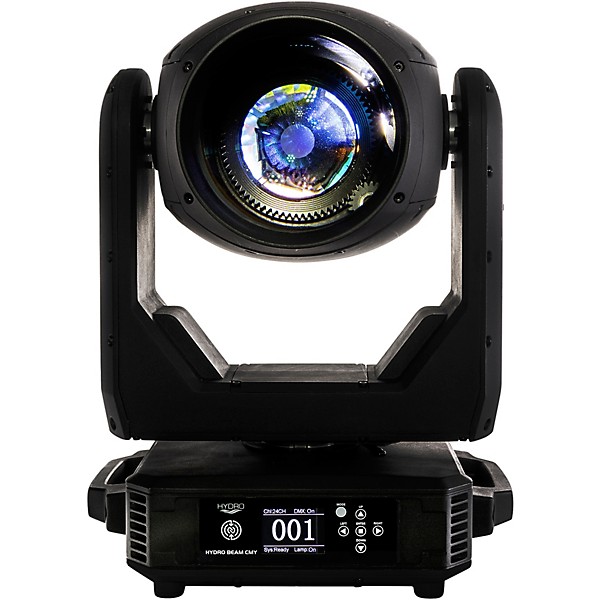

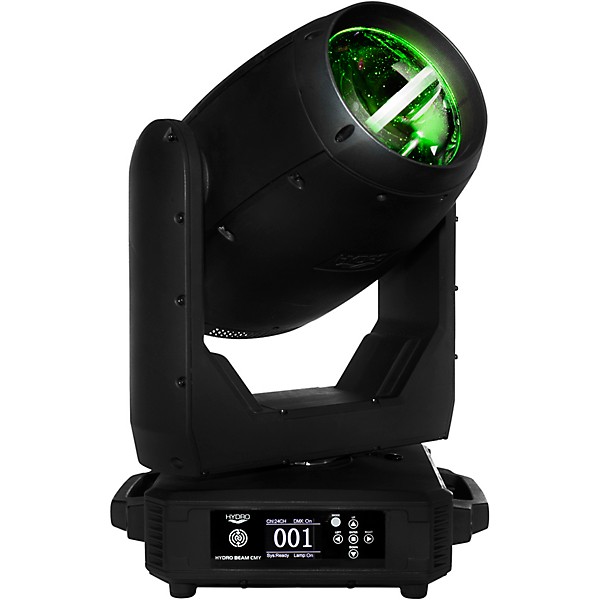

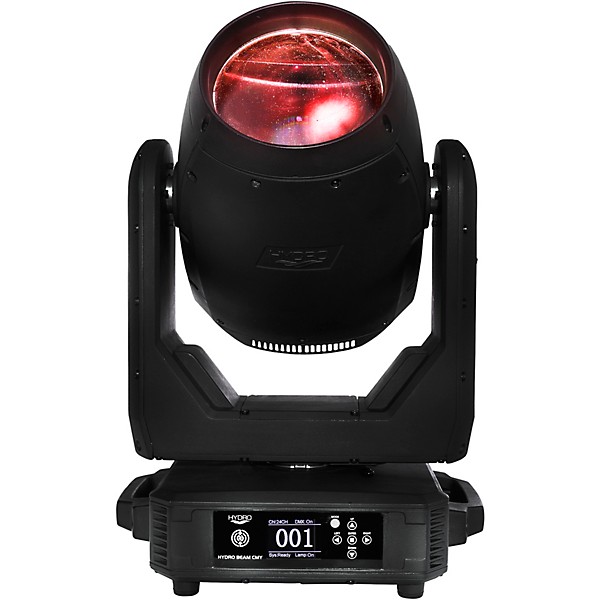

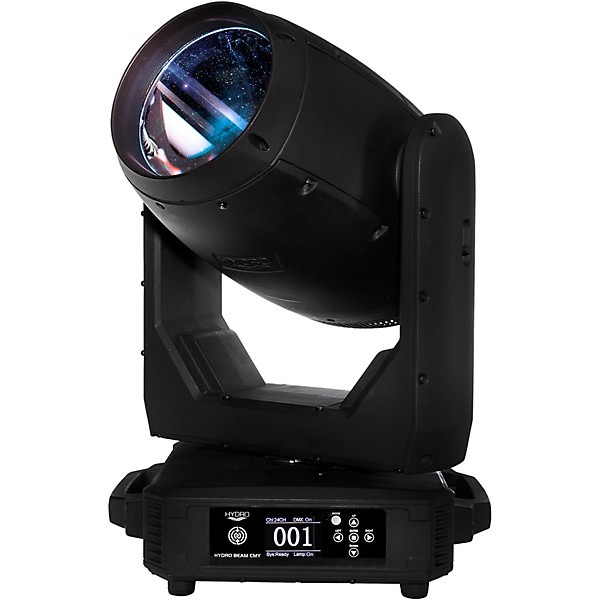

American DJ Hydro Beam CMY IP65 Moving Head Beam Fixture

When your show demands extreme output, uncompromising weather resistance and lightning-fast movement, the ADJ Hydro Beam CMY is built to deliver. This IP65-rated beam fixture is powered by an OSRAM Sirius HRI 310W PRO discharge lamp, producing an ultrabright 2º beam that cuts cleanly through ambient light, haze and outdoor conditions. Full CMY color mixing, a 14-position dichroic color wheel with CTO, CTB and UV, dual rotating prisms and a 16-bit motorized focus system give designers precise control over beam shaping and projection clarity. Built for festivals, stadium tours, theme parks and large-scale event production, the Hydro Beam CMY combines punch, speed and durability in a professional outdoor-ready platform.

Narrow 2° Beam With Advanced Optics

At its core, the Hydro Beam CMY is engineered for maximum beam intensity and projection definition. The high-quality glass lens and precision internal optics maintain a razor-sharp 2° beam angle, while 16-bit fine focus ensures crisp aerial effects at long distances. The fixture’s GOBO wheel features 17 static patterns, including four beam reducers, plus shake and split-color effects for added texture and dimension. With smooth 0–100% dimming and a wide range of strobe speeds, it delivers the dynamic punch required for high-energy productions and large outdoor environments.

CMY Color, Prisms and Beam Shaping Tools

The full CMY color mixing system enables seamless transitions and an expansive range of hues for modern beam design. A 14-position dichroic color wheel includes CTO (3200K), CTB (9000K), UV and multiple saturated colors, all indexable for split-color effects. Two rotating prisms—a 16-facet circular and a 6-facet linear—can be used independently or overlaid for complex multilayered beam effects. A frost filter adds further versatility, allowing the fixture to shift from a tight beam to a softer-edged wash look when required.

IP65 Touring Durability and Advanced Control

Designed for professional touring and outdoor installations, the Hydro Beam CMY features 3-phase high-speed pan and tilt motors for smooth rapid movement across 540° pan and 270° tilt, each with 16-bit fine resolution. Control options include DMX512, RDM and integrated Aria X2 wireless DMX with OTA firmware updates and NFC configuration for streamlined setup. The IP65-rated housing protects against dust and water ingress, while IP65 locking power and Seetronic 5-pin DMX connections support reliable operation in demanding environments. Delivering high-impact beam performance with rugged reliability, the Hydro Beam CMY is built for lighting professionals who demand consistent results in any weather.
