Description

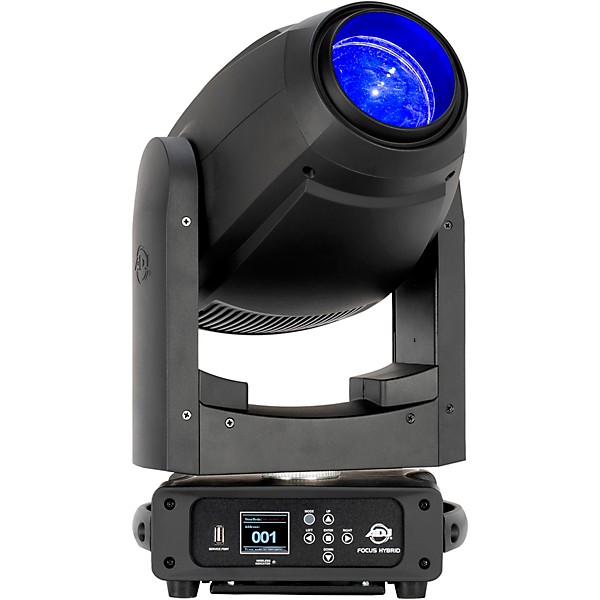

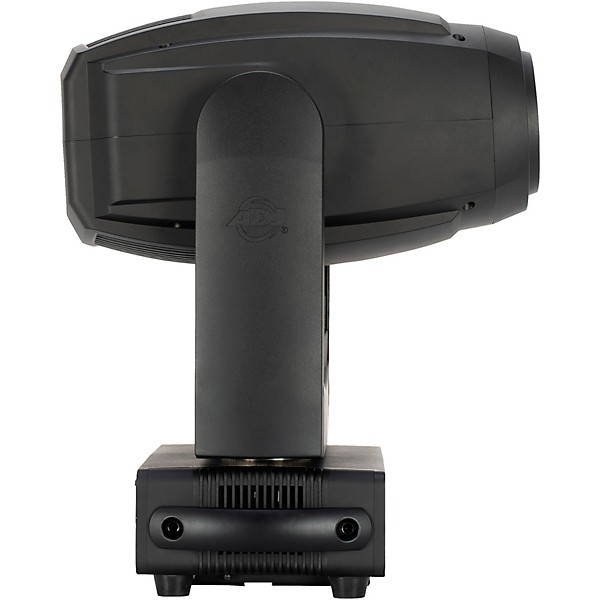

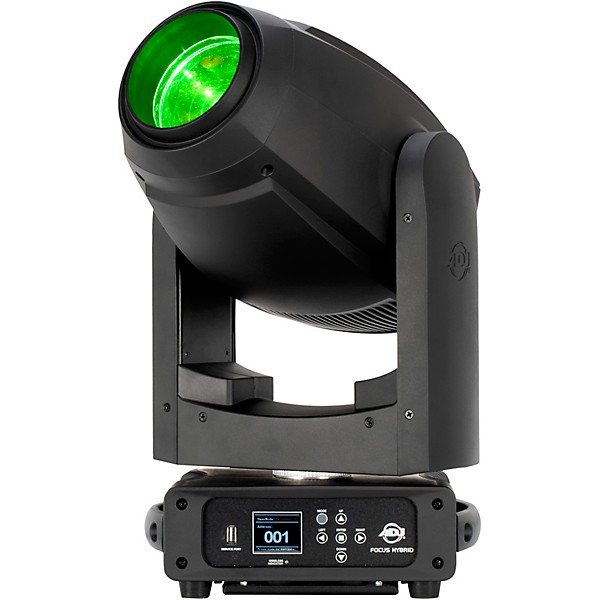

Offering an efficient 200W LED light source combined with an extensive feature set, the Focus Hybrid Moving Head from American DJ is a versatile luminaire. It can function interchangeably as a spot, wash or beam fixture, making it ideal for rental and event production applications as well as installation in venues that require a light that delivers on flexibility. It features motorized zoom and focus, two GOBO wheels, an independent color wheel, two rotating prisms and a replaceable frost filter.
American DJ Focus Hybrid 200W LED Moving Head With DMX Black
American DJ Focus Hybrid 200W LED Moving Head With DMX Black
American DJ Focus Hybrid 200W LED Moving Head With DMX Black

Features

  • Power cable
  • 2 - Omega brackets
  • Medium frost filter
warning

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specs

Photometric Data
  • 4,100 Total Lumens
  • 7,500K, >70CRI
  • 57,433 LUX 5,336 FC @16.4’ (5m) (3.1° Beam)
  • 1,293 LUX 120 FC @16.4’ (5m) (23.8° Beam)
Effects
  • 8-Facet Circular & 6-Facet Linear Rotating Prisms
  • Prism Layering
  • Replaceable Frost Filter (Heavy Frost Default)
  • Motorized Zoom (2° to 24°)
  • Motorized Focus
  • Electronic Dimming & Strobe (1-20Hz)
Color
  • Color Wheel with 11 dichroic colors, includes 3200 CTO Filter
  • GOBOS
  • (2) Gobo Wheels
  • #1 - (7) Interchangeable Rotating-Indexing Gobos
  • #2 - (15) Static-Stamped Gobos
Controls
  • (3) DMX Channel Modes (19 / 23 / 25)
  • WiFLY EXR Wireless DMX Built-in (2500 ft. 700M line of sight)
  • RDM (Remote Device Management)
  • 6 Button Touch Control Panel
  • Full Color 180° Reversible LCD Menu Display
  • 8 / 16 Bit Resolution Adjustable Movement

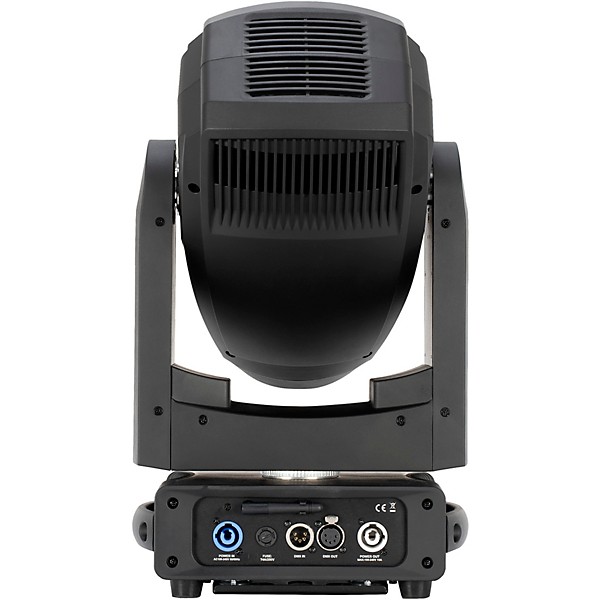

  • 5 pin XLR DMX In/Out
  • Locking In/Thru power connections
  • Antenna on rear for WiFLY EXR Wireless DMX connection
  • With Wired Digital Communication Network
Pan/Tilt
  • Pan: 540-degrees
  • Tilt: 270-degrees
Size and Weight
  • Length: 6.93” (176mm)
  • Width: 10.95” (278mm)
  • Vertical Height: 20.99” (533mm)
  • Weight: 31 lbs. (14.10kg)
Electrical/Thermal
  • AC 100-240V - 50/60Hz
  • Max Power Consumption: 335W
  • Max ambient temperature: -13°F to 113°F (-25°C to 45°C)
  • Max housing temperature: 136°F (58°C)
Technical Data
  • DB Rating @ 3ft.: 43.2dB
  • BTU: 0.32
  • BTU/H: 1,142.35
