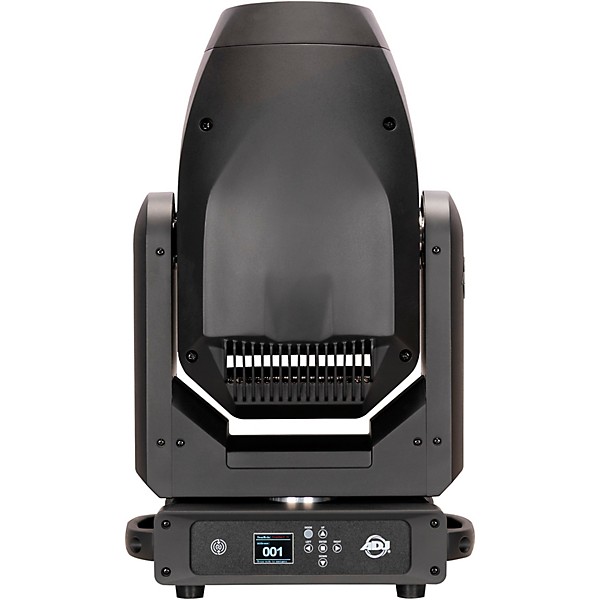

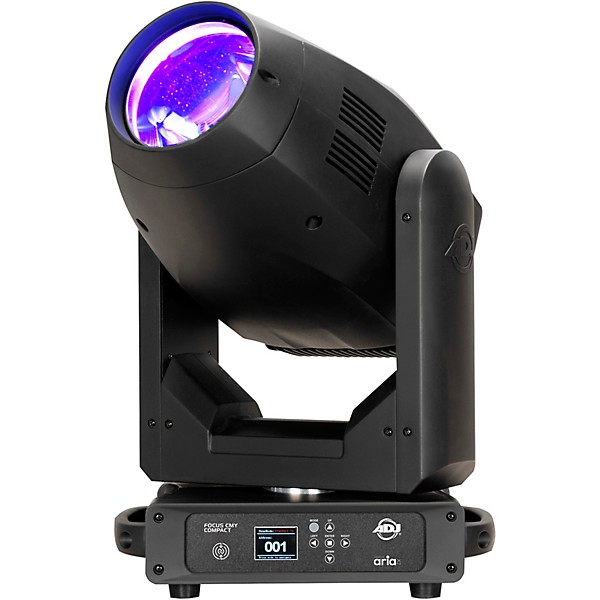

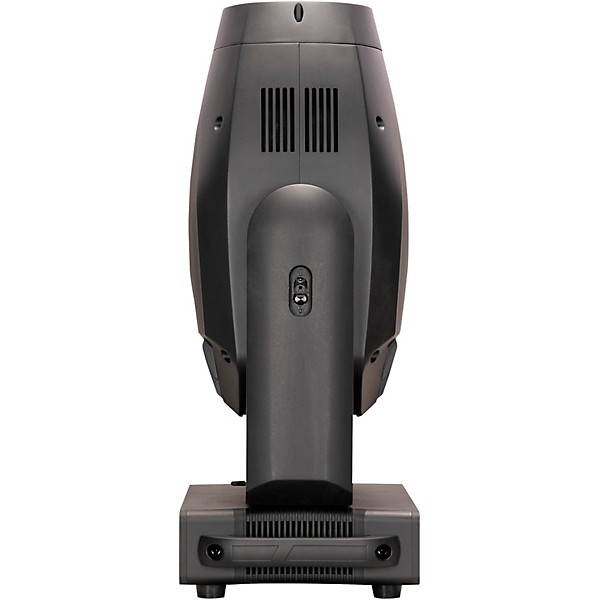

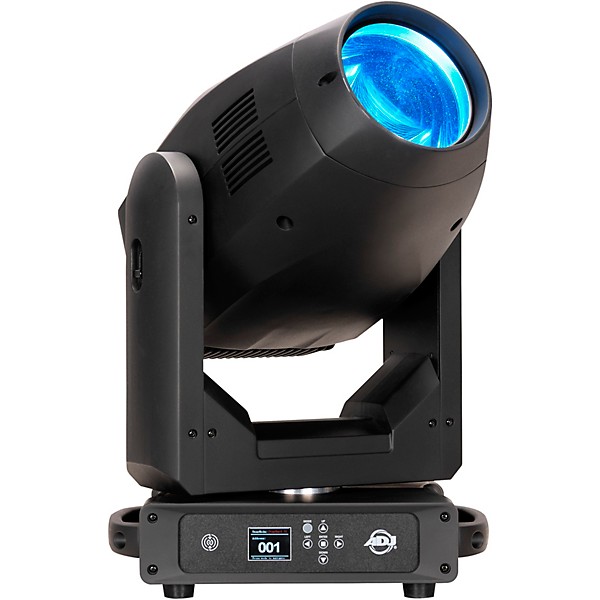

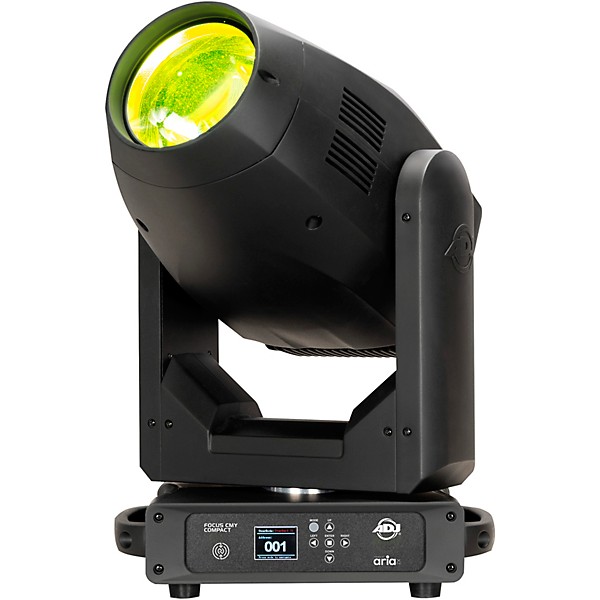

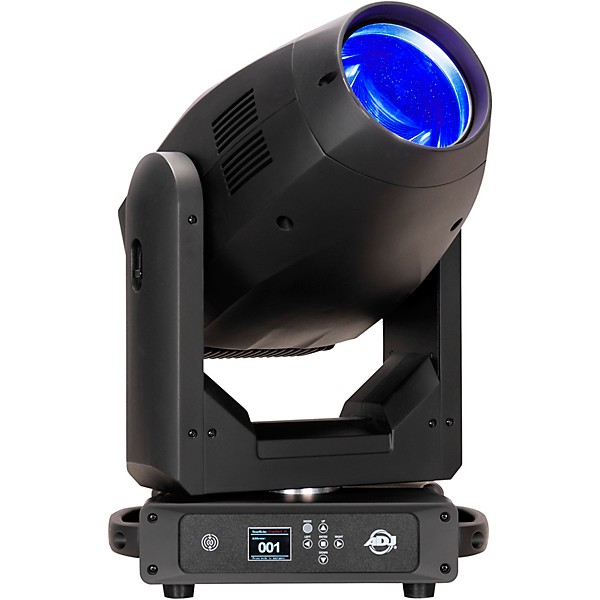

American DJ Focus CMY Compact LED Moving Head Spot

Big-stage versatility now comes in a streamlined footprint. The ADJ Focus CMY Compact pairs a powerful 400W LED engine with full CMY color mixing, variable CTO (3200K–8500K), dual GOBO wheels, rotating prisms and a wide 3°–52° motorized zoom to deliver beam, spot and wash capability from a single fixture. Producing up to 14,500 lumens, this moving head is engineered for concert touring, theatrical productions, houses of worship and corporate events where brightness, flexibility and fast setup matter. Despite its extensive feature set, the Focus CMY Compact weighs just 44.5 lb., delivering professional output sans the bulk typically associated with high-output hybrid fixtures.

Hybrid Optics: Beam, Spot and Wash in One

At the core of the Focus CMY Compact is a precision optical system designed to transition seamlessly between tight aerial beams and broad, immersive washes. The motorized zoom ranges from a narrow 3° beam to a generous 52° wash, while motorized focus maintains sharp projection at any distance. Two rotating prisms—a 6-facet circular and 6-facet linear—expand aerial effects and add layered motion, while dual frost filters (light and heavy) soften output for smooth wash coverage. Electronic dimming and strobe effects from 1–20 Hz provide dynamic tools suited for both high-energy shows and subtle theatrical cues.

Advanced Color and GOBO Effects

Creative flexibility begins with full CMY color mixing for smooth blending and precise tonal control, enhanced by variable CTO adjustment from 3200K to 8500K for warm-to-cool white balance. A dedicated color wheel with seven dichroic filters, including a High CRI option, supports accurate color rendering when visual clarity is critical. The fixture’s two GOBO wheels feature eight rotating indexable glass gobos and ten static designs, enabling rich textural layering and crisp pattern projection. Combined with prism overlays and frost diffusion, the Focus CMY Compact delivers a wide palette of looks, from intricate projection mapping to bold high-impact beam effects.

Professional Connectivity and Touring-Ready Design

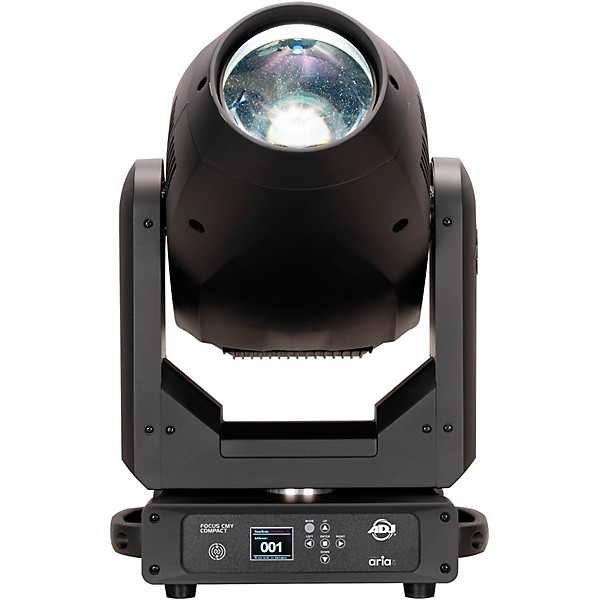

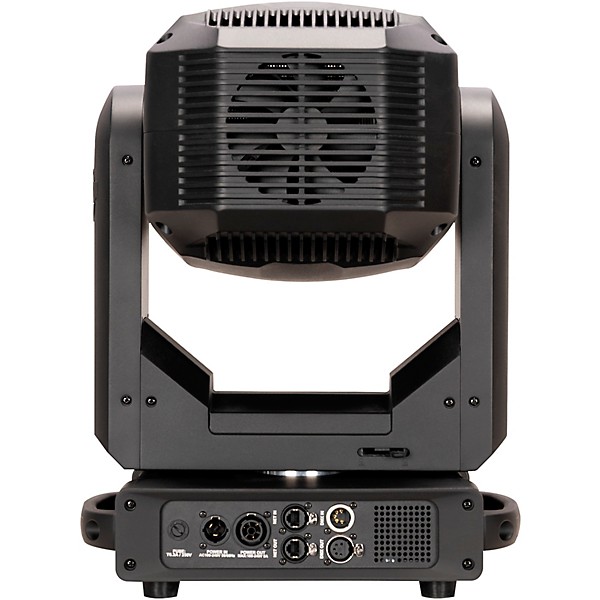

Built for modern lighting networks, the Focus CMY Compact supports DMX, RDM, Art-Net and sACN via 3- and 5-pin XLR and RJ45 connections, along with ADJ’s Aria X2 wireless management system for cable-free control. NFC configuration and a full-color 180° reversible LCD display with six-button touch control simplify addressing and system setup. Pan (540°/630° selectable) and tilt (270°) movement with 8- or 16-bit resolution ensure precise positioning, while integrated pan and tilt locks help protect the fixture during transport. Combining high output, refined optics and flexible connectivity in a portable form factor, the ADJ Focus CMY Compact is built to meet the demands of today’s lighting professionals.
