Description

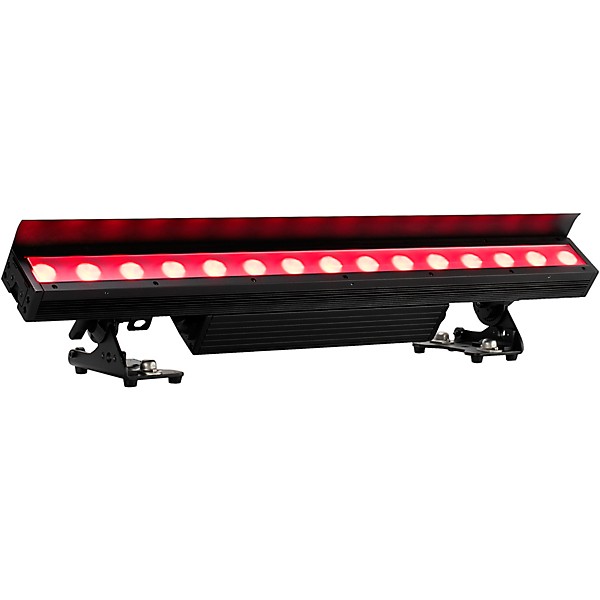

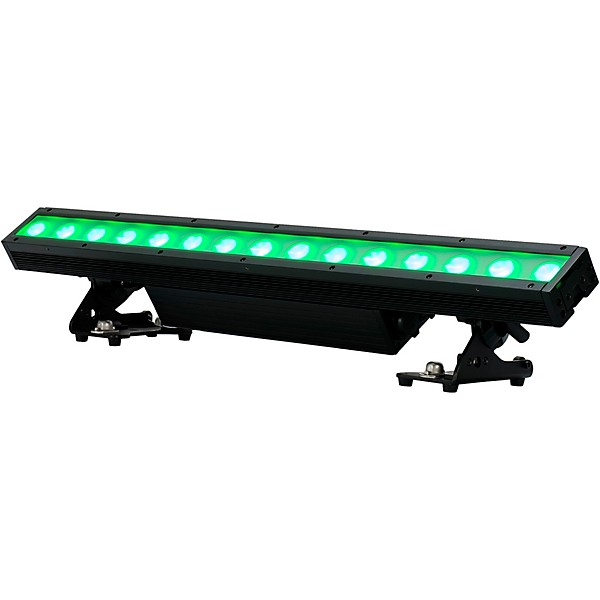

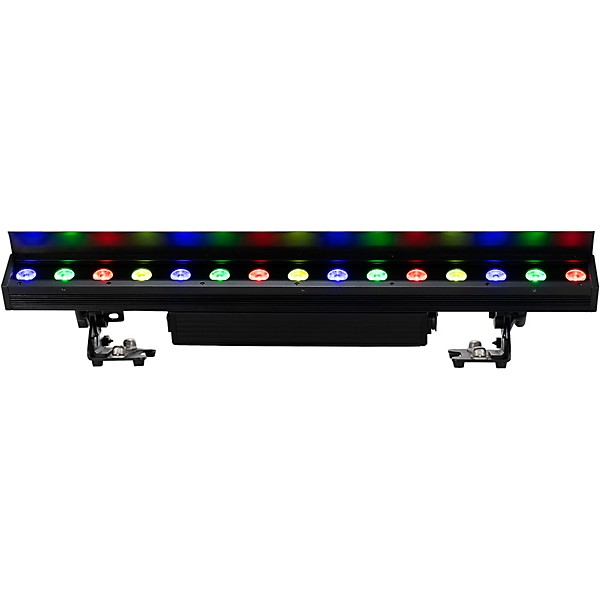

Boasting an all-metal construction and IP65 ‘weatherproof’ rating, the Encore LB15IP from American DJ is a linear LED wash made for outdoor use. It's specially designed for rental, event production and concert production applications, feauturing 15 x 20-Watt quad color RGBL (Red, Green, Blue and Lime) LEDs that offer a huge variety of color options. This includes white light with a variable color temperature of 2700K to 7000K, and a high CRI. Each LED can be singularly controlled with a tight beam angle of 11-degrees and the option to change the angle to 25-degrees with the supplied frost filter.
American DJ Encore LB15IP Outdoor Rated Linear Wash Fixture Black
American DJ Encore LB15IP Outdoor Rated Linear Wash Fixture Black
American DJ Encore LB15IP Outdoor Rated Linear Wash Fixture Black

Features

  • IP65 Rated: Ingress Protection against liquid, snow, dust and sand
  • All metal construction
  • IP Rated rubber covers protect

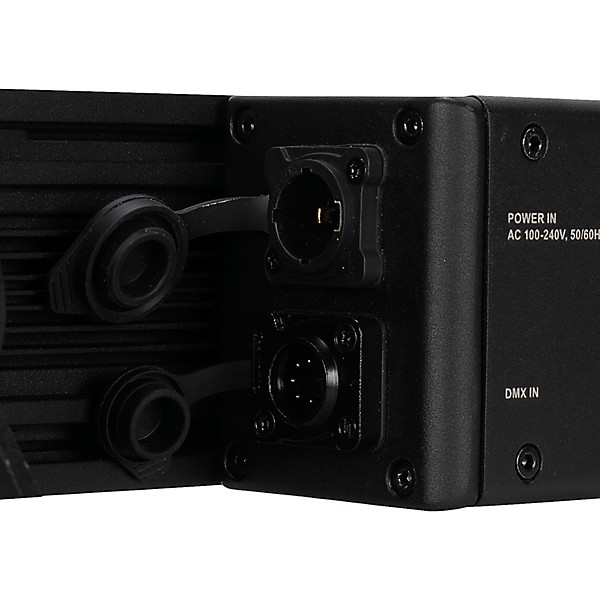

  • In/Out Locking Power connectors and IP rated 5-pin sockets
  • Locking, outdoor IN/Out Power connectors Data linkable via 5-pin DMX connections
    • Accessories
    • Glare Shield
    • 25-Degree Frost Filter
    • 2x Omega Brackets
    • Locking Outdoor Power Cord
    warning

    WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

    Specs

    Source
    • 15 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)
    Photometric Data
    • Beam angle: 11° (25˚ with diffusion filter attached)
    • CRI: 89.3
    • CRI R9: 69
    • Lumens: 5982
    • Linear Color Temperature Control (2700K to 7000K)
    • Preset Color Temperatures (2700K, 3200K, 4000K, 5600K, 6500K and 7000K)
    Effects
    • Individual Pixel Controllable
    • 16-Bit Fine Color Control (Red, Green, Blue & Lime)
    • 64 built-in Color Macros
    Control/Connections

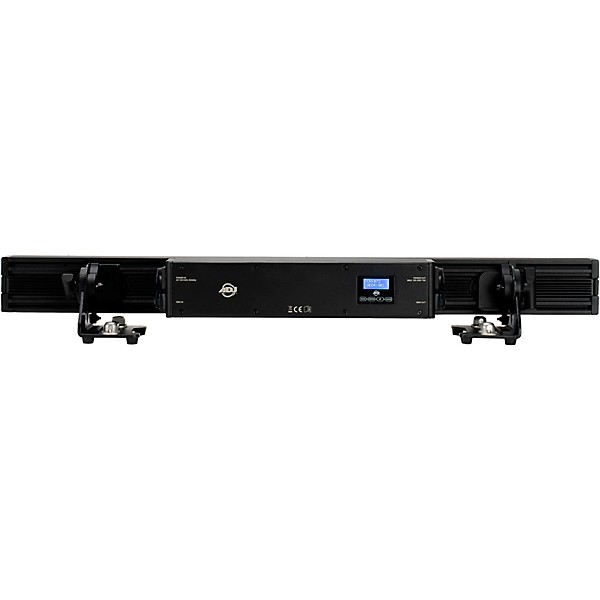

    • 4-button, DMX digital display on rear panel
    • 5 Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
    • Supports RDM (Remote Device Management)
    • With Wired Digital Communication Network
    • 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
    • 4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
    • Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)
    • Flicker Free operation (No flickering on camera)
    • LED pulse and strobe effect
    • Electronic Dimming: 0 - 100%
    • 10 DMX Modes: 4, 7, 8, 13, 16, 60, 63, 69, 72 & 120 channel
    • Adjustable fan modes
    • WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight)
    Electrical/Thermal
    • Multi-voltage operation: AC 100-240V, 47/63Hz
    • Daisy chain: 5 @ 120V, 10 @ 220V
    • Max power: 198W
    Size and Weight
    • Dimensions (LxWxH) 5.99” x 36.0” x 8.33” / 152x915x211.55mm
    • Weight: 19.5 lbs. / 8.85 kg.
    Ratings
    • cETLus Pending
    • IP65

    Warranty

    Warranty terms vary. Check with manufacturer for specific product warranty.
