Description

Reliable wireless control starts with hardware built for real-world demands. The ADJ Aria X2 TB is a professional-grade wireless DMX transceiver engineered to deliver stable single-universe transmission in both fixed installations and mobile production environments. Supporting Sub-GHz (906–924MHz US), 2.4GHz and Bluetooth 4.2 (BLE) connectivity, it provides flexible communication paths with configuration available through the Aria X2 BLE app or the onboard digital screen and rotary control for quick, intuitive setup.

Dual-Power Operation and Ample Connectivity

Dual-power operation supports continuous AC use or battery-powered deployment using two internal 18650 lithium cells, delivering up to 20 hours of runtime on a four-hour charge—well suited for temporary installs, festivals and remote setups where mains power is limited. With 5-pin XLR DMX input and output, IP65 locking power connectors, OTA update capability, CSMA interference mitigation and a rugged IP20 aluminum enclosure with M10/M12 threading and safety eyelet, the Aria X2 TB is built for dependable wireless-to-DMX or DMX-to-wireless performance wherever your lighting network requires secure, adaptable control.

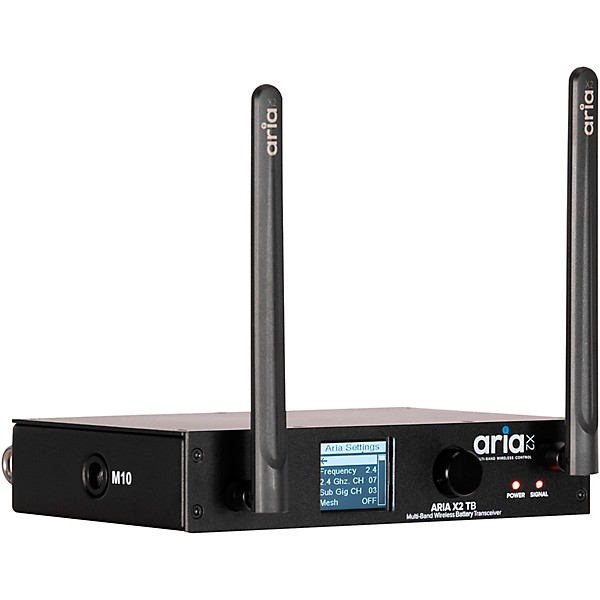

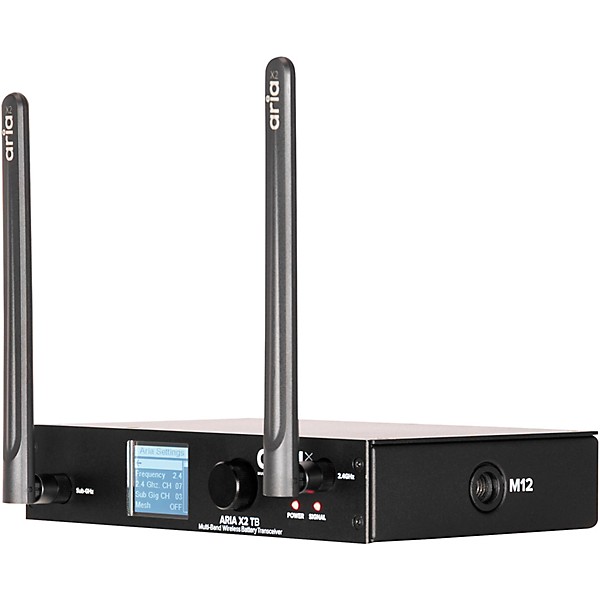

American DJ Aria X2 TB Wireless DMX Transceiver
American DJ Aria X2 TB Wireless DMX Transceiver
American DJ Aria X2 TB Wireless DMX Transceiver

Features

  • Wireless DMX freedom delivers stable control anywhere your rig needs
  • Dual power lets you switch between AC and battery for flexible setups
  • Up to 20 hours battery life supports long outdoor or mobile events
  • Front panel digital screen and rotary knob speed up configuration
  • Bluetooth and sub-GHz radio handle tough environments with clear signal
  • IP20 metal enclosure protects in demanding venues and field locations
  • 6.1” x 8.5” x 1.7” footprint saves space in racks or on walls
  • 2.7 lb. weight makes transport and mounting fast and easy
warning

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specs

General
  • Product type: Wireless DMX transceiver
  • DMX universes: Single DMX universe
Wireless
  • Wireless bands: Sub-GHz, 2.4GHz and Bluetooth 4.2 BLE
  • Radio module: Aria X2
  • Wireless protocols: DMX, proprietary 802.15.4, Aria X2 serial protocol
  • Future protocols: RDM and Aria X2 mesh protocol
  • OTA updates: Yes
  • Interference mitigation: CSMA and adaptive frequency hopping roadmap
RF Specifications
  • Bluetooth frequency range: 2402–2480MHz
  • Zigbee frequency range: 2405–2480MHz EU
  • Sub-GHz frequency range: 906–924MHz US
Control
  • Configuration: Aria X2 BLE app or front panel

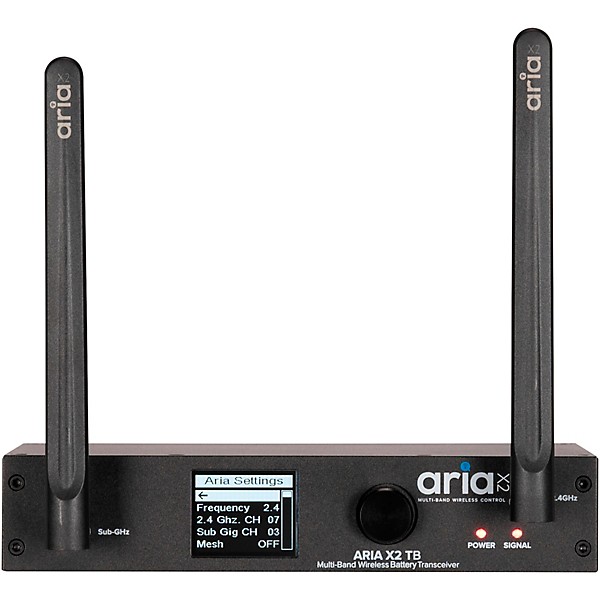

  • Front panel: Digital screen and rotary knob
Connections
  • Antenna: 5G JT SMA

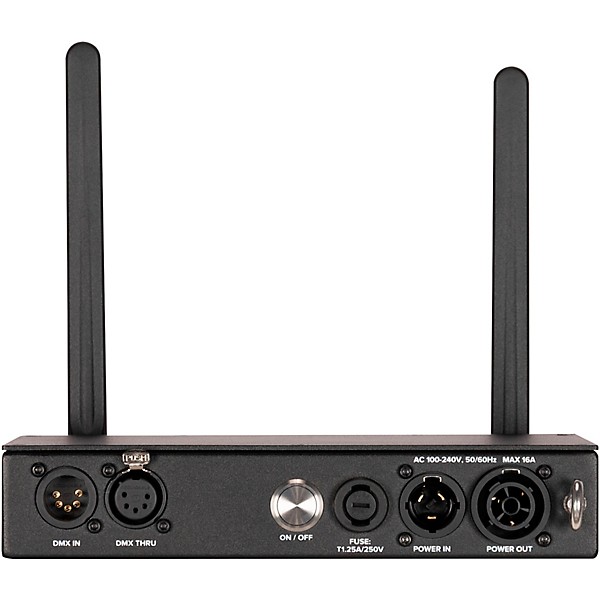

  • DMX: 5-pin XLR input and output
  • Power: IP65 locking power input and output
Power
  • Input voltage: 100–240V 50/60Hz
  • Battery: 2 × 18650 lithium 3.6V 2600mAh 9.36Wh
  • Power consumption: 2W
  • Fuse: T1.25A 250V 5 × 20 mm
Construction
  • Enclosure: Aluminum and metal
  • IP rating: IP20

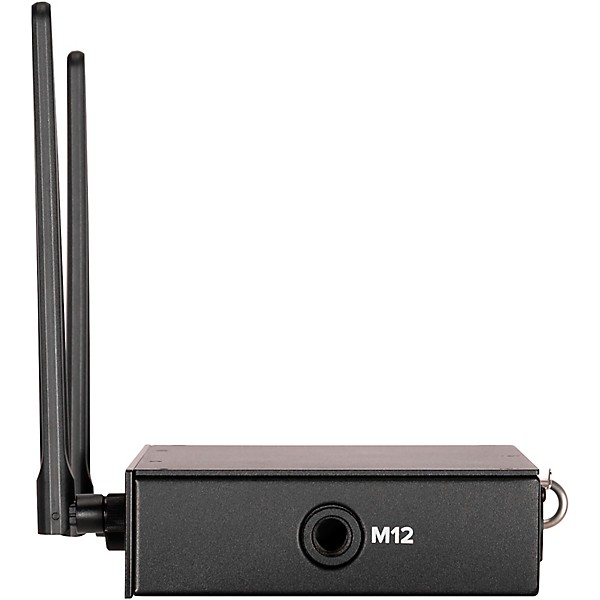

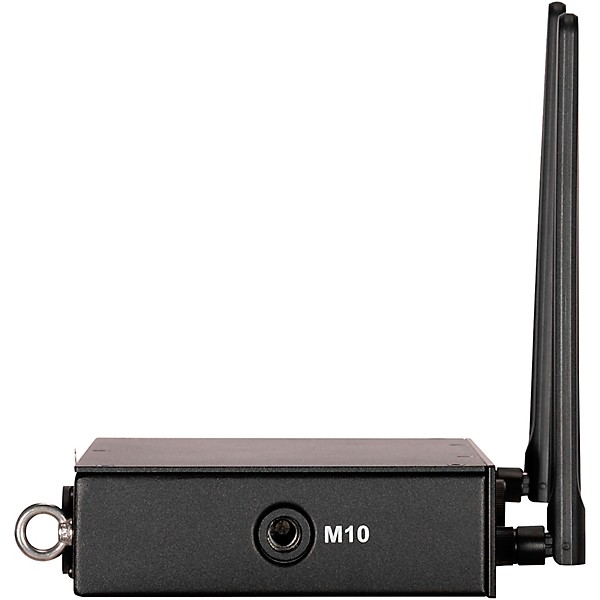

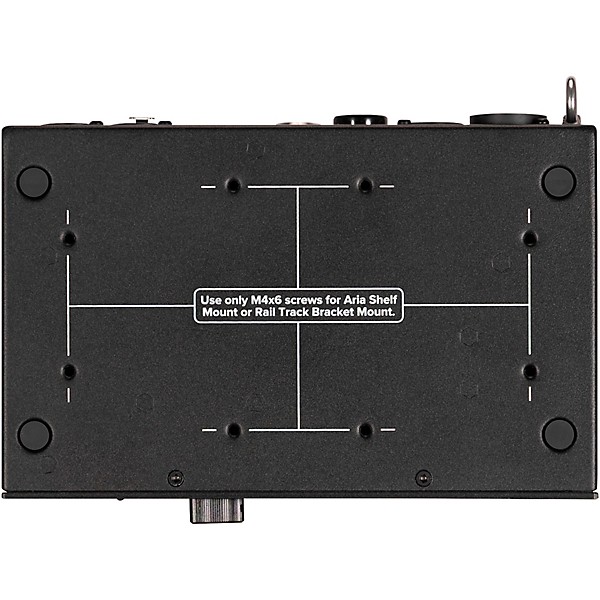

  • Mounting: M10 and M12 threads and safety eyelet
Environmental
  • Max ambient temperature: 113°F
  • Max humidity: Less than 75%
  • Storage temperature: 77°F
Dimensions
  • Dimensions: 6.1" × 8.5" × 1.7"
  • Weight: 2.7 lb.
Certifications
  • Standards: EN IEC 62311, EN 50665, EN IEC 62368-1, ETSI EN 301 489 series, EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2 and EN 300 220 series

Warranty

Warranty terms vary. Check with manufacturer for specific product warranty.
