Description

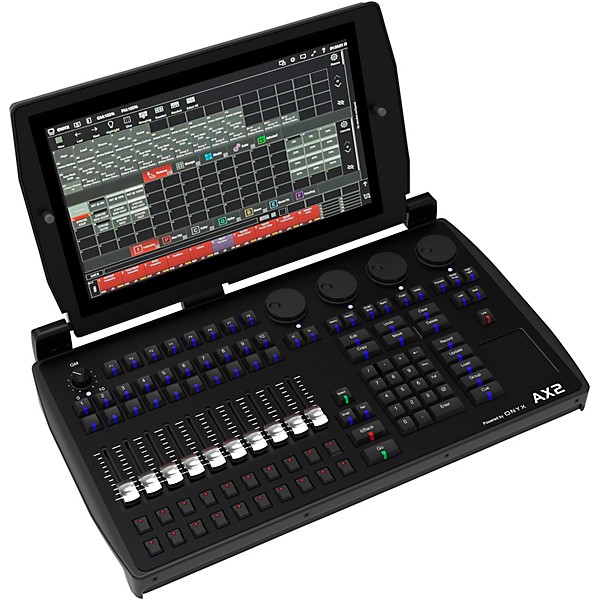

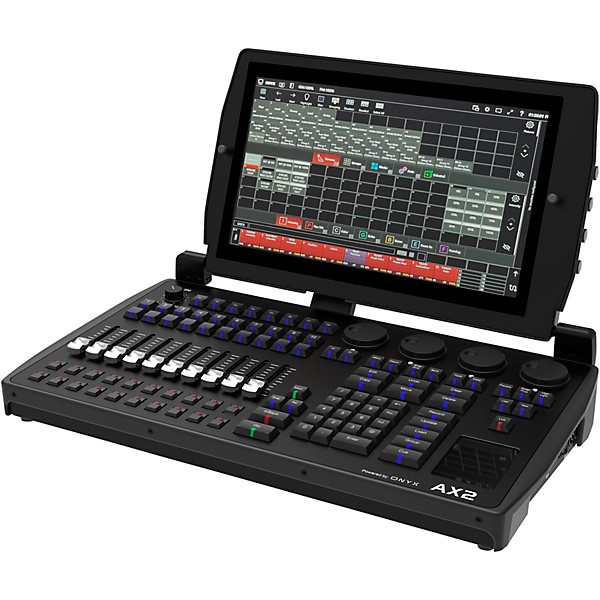

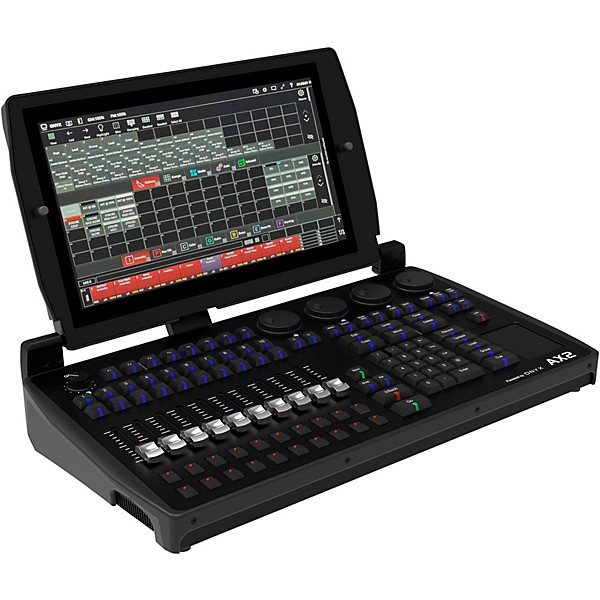

Serious processing power meets compact control in the ADJ AX2, a fully integrated lighting console built on the advanced ONYX platform from Obsidian Control Systems. Featuring a 15.6” Full HD multi-touch display, an assistive 3.5” RGB touchscreen, eight assignable encoders, 10 playback faders with four function buttons each and a dedicated grand master, it delivers fast, tactile command of complex shows. Inside, an Intel i5 Hexa-Core processor, 16GB DDR4 RAM and a high-speed 500GB NVMe SSD enable rapid boot times and smooth handling of up to 32 universes directly from the console with no external processing required. This tightly integrated hardware foundation sets the stage for the AX2’s powerful ONYX processing environment.

ONYX Platform Power With Integrated DYLOS Engine

Built on the ONYX lighting control platform, the AX2 provides the speed, scalability and modern workflow trusted across touring, broadcast and installed environments. Integrated processing supports up to 32 universes internally, simplifying system architecture and reducing reliance on external nodes. The onboard DYLOS media engine adds five zones of pixel control, giving designers powerful pixel mapping and visual playback tools directly from the console surface. Together, ONYX and DYLOS create a unified control environment capable of handling demanding, pixel-heavy productions.

Comprehensive Connectivity in a Compact Professional Console

With four 5-pin DMX/RDM ports, dual Gigabit network connections for Art-Net, sACN and ONYX X-Net, plus SMPTE, MIDI and USB connectivity, the AX2 integrates cleanly into modern lighting and media networks. Support for two external 4K touch displays expands workspace when productions scale, while the compact 21.3” footprint and sub-20 lb. chassis keep the console portable for touring and fly dates. Engineered for large-scale events, worship productions, broadcast environments and mobile rigs, the AX2 delivers delivers flagship ONYX performance in a streamlined professional form factor.

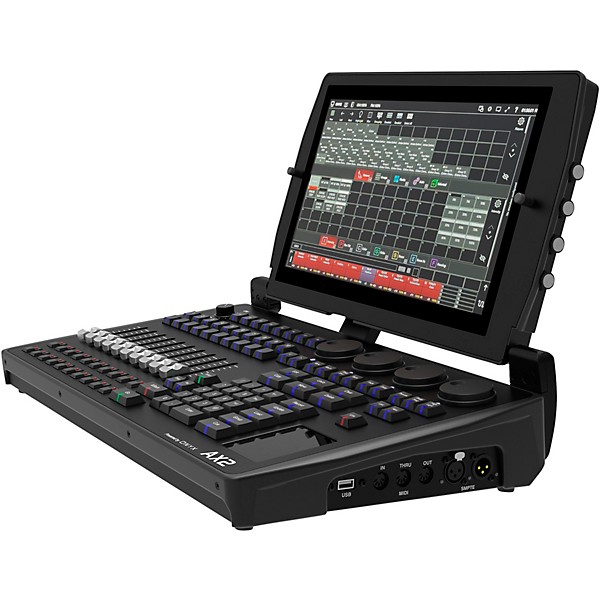

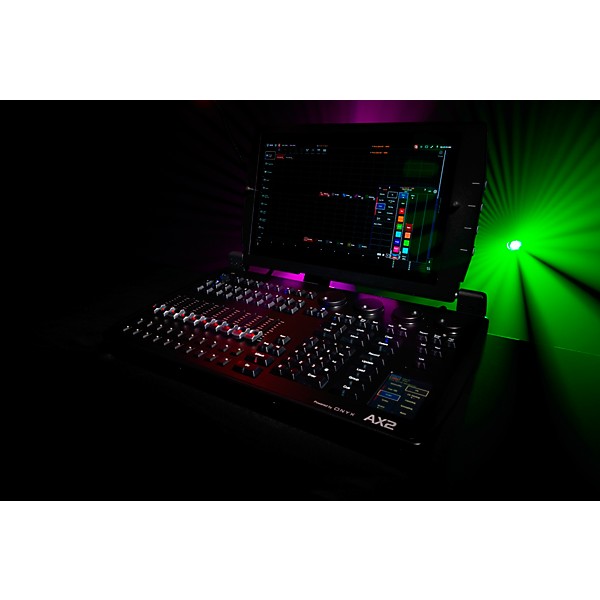

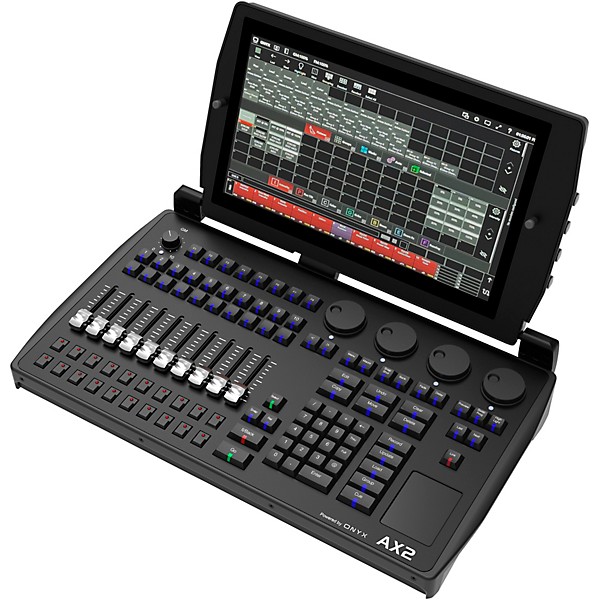

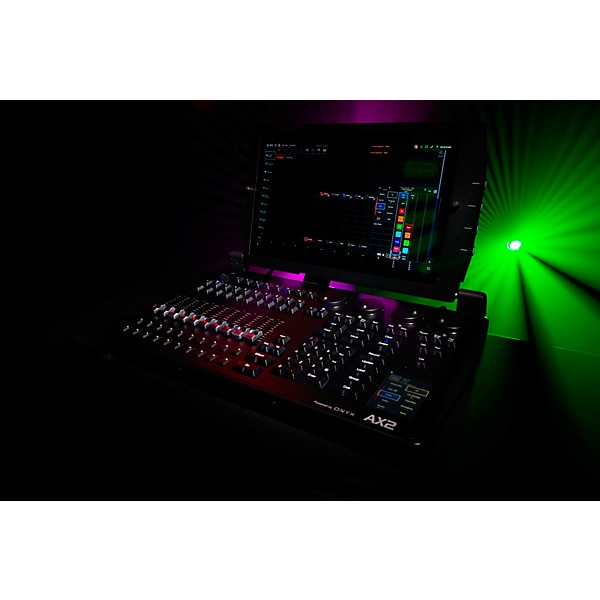

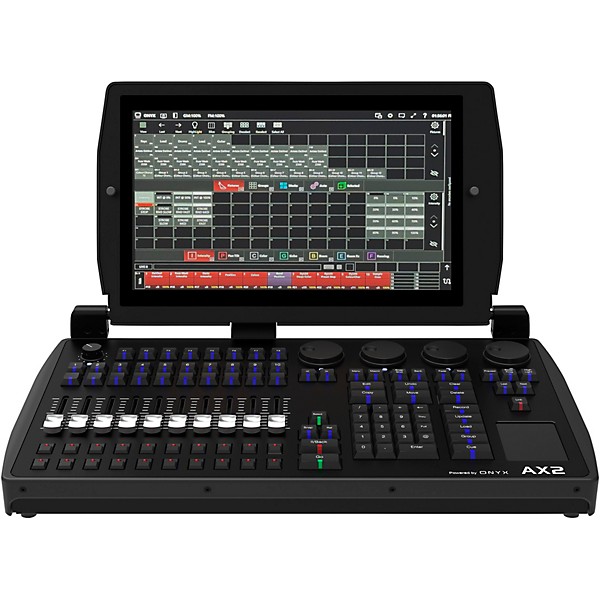

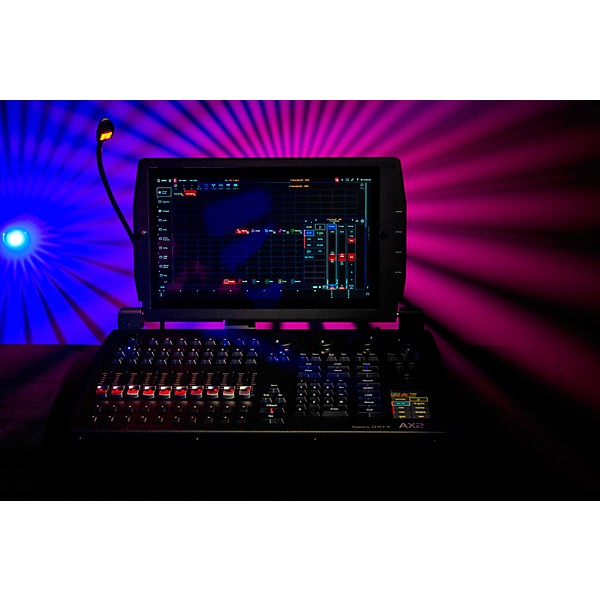

American DJ AX2 Lighting Control Console
American DJ AX2 Lighting Control Console
American DJ AX2 Lighting Control Console

Features

  • Integrated, precise lighting control handles large shows with fast, direct access
  • 15.6” Full HD touchscreen speeds up cue selection and edits
  • 32 universe processing powers complex rigs without external hardware
  • 10 playback faders with assignable buttons streamline live transitions
  • Eight parameter encoders adjust effects, timing and fixture groups instantly
  • Mini touchscreen manages effect parameters and global timings
  • Dual Gigabit ports connect Art-Net, sACN and ONYX X-Net networks
  • DMX, MIDI, and SMPTE inputs sync with music and timecode cues
  • Supports two external 4K touch monitors for expanded live control
  • Ergonomic layout fits 21.3” x 11.9” x 4.8” spaces for fast setup
warning

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specs

General
  • Product type: Lighting control console
  • Control platform: ONYX by Obsidian Control Systems
  • Integrated universes: 32 universes
  • Playbacks: 10 playback faders
  • Encoders: 8 encoders
Display
  • Main display: 15.6" Full HD multi-touch display 1920 × 1080
  • External display support: 2 × DisplayPort up to 4K
  • Internal display: 3.5" RGB touchscreen
Control Surface
  • Playback faders: 10 × 60 mm faders with 4 assignable buttons each
  • Multi-function keys: 8 customizable keys
  • Rotary encoders: 4 digital rotary encoders with push and LED status
  • Screen encoders: 4 screen-mounted digital rotary encoders with push
  • Grand master: Rotary grand master fader
  • Keypad: Full numerical keypad with command keys
Hardware
  • Processor: Intel i5 hexa-core CPU
  • Memory: 16GB DDR4 RAM
  • Storage: 500GB NVMe M.2 drive
  • Graphics: Integrated GPU
  • Operating system: Windows 11 IoT Embedded

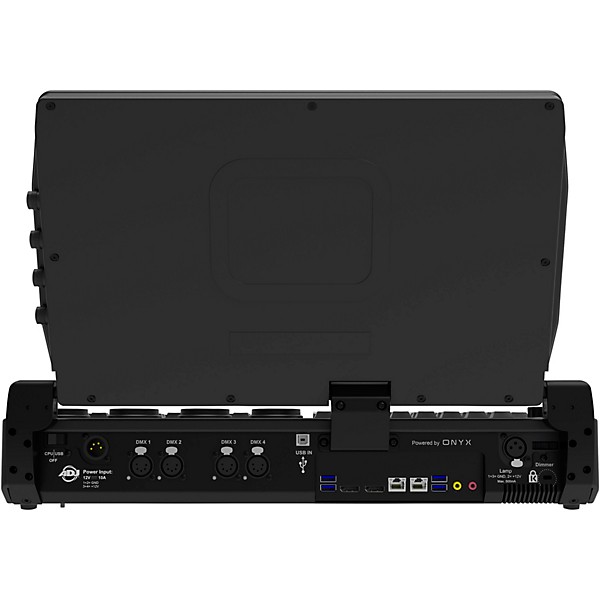

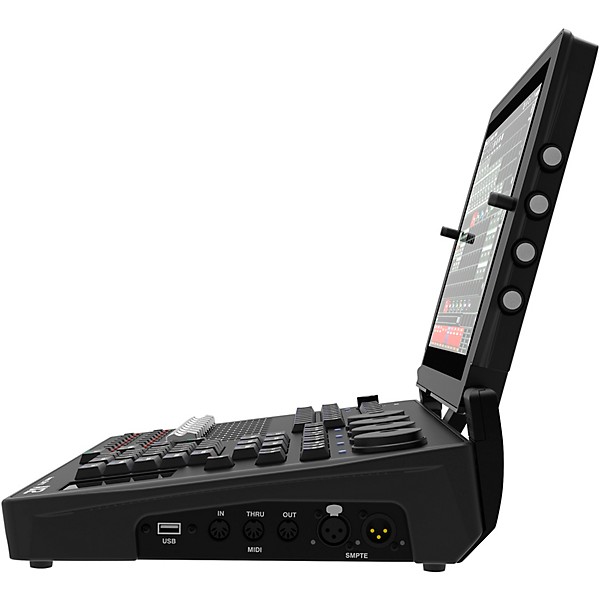

Connectivity
  • DMX: 4 × 5-pin locking XLR DMX/RDM in and out
  • Network: 2 × Gigabit Ethernet for Art-Net, sACN and ONYX X-Net
  • USB: 4 × USB 3.0 and 1 × USB 2.0
  • Audio: 2 × 3.5 mm audio out and mic in
  • MIDI: 5-pin DIN MIDI in, out and thru
  • SMPTE: 3-pin XLR SMPTE timecode in and out
  • Desk lamp: 12V XLR connection
  • Power input: 4-pin XLR 12V DC
Electrical
  • Input voltage: 100–240V 50/60Hz
  • Max input current: 3A
  • Output: 12V DC 11A 132W max
Dimensions
  • Dimensions: 11.9" × 21.3" × 4.8"
  • Weight: 19.8 lb.
Included Accessories

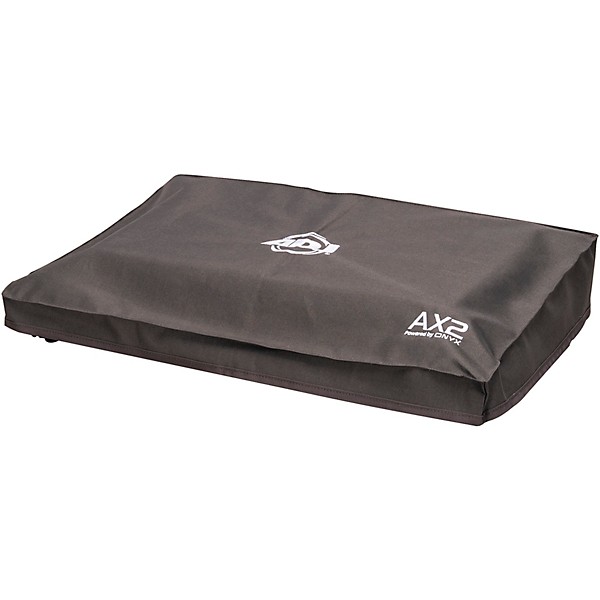

  • Accessories: RGB LED desk lamp, dust cover, USB cable, external 12V 11A PSU, 1.5m IEC power cable and USB recovery flash drive

Warranty

Warranty terms vary. Check with manufacturer for specific product warranty.
