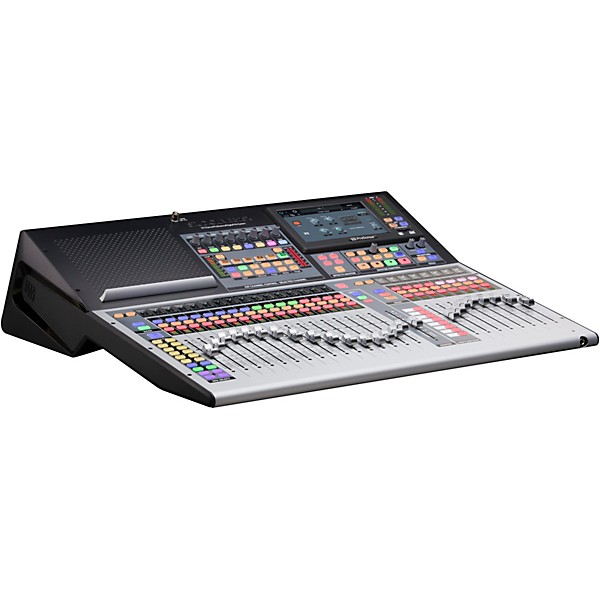

PreSonus StudioLive 32SX 32-Channel Mixer with 25 Motorized Faders and 64x64 USB Interface

Item #:
1500000269573   POS #:115246845
Product Description:

This is the StudioLive 32SX, a 32-channel small-format digital mixer packed into a 25-fader chassis. The split-fader workflow options let you manage 32 input channels in two fader layers, while still providing access to your mix outputs on eight additional faders. And thanks to AVB, it’s easily expandable—readily networking with EarMix 16M personal...  Click To Read More About This Product

In Stock & Ready To Ship
Most orders placed before noon ET ship same day (except weekends and holidays)

This oversized item has special shipping requirements

Restrictions

  • Protect Your Gear
  • Free Shipping
  • International Shipping
Have Questions? 866-498-7882
Call our experts for product info and phone-only specials.
Gear returned in mint condition. If you're looking for a virtually new instrument in possibly less-than-perfect packaging, this is a great value.
  • Includes 45-Day, No-Hassle Returns
  • Includes full manufacturer's warranty
Gear returned in great condition, with only minor signs of use, such as slight scuffs or pick marks. It looks and plays like new and may be considered an equivalent to display units found in retail stores.
  • Includes 45-Day, No-Hassle Returns
  • Includes full manufacturer's warranty
Price: $2,799.95
Guitar Center Gear Card
$59/month  for 48 months*

0% Interest for 48 months* + $139 back in rewards. 48 equal monthly payments required. Valid through 10/30/2019
Get DetailsAbout Special Financing Offers Opens in new window

    Warranty Options
Add to List
Ship to Store: Available for Pick Up: 3-5 business days
Fairfax, VA
View More Stores For Availability Store Information


,
SUN:11AM-7PM
MON-FRI:10AM-9PM
SAT:10AM-8PM
Overview

This is the StudioLive 32SX, a 32-channel small-format digital mixer packed into a 25-fader chassis. The split-fader workflow options let you manage 32 input channels in two fader layers, while still providing access to your mix outputs on eight additional faders. And thanks to AVB, it’s easily expandable—readily networking with EarMix 16M personal monitor mixers for customized onstage mixes and PreSonus NSB-series stage boxes for remote inputs.

The 32SX’s 16 FlexMixes can be individually configured to function as aux buses, subgroups, or matrix mixes—your routing options will border on limitless. The Fat Channel processing section employs expandable, plug-in options with vintage EQ and classic compression options on every input channel and output bus.

The 32SX also ships with PreSonus Capture® recording software, which can be run directly on your mixer or Windows or Mac computer. Record all 32 channels plus a stereo mix of your choosing via USB, to an SD Card, or both for the ultimate redundant live recording rig.

Few designs in high-tech musical equipment manufacture have had as enduring a presence as Presonus’ StudioLive mixers. Since their introduction in 2009 with a FireWire interface built in along with a rich bundled software suite, every new iteration of its design is anticipated and thus far, universally praised. The introduction of the 2019 version has the industry’s attention. It should have yours too.Since their introduction in 2009 with a FireWire interface built in along with a rich bundled software suite, every new iteration of its design is anticipated and thus far, universally praised. The introduction of the 2019 version has the industry’s attention. It should have yours too.


Features

  • Portable, powerful, and flexible digital console for installed sound, mobile applications, and recording
  • Dual-core FLEX DSP Engine powers 286 simultaneous processors, 26 mix buses, and 40 mixing channels
  • Fully recallable, 40-input, 32-channel digital mixing console
  • Built-in AVB networking to create a complete ecosystem with PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, and SW5E AVB switch
  • Built-in 128-channel (64x64) USB interface—the most of any digital mixer on the market
  • Onboard multitrack SD Card recorder with true Virtual Soundcheck
  • Expandable plug-in processing with vintage EQ and compression options on every input channel and output bus
  • 16 FlexMixes (aux mixes, subgroups, or matrix mixes)
  • 32 mic/line inputs with recallable XMAX preamps
  • 25 touch-sensitive, motorized faders
  • All new scene management, with scenes organized into projects with scene lock and channel safe
  • Password protected user profiles enable restricting access to specific features
  • FLEX FX multieffects processor with 4 slots to load reverb emulations and delays with 4 dedicated effects buses
  • Channel scribble strips and input metering
  • DAW Control (Advanced Studio One control integration/MCU emulation for Logic/HUI emulation for Pro Tools)
  • Complete solution: Includes UC Surface mix control software for macOS, Windows, Android™, and iPad®; Capture™ live-recording software and Studio One® Artist DAW for macOS and Windows; compatible with free QMix-UC® personal monitoring control for iPhone®, and Android
Specifications
Format
  • Analog/digital: Analog
  • Number of channels: 32
  • Busses/groups: 26
  • Aux sends: 16
Inputs
  • Total inputs: 40
  • Mic preamps: 32
  • XLR/TRS combo jacks: 32
  • XLR only jacks: 0
  • 1/4" only jacks: 0
  • S/PDIF in: No
  • ADAT/optical in: No
  • RCA in: 1 (pair)
  • USB: 2.0 Type B
Outputs
  • Total outputs: 15 (12 FLEX)
  • XLR out: 6 FLEX, 2 main, 1 mono
  • Sub Group Out: 4 TRS
  • ADAT/optical out: 0
  • RCA out: 1 (pair)
  • AES / EBU: XLR Male
Other Connectivity
  • Connections: USB, 2.0
  • MIDI I/O: N/A
  • Headphone output(s): 1
  • Bluetooth 4.1
  • AVB: Locking Ethernet
  • I/O expansion: No
Onboard effects
  • Compression: Yes
  • Reverb: Yes
  • Delay: Yes
  • Chorus/flange: Yes
Equalization
  • Type: Many plugins
  • EQ bands: Various types
  • Master graphic: No
Other
  • Width: 25.98"
  • Height: 6.51"
  • Depth: 22.97"
  • Weight: 30 lb.
  • Automation: Through software
  • Fader type: 25 Touch-sensitive
  • Motorized faders: Yes
  • Bundled software: Yes
Pro Coverage
Manufacturer's Warranty
One year parts and labor warranty.
