Description

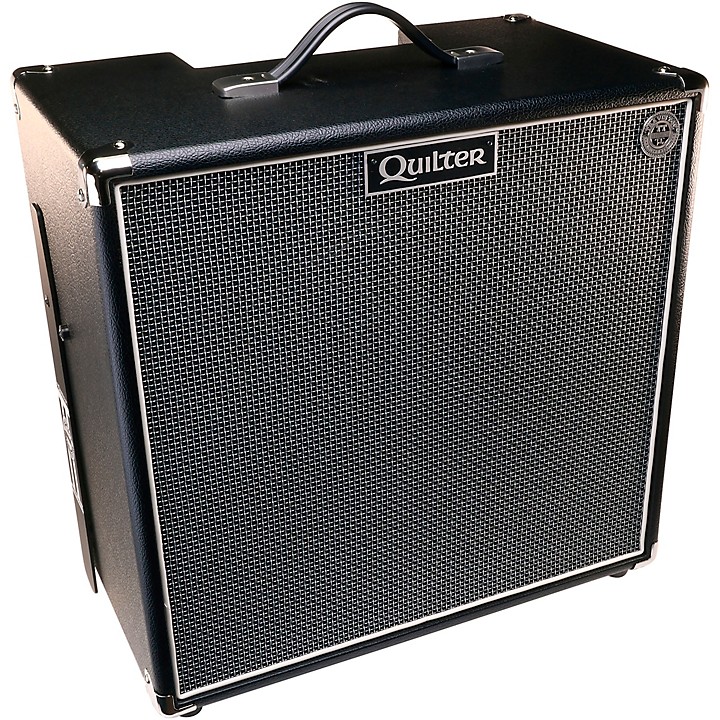

The Travis Toy 15 is the ultimate 15 inch steel guitar amplifier modular combo. It is powered by a remove-able Tone Block 202 head for isolation room work, and featuring tilt back legs for live stage use. Developed in conjunction with Quilter and Eminence, it represents the culmination of Travis' lifetime effort to build a legacy of great tone, honest value, and effortless performance for the Steel Guitarist.

The Travis Toy 15, utilizes the custom signature Eminence Double-T 15 speaker and is intended to be the best possible amplification system for today's modern steel guitarist. Features include laser engraved tilt back legs, a signature Double T 15 speaker, a pre-configured and tested Tone Block 202 and a custom artist badge.
Features
  • Aluminum Amplifier Retention Plate
  • Laser Engraved Travis Toy 12 Tiltback legs pre-installed
  • Ballistic Nylon Cover
  • Right-Angle Speaker Cable
  • Travis Toy 12 Product Badge
Specifications
  • Power Amplification: Tone Block 202 Amplifier
  • -Power Output: 0 to 200 watts, 4-8 ohms
  • -AC Power Req.: 100-240Vac, 50-60Hz, 250W max
  • -Input Connections: 1/4" mono, 2meg impedance.
  • -Effects Loop: 1V full scale, 1K Send impedance, 47K Return impedance.
  • -Direct Out (Rear): XLR-M, 300mv full scale, balanced, ground lifted, 10K min.
  • -Signal Out (Front): TRS, switchable, Line Out pre-Master +4dB balanced, or Headphone post-Master.
  • -Speaker 1 Output: 8 ohms, 200 W minimum recommended rating
  • -Speaker 2 Output: 4 ohms, 200 W minimum recommended rating
  • -Dimensions: 8.5" x 7.25" x 3.25" (21.6cm x 18.4cm x 8.3cm)
  • -Weight: 3 lbs (1.5 kg)
  • Speaker Eminence: Travis Toy Double T 15
  • Nominal Basket Diameter: 15", 381 mm
  • Nominal Impedance: * 4 Ω
  • -Power Rating: ** 300 W
  • -Resonance (Fs) 56 Hz
  • -Usable Frequency Range: 50 Hz - 3.3 kHz
  • -Sensitivity: *** 101 dB
  • -DC Resistance:  (Re) 3.18 Ω
  • -Qts: 0.33
  • -Magnet Weight: 11 oz.
  • -Gap Height:  0.36", 9.1 mm
  • -Voice Coil Diameter:  3", 76 mm
  • Dimensions: H 19 inches (48.3 cm) x W 19.75 inches (50.2 cm) x D 12 inches (30.5 cm)
  • Weight:
  • -Shipping:  37.8 Pounds (17.15KG)
  • -Carton Size:  24" (61 cm) x 23" (58.4 cm) x 16" (40.6 cm)
