The NUX Reissue Series Analog Delay pedal is a premium analog effect that delivers the sought-after delay tones of the '80s. Featuring 100% analog circuitry with vintage 3205 and 3102 BBD chips, the Reissue Series Analog Delay conjures the warm, rich echoes that defined a generation. With delay times up to 600ms and infinite repeats, this pedal saturates your tone with lush, cascading layers of sound.

Iconic BBD Chips Provide Authentic Analog Tone

At the heart of the Reissue Series Analog Delay are iconic BBD chips that were ubiquitous in analog delays of the '80s. These chips are responsible for the warm, resonant delay tones reminiscent of that era. With shorter delay times, the BBD chips produce a pronounced "bucket brigade" effect as each repeat subtly changes in tone and modulation. At longer delay times, the repeats cascade into an ambient wash of sound that lingers and swells.

Simple, Intuitive Controls for Expressive Soundscapes

Despite its sophisticated analog circuitry, the Reissue Series Analog Delay features an incredibly simple control set. The Delay knob dials in delay times up to 600ms, while the Repeat knob controls the number of delay repeats. The Blend knob lets you mix the effected signal with your dry signal, and the optional Tap Tempo footswitch provides on-the-fly delay time control for rhythmic echoes. This straightforward interface makes it easy to craft ambient soundscapes or shorter slap-back echoes.

Rugged and Portable for Gigging Musicians

The Reissue Series Analog Delay is built to handle the rigors of live performance. Its die-cast aluminum casing is lightweight yet durable, and the LED indicator provides visibility on dark stages. Powered by a 9V battery or optional power supply, this pedal gives you premium analog tone anywhere your music takes you.

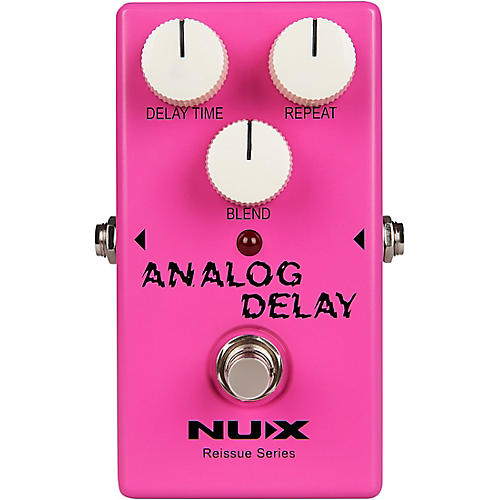

NUX Reissue Series Analog Delay With BBD Chipset Effects Pedal Pink
NUX Reissue Series Analog Delay With BBD Chipset Effects Pedal Pink
NUX Reissue Series Analog Delay With BBD Chipset Effects Pedal Pink

collapse expand iconSpecs

  • Current draw: 20 mA
  • Input impedance: 1M ohms
  • Output impedance: 10k ohms
  • Power: 9V battery or external AC adaptor delivering 9V DC regulated minimum 300mA
