collapse expand iconDescription

The TOD-9 True Tube Overdrive effects pedal takes Maxon’s classic OD-9 circuit and adds a tube gain stage at the front end to create an ultracompact, tube-driven tone machine. The Maxon OD-9 circuit has achieved a legendary status among tone connoisseurs as the ultimate tool for driving a tube amp. Yet sometimes you need that little "something extra," and the TOD-9 provides this missing ingredient in spades. The TOD-9 features a mil-spec 5703WB JAN Raytheon sub-miniature vacuum tube complete with its own separate Gain control (Tube knob). This tube stage is positioned at the front of the audio path, driving the OD-9 circuit.

With the Tube knob at zero, the TOD-9 sounds exactly like an OD-9. Engage this control and experience the unmistakable magic of tube tone—a big, fat natural-sounding bottom end and the characteristic tube "sag" that makes lead lines sing. With the Drive knob down, the Tube knob will add warmth and dimension to your tone. With Drive knob up, you’ll get all this extra girth as well as increased saturation as the tube drives the clipping stage of the pedal. If big, warm tube tones are your bag, the TOD-9 offers them up in a familiar package that continues to withstand the tests of time. The TOD-9 provides all the classic tonality of the Maxon OD-9 with the ability to blend in tube-generated warmth and additional saturation.

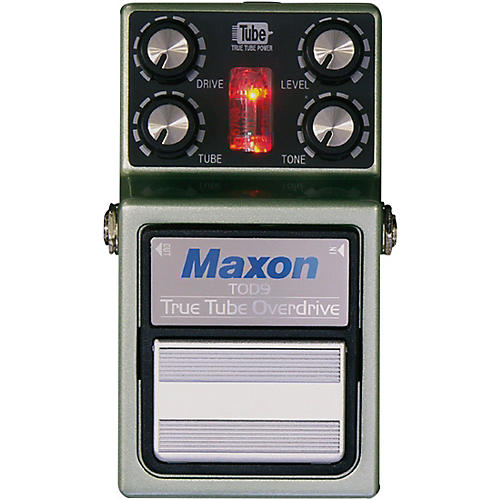

Maxon TOD-9 True Tube Overdrive Effects Pedal Metallic Copper

collapse expand iconFeatures

  • OD-9 circuit with added tube stage
  • Employs mil-spec sub-miniature vacuum tube
  • Tube control fills out lows and low mids
  • Internal voltage regulator runs 30 Volts to tube
  • Heater In-rush current control warms tube upon power-up
  • True Bypass Switching

collapse expand iconSpecs

  • Input Impedance: 500K Ohms
  • Output Impedance: 10K Ohms or less
  • Maximum Gain: 48.5 dB
  • Equivalent Input Noise: -106.8 dB or less (IHF-A)
  • Controls: TUBE, DRIVE, TONE, LEVEL
  • Switch: BYPASS/EFFECT (mechanical TBS)
  • Indicator: BYPASS/EFFECT LED
  • Internal Circuit Voltage: 30 VDC (DC-DC Converter)
  • Current Consumption: 260 mA / 9 VDC
  • Dimensions: 2.9" W x 4.9" D x 2.13" H
  • Weight (excluding AC adaptor): 19.75 oz.
  • Power Supply: Maxon AC2009 (no battery operation)
  • Accessory: Maxon AC2009

collapse expand iconWarranty

3 year warranty on all Maxon pedals.
