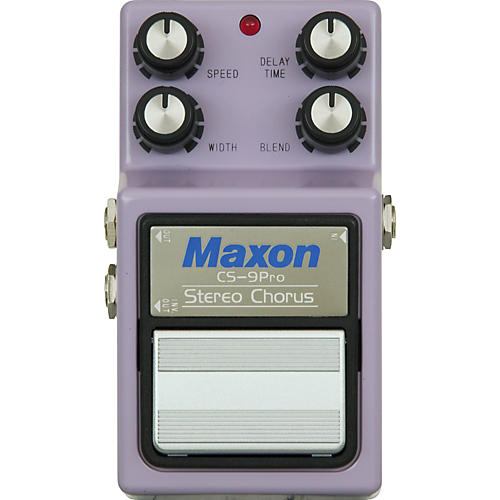

The CS-9 Stereo Chorus Pro Pedal offers dramatic improvements over the original CS-9 from Maxon. In addition to Rate and Depth controls, the CS-9 Pro effects pedal features Delay Time and Dry Blend controls for limitless tonal options. Improved construction including through-hole, glass reinforced epoxy PCB's, snap-in PCB connectors, and true bypass switching guarantee trouble-free performance while the combination of one Panasonic MN3207 BBD IC and one Signetics NE570 compander provides warm yet crystal-clear chorus with zero clock noise.
The CS-9 Pro stereo chorus pedal offers an entire range of classic and unique new chorusing effects. With circuitry based around the Panasonic MN3207 (low voltage BBD IC, now out of production), the CS-9 Pro's Rate and Depth control can conjure every chorus texture from subtle to severe. The custom-tuned oscillator circuit can provide enough speed to authentically imitate rotary speaker cabinets and just the right amount of modulation for a lush vibrato that won't leave you feeling seasick.
The real secret behind the CS-9 Pro stompbox's amazing tone lies in the Delay Time control. The Delay Time control exhibits an inverse relation between the delay time and the frequency shift of the chorus - as the delay time increases, the frequency that is shifted decreases. This inverse relation creates "double level" and "cancellation" peaks and notches at particular frequency points to create an amazingly realistic, three-dimensional chorus effect. In addition, the Delay Time control is interactive with the Rate and Depth controls, so that if you increase the Depth, the Delay Time range increases, and if you increase the Speed, the Delay Time changes faster.
For even more versatility, the pedal features a front-mounted Dry Blend control that determines the level of effected signal vs. dry signal, making the CS-9 Pro perfect for use with Bass Guitar as well. True stereo outputs allow for mono, stereo, or inverted mono (90 degrees out of phase) signal routing. The CS-9 Pro's performance is kept exceptionally quiet thanks to a Signetics #NE570 compander and true bypass switching using a 4PDT mechanical switch.
Since their introduction in the early 1980s, Maxon Nine Series designs have achieved a legendary status with pedal connoisseurs around the globe. The reasons for this are simple - superior sound quality and innovative features that offer a seamless interface between performer and performance. Over 20 years later this rule still holds true. Now available with improved circuitry including JRC4558 IC chips and True Bypass Switching, Maxon Nine Series effects remain the standard by which all others are judged.
