Description

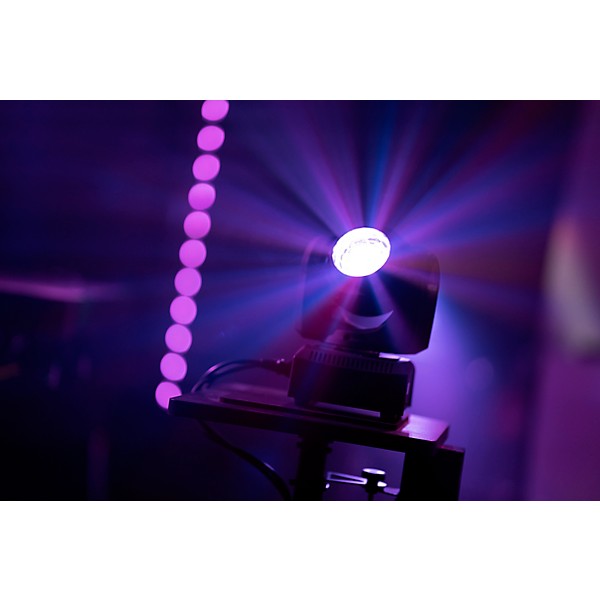

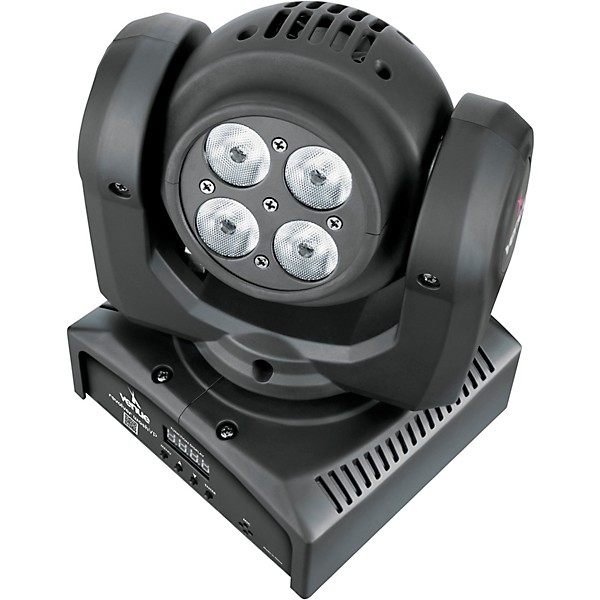

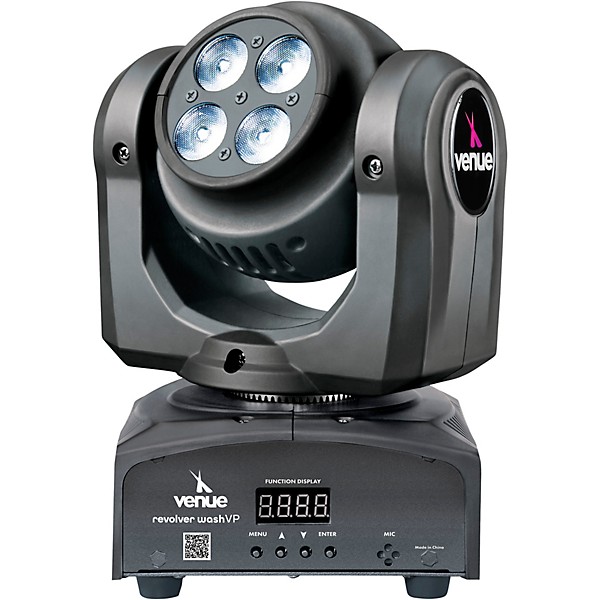

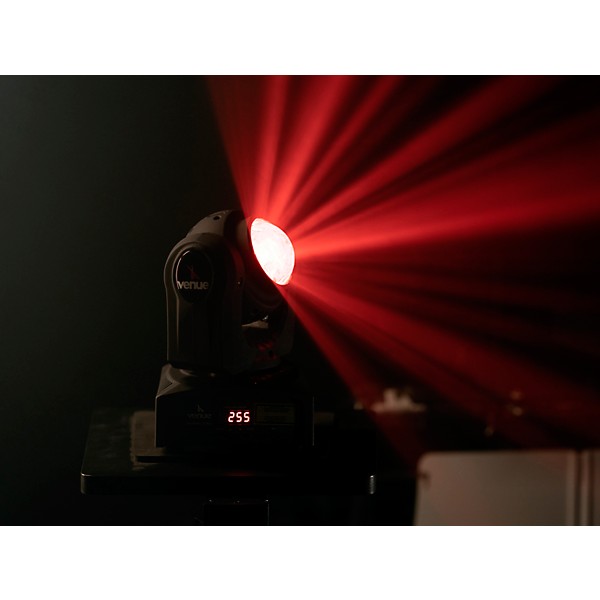

Fill your venue or event space with motion and color courtesy of the Venue Revolver Wash VP, a dual-sided intelligent moving head designed for layered output from a single fixture. One side features a vibrant RGBW wash powered by four 6W LEDs for smooth color mixing and even coverage, while the opposite side houses an 8W RGBW moonflower LED that projects tight beams and animated patterns for added texture. With 540° pan and continuous tilt rotation, plus built-in automated and sound-activated programs, the Revolver Wash VP produces fluid, dynamic looks suited for mobile DJs, clubs, parties and small stage environments.

Flexible Control With Wireless DMX Integration

The Revolver Wash VP supports 10-, 12- and 20-channel DMX-512 operation via standard 3-pin XLR In/Out connections, enabling detailed programming or simplified control. It also integrates wirelessly into Venue lighting systems using the VenueLink Wireless DMX Dongle (sold separately) for cable-free operation with the Tetra Control 2 system. Master/slave linking, variable-speed onboard chases and sound-activated modes support both fully programmed shows and quick setup events.

Compact Design Built for Mobile Performance

Powered by an auto-ranging 100–240V supply and weighing just 5.64 lb., the Revolver Wash VP is engineered for efficient transport and fast deployment. Rubber feet provide stable tabletop placement, while the included mounting bracket and safety loop ensure secure truss installation. With 58W power consumption, it delivers professional moving head wash and moonflower lighting effects without excessive power draw. For DJs and event professionals seeking versatile RGBW wash capability and wireless-ready DMX control in a compact fixture, the Venue Revolver Wash VP represents a streamlined, performance-focused lighting solution.

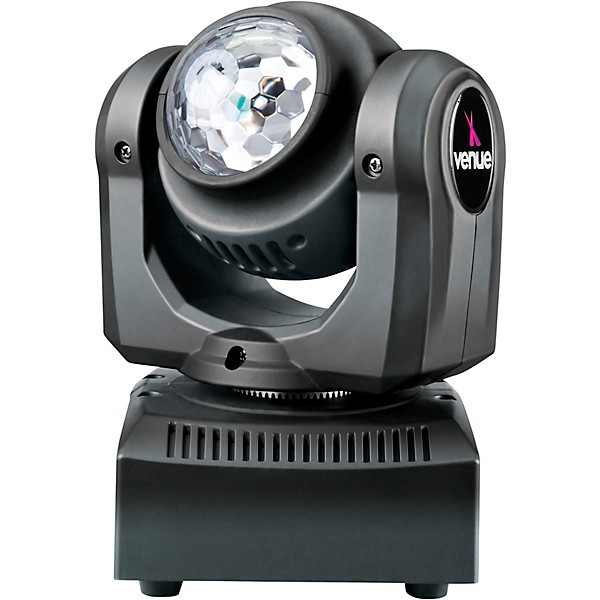

Venue Revolver Wash VP Dual-Sided Moving Head Light
Venue Revolver Wash VP Dual-Sided Moving Head Light
Venue Revolver Wash VP Dual-Sided Moving Head Light

Features

  • Dual-sided moving head engineered for dynamic stage lighting control
  • Moonflower and wash effects combine for rich color and visual depth
  • 540° pan and unlimited tilt enable sweeping movement across wide areas
  • RGBW color mixing gives access to custom hues and static colors
  • Wireless DMX port works with VenueLink for cable-free setups
  • Sound-activated and automated programs adapt to live music and DJ sets
  • Multiple DMX channel modes support complex light cues and syncing
  • Mounting bracket and rubber feet simplify truss and desktop installation
  • Compact 6.86” x 5.78” x 8.98” size fits tight spaces
warning

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specs

General
  • Product type: Dual-sided moving head wash and moonflower fixture
  • Model: Revolver Wash VP
Light Source
  • Wash LEDs: 4 × 6W RGBW LEDs
  • Wash illuminance at 6.5': 1339 lux
  • Wash beam angle: 4°
  • Wash field angle: 25°
  • Moonflower LED: 1 × 8W RGBW LED
  • Moonflower illuminance at 6.5': 1242 lux
  • Moonflower beam angle: 4°
Motion
  • Pan range: 540°
  • Tilt range: Continuous rotation
Control
  • DMX channels: 10, 12 and 20 channels

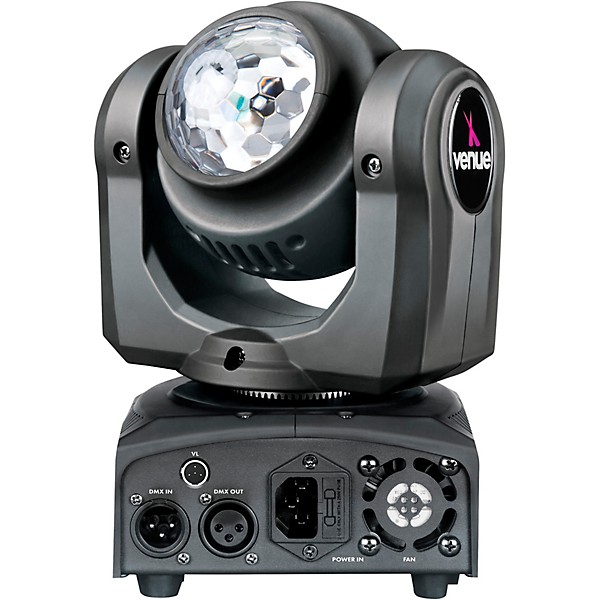

  • DMX connectors: 3-pin XLR in and out
  • Wireless DMX: 4-pin VenueLink dongle port
  • Control modes: DMX512, master-slave and sound active
Power
  • Voltage: 100–240V 50/60Hz
  • Power consumption at 120V: 58W max 0.78A inrush
  • Power consumption at 230V: 58W max 0.45A inrush
  • Fuse: 3.15A
Thermal
  • Max ambient temperature: 104°F
  • Cooling: Fan cooled
Construction
  • Mounting: Bracket with safety loop and rubber feet
Dimensions
  • Dimensions: 6.86" × 5.78" × 8.98"
  • Weight: 5.64 lb.
Included Accessories
  • Accessories: Mounting bracket, 2 mounting bolts, 13 mm safety loop, power cord and user manual
