Soundcraft Youtube Video
Soundcraft 32-channel Si

Si Expression 3

The 32-channel Si Expression 3 is a powerful, yet cost-effective digital mixing console.

  • 32 mono mic inputs, 4 line inputs, AES in and out
  • Color touchscreen interface
  • Up to 66 input processing channels
  • 4 Lexicon effects processors
  • Soundcraft FaderGlow™
Shop now
Soundcraft Si Expression 2

Si Expression 2

The 24-channel Si Expression 2 digital mixing console includes all the features of the Expression 3 in a more compact package.

  • 24 mono mic inputs, 4 line inputs, AES in and out
  • Color touchscreen interface
  • Up to 66 input processing channels
  • 4 Lexicon effects processors
  • Soundcraft FaderGlow™
Shop now
Si Expression 1

Si Expression 1

The 16-channel Si Expression 1 packs the identical features of the larger models into a compact package that can also be rack mounted.

  • 16 mono mic inputs, 4 line inputs, AES in and out
  • Color touchscreen interface
  • Up to 66 input processing channels
  • 4 Lexicon effects processors
  • Soundcraft FaderGlow™
Shop now for Si Expression 1
Soundcraft Separator

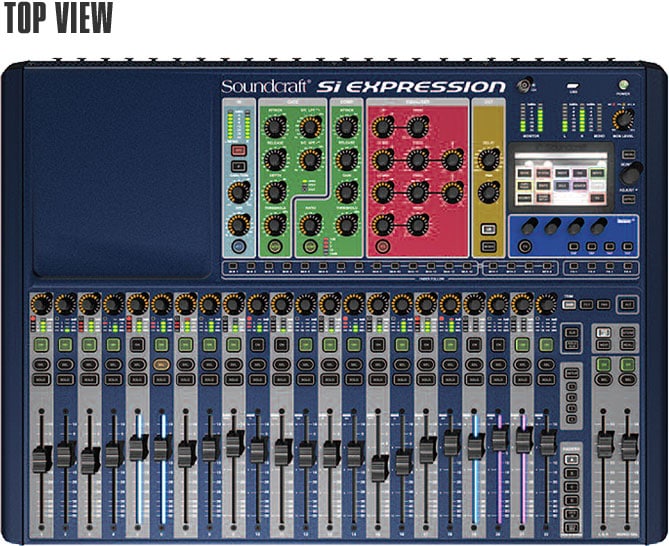

Soundcraft Mixer Top

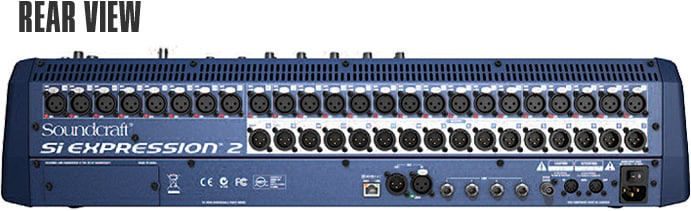

Soundcraft Mixer Rear
Rollover each of the control names to learn more about the control.
  • USB port for storing and recalling desk settings and snapshots on a USB memory stick.
  • Includes 8-segment stereo metering, controls for phantom power and polarity reverse, gain/trim adjustment and high pass filter frequency adjustment
    Input Section
  • Contains controls for the gate and compressor on each channel; compressors are also available on all busses
    Dynamics Section
  • Four EQ bands with adjustable frequencies for each channel; variable Q on Lo Mid and Hi Mid bands
    EQ Section
  • Contains a delay control and a pan control, as well as Stereo and Mono mix assignment
    Out Section
  • Used for setup, show control and naming, as well as to assign inserts, patch channels and setup monitoring.
    Color Touchscreen
  • Four integrated Lexicon effects engines with more than 20 preset effects
    Lexicon® FX
  • Press a single key to instantly mix to an AUX, FX or Matrix bus on the faders.
    Mix Switches
  • Rotary controls are assignable at the touch of a button to be GAIN, PAN or HPF for all of the inputs.
    Global Encoders
  • Metering showing level, gain reduction and gate closed for every active channel or mix
  • Select a channel or bus to display its information on the touchscreen and bring it to the Assignable Channel Strip for adjustment.
  • Set the level of a channel or mix. FaderGlow™ illuminates the faders according to the current operating mode.
  • Over 1000 cues can be stored and recalled.
    Cue/Snapshot Control
  • Four mute groups enable muting several channels as one.
    Mute Groups
  • Four user-configurable fader layers allow you to assign inputs and outputs anywhere on any fader layer or add/insert faders.
    User Configurable Fader Layers
  • Brings the graphic equalizer onto the input faders, with each fader controlling one frequency; GEQ LO selects 31Hz to 630 Hz, while GEQ HI selects 800 Hz to 16 kHz.

  • 32, 24 or 16 mono mic inputs, depending on the model
    Mic/Line inputs
  • 16 balanced line outputs
    Analog Line Outputs
  • For multiple I/O formats and interfacing to personal monitoring systems, audio networks, stageboxes and DAWs
    64x64 Option Card Slot
  • Ethernet port
  • Transports two channels of AES digital audio input and output
  • 4 line inputs
    Line Inputs
  • Carries event messages specifying control signals for setting and synchronizing multiple devices
    MIDI In/Out
Soundcraft Separator
Soundcraft Separator Remote

Remote control iPad app for

Wirelessly control your Si Expression console from your iPad® using a wireless access router connected to the console's HiQnet® Ethernet port.

  • Make adjustments from anywhere in the room
  • Control a network of consoles from one iPad® app
  • Use multiple iPad® devices on the same console
Soundcraft Stage Boxes

Expansion options for Soundcraft digital mixing consoles

Soundcraft Rear Rack Soundcraft Rear Rack Angle 2
Mini Stagebox
When you don't need the modularity and configurability of a larger system, the Mini Stagebox provides a lower-cost stage connectivity solution. Used with the Si Expression's optional MADI interface card, the Mini Stagebox 32 (3U) features 32 analog inputs and 16 line outputs, while the Mini Stagebox 16 (2U) features 16 analog inputs and 8 line outputs.
Compact Stagebox (CSB)
The Compact Stagebox is a configurable modular unit, offering a high density of I/O connections in only 4U of rack space. It provides cost-effective I/O capability extension and allows connection to popular digital formats, including CobraNet®, AVIOM A-Net®16, Ethersound, ADAT and RockNet. The standard configuration offers 32 mic/line inputs, 8 line outputs, 8 channels of AES/EBU outputs and 2 expansion slots.
Soundcraft ViSi Connect Option Cards

Various Soundcraft ViSi Connect option cards can be added to the 64x64 card slot on the rear panel of the Si Expression console, enabling interfacing with other digital systems.

Soundcraft MADI I/O Card

The optional MADI I/O card enables linking the Si Expression to any Soundcraft stagebox and can establish a 64-channel MADI input and output for increased I/O power and flexibility. Single-mode optical, multi-mode optical and Cat5 versions are available.
Soundcraft CobraNet Card

The optional CobraNet card enables sending and receiving up to 32 audio channels to and from a CobraNet digital audio network.
Soundcraft AVIOM A-NET Card

The AVIOM A-NET 16 card enables the Si Expression to digitally feed 16 mono signals to any number of Aviom personal mixers connected in a daisy-chain configuration, providing audio and synchronization data to the chain. DIP switches enable test tone generation and the grouping of two adjacent channels into one stereo channel.
Soundcraft AES (XLR) I/O Card

An XLR-based I/O card provides two pairs of AES/EBU inputs and outputs (4 in/4 out).
Soundcraft AES (D-Type) I/O Card

AES (D-Type)
A D-type connector-based I/O card has 8 inputs and 8 outputs. A BNC connector is provided for wordclock output.
