Description

Developed in collaboration with Porsche Design Studio, the LD Systems MAUI P900 provides excellent reproduction clarity and outstanding high-definition sound.

With a total of 50 neodymium transducers and 1,400 watts RMS of class D power, this groundbreaking column system delivers a maximum sound pressure of 131 dB and 42 to 20,000 Hz frequency response.

The MAUI P900 incorporates both our SonicGuide waveguide technology and WaveAhead tweeter arrangement to deliver a coherent wavefront. Combining 140° dispersion on the horizontal axis and tightly focused vertical dispersion, the system provides an ultra-long throw and even coverage. Our DynX 24-bit digital processing results in detailed, dynamic sound reproduction that remains distortion-free even at the highest volume levels. The use of aptX and AAC coding ensures high-definition full bandwidth audio over Bluetooth with a range of 70 m (230 ft.), and the integration of TrueWireless Stereo technology enables wireless stereo sound from two MAUI P900 with up to 15 m (50 ft.) distance between left and right channel systems.

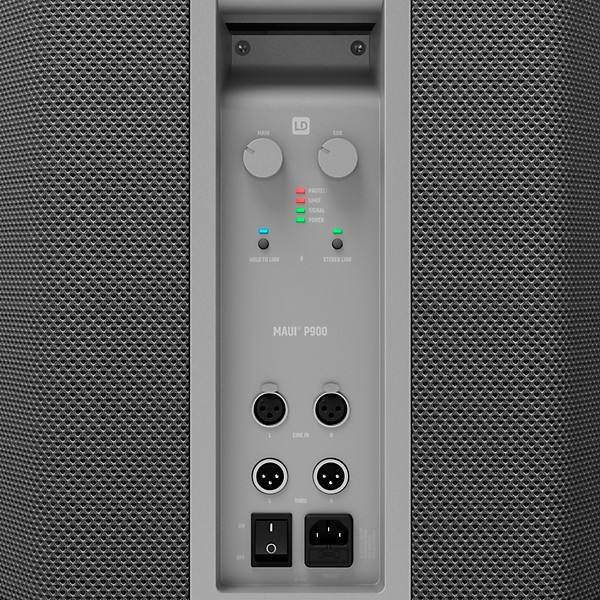

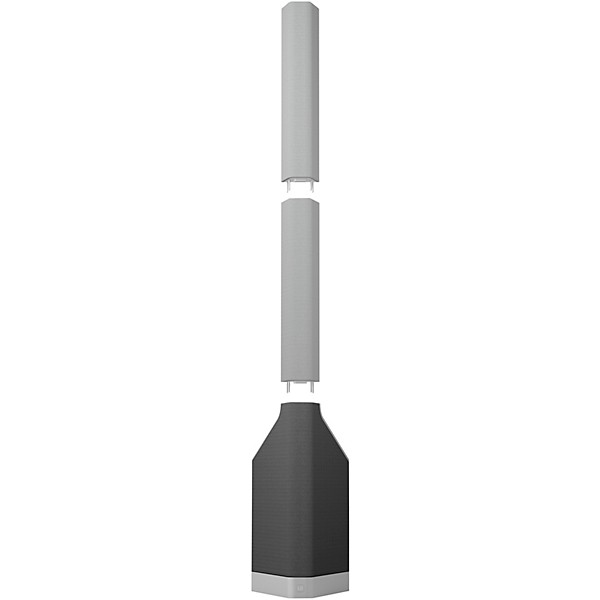

Constructed of high strength aluminum with a multilayer mesh grille, the unique three-piece MAUI P900 body features proprietary multi-pin connectors for instant cableless setup. The minimalist connector panel provides main and sub level controls plus XLR stereo line inputs and outputs for wired stereo operation of two systems.
Merging distinctive aesthetics and outstanding audio performance, the MAUI P900 comes in Cocoon White, Platinum Grey or Graphite Black to elegantly integrate into virtually any ambience.

To facilitate transport and protect the MAUI P900 from damage, padded carrying bags for the column elements and subwoofer and a dedicated road case are available as accessories.
Open Box LD Systems MAUI P900 G Subfoowfer For PA System, Grey Level 1
Open Box LD Systems MAUI P900 G Subfoowfer For PA System, Grey Level 1
Open Box LD Systems MAUI P900 G Subfoowfer For PA System, Grey Level 1

Specs

Amplifier module (integrated in subwoofer)
    Product type
    • PA Complete Systems
    Max. SPL (continuous)
    • 121 dB
    Max. SPL (peak)
    • 131 dB
    Frequency response
    • 42 - 20.000 Hz
    Dispersion (H x V)
    • 140 x 15
    Total Height
    • 85.55 inch
    Features
    • Bluetooth Audio Streaming, DSP-based Signal Processing, Excellent Sound Dispersion, Mono/ Stereo Application
    Amplifier
    • 3 x class D
    System output (RMS)
    • 1400 W
    System output (Peak)
    • 2800 W
    Protection circuits
    • DC protection, Multiband limiter, short circuit, thermal protection
    Cooling
    • Convection
    Controls
    • Bluetooth HOLD TO LINK button, Bluetooth STEREO LINK button, Main level, Power On/Off, Sub level
    Indicators
    • Bluetooth, Bluetooth STEREO LINK, Limit, Power,
    • Protect (protection circuit engaged), Signal.
    Mains connector
    • IEC power cable (included)
    Operating voltage
    • 100 V AC - 120 V AC, 50 - 60 Hz, 200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion), Switching power supply
    Power Consumption (On / Off / Max.)
    • 0 W / 11 W / 1000 W
    Ambient temperature (operating)
    • 0 - 40 °C
    Relative Humidity
    • 10 % - 80 %
    Line Inputs
    •
    • 1 x stereo
    Line Input Connectors
    • Neutrik XLR
    Line Outputs
    • 1 x Stereo Thru
    Line Output Connectors
    • Neutrik XLR
    Number of speaker outputs
    • 1
    Loudspeaker Output Connectors
    • Custom-made multipin
    Bluetooth Standard
    •
    • A2DP
    Bluetooth Audio Decoder
    • AAC, aptX, SBC
    Subwoofer
      Woofer dimensions
      • 2 x 10 "
      Woofer magnet
      •
      • Neodymium
      Woofer brand
      • Custom-made
      Woofer voice coil
      •
      • 3 "
      Cabinet construction
      • Bass Reflex
      Housing material
      • 0.59 inch Plywood
      Cabinet surface
      • HD coated aluminum, multi-layer mesh (cloth)
      Dimensions Subwoofer
      • (W x H x D) 15.74 x 29.33 x 18.50
      Subwoofer weight
      • 67.46 lbs
      Mid/Hi System
        Midrange size
        • 16 x 2.8 "
        Midrange magnet
        •
        • Neodymium
        Midrange brand
        • Custom-made
        Midrange voice coil
        •
        • 0.75 "
        Tweeter dimensions
        • 32 x 1 "
        Tweeter magne
        • Neodymium
        Tweeter brand
        • Custom-made
        Tweeter voice coil
        •
        • 1 "
        Wave Guide
        • SonicGuide Technology
        MF / HF Transducer Arrangemen
        • Patented WaveAhead Technology
        Loudspeaker inputs
        • 1
        Speaker input connections
        • Custom-made multipin
        Cabinet construction mid/high
        • Closed
        Mid/Hi system cabinet material
        • Aluminum
        Mid/Hi system cabinet surface
        •
        • HD coated aluminum, multi-layer mesh (cloth)
        Mid/Hi system width
        •
        • 6.18 inch
        Mid/Hi system height
        •
        • 56.22 (2 x 28.11) inch
        Mid/Hi system depth
        • 3.58 inch
        Mid/Hi system weight
        •
        • 2 x 17 lbs
        DSP characteristics
          Bit depth AD/DA converter
          • 24 bit
          Sampling frequency
          • 48 kHz
          Signal-to-noise ratio
          • 106 dB
