collapse expand iconDescription

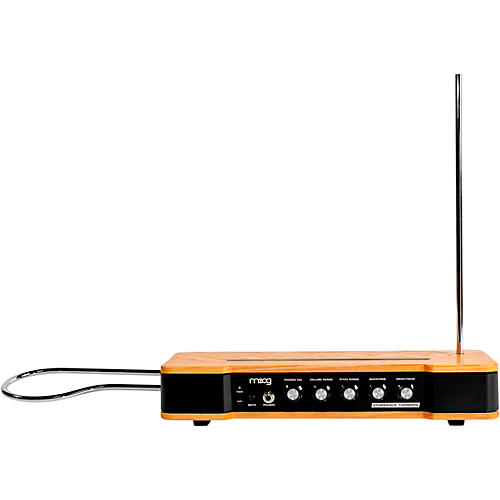

Combining analog playability with unprecedented performance potential, Moog’s Etherwave theremin provides an accurate five-octave pitch range and balanced spacing between notes for a highly sophisticated degree of playability. Updated analog electronics have been used to create Bob Moog’s classic theremin circuit design while improving bass response in the lower registers.

The refined cabinet features hand-finished hardwood and two quick-release plated-brass antennas. Additionally, rear-panel I/O connections and a detachable mic stand adapter ensure quick setup on the go.

Easily accessible front-panel controls allow for spontaneous changes in timbre, and the antennas’ response can be adjusted to suit any player and their environment (advanced users can go a step further via the calibration access panel on top of the instrument). A front-panel headphone output—with dedicated volume control—pairs with the addition of a Mute button that silences the main audio output, while leaving the headphone output active for privately adjusting timbre and tuning.

In addition, Etherwave theremin can connect directly to—and control—your other modular, semi-modular and Eurorack synthesizer systems via CV (Control Voltage). Control your synthesizers or effects while playing the theremin by patching into Etherwave Theremin’s 3.5 mm Pitch CV, Volume CV and Gate CV jacks for a completely new performance experience.

For the novice enthusiast or the seasoned professional player, Etherwave theremin offers exceptional sonics, playability and control to take your sound into new dimensions.
Moog Etherwave Analog Theremin
Moog Etherwave Analog Theremin
Moog Etherwave Analog Theremin

collapse expand iconFeatures

Included in the box:
  • Etherwave theremin
  • Detachable pitch antennae
  • Detachable volume antennae
  • Calibration tool
  • Power supply
  • Quickstart guide
  • User’s manual
  • Product catalog
  • Registration card

collapse expand iconSpecs

General
  • Sound source: Analog heterodyning oscillator
  • Sound modifier: Analog VCA
  • Pitch antenna: Performance control of the frequency range, from approximately 0Hz to 4.2kHz, based on hand proximity
  • Volume antenna: Performance control of the dynamic range of over 70dB, based on hand proximity
  • Mute button: On: Audio Out muted; Phones Out active; Off: All outputs active
  • Switch jack: 1/4" jack for momentary footswitch (not included) controls Mute function
  • Power: LED indicator (front panel); Button (rear panel)
  • Headphones: 1/4" output jack
  • Audio Out: 1/4" audio output jack
  • CV Out: 3.5 mm jacks for Volume CV Out, Pitch CV Out, Gate CV Out
Power
  • Power supply: Style: wall adapter; barrel connection; center-pin positive
  • Input: 100–240VAC; 50Hz–60Hz
  • Output: +12VDC; 2A
Dimensions and Weight
  • Dimensions, with antennas (HxWxD): 18.73" x 26.81" x 6.59"
  • Dimensions, without antennas (HxWxD): 3.31" x 17.22" x 6.26"
  • Weight: 6.3 lb.
