Radial Engineering 8ox Eight Channel 3-way Microphone Splitter

Item #:
  • Write a Review

The Radial 8ox is a high performance, 8-channel mic splitter with 3 outputs on each channel: a direct output for 48V phantom return, and auxiliary output with ground lift switch and a transformer isol... Read More

Available 12-13-2015 You will not be charged until order ships. Email me when this is in stock.

Your Price:
Add to Wish List
GC Gear Card
Special Financing Offers
Learn More
PICK UP IN STORE Available in: 3-7 Days (estimated) Englewood, CO (3.11  mi) Change Pick Up Store

  • Pro Coverage Eligible
  • Free Shipping
  • Easy Returns

The Radial 8ox is a high performance, 8-channel mic splitter with 3 outputs on each channel: a direct output for 48V phantom return, and auxiliary output with ground lift switch and a transformer isolated output. Although primarily designed for mic signals, the 8ox is equipped with a 20dB pad for line level sources. This makes the rackmountable 8ox highly adaptable for all types of signal splitting and particularly well-suited to accommodate live recording by delivering a transformer isolated audio signal path for the recording engineer while providing a direct feed to the front of house and monitor consoles.

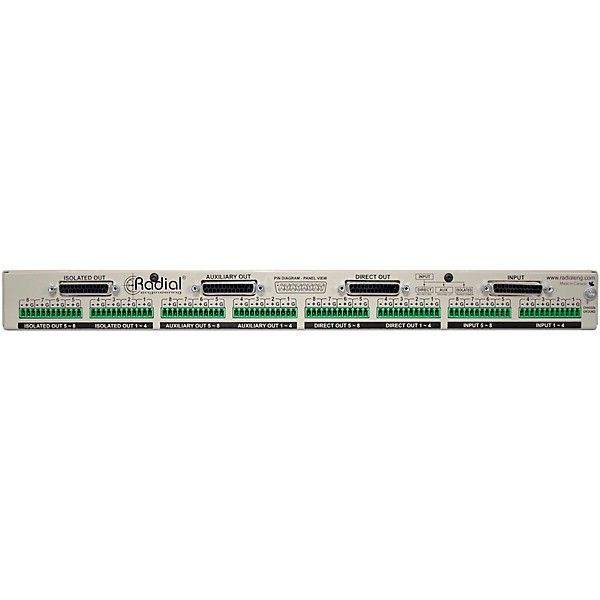

For maximum flexibility, several connector options are available: Inputs may be accessed via the front panel using standard XLRs or on the rear panel with choice of 25-pin D-subs wired to the TASCAM standard or Euro screw-down terminal connectors. Outputs include D-Subs and Euro connectors, which are also located on the rear panel. These make it easy to connect to popular multitrack recording systems while providing easy termination for permanent installations. Because it is 100% passive, it does not require any power to make it work and maximum durability is ensured with heavy-duty 14 gauge steel construction throughout. Comes standard with a custom wound Radial transformer.

The Radial 8ox is a great sounding splitter that's easy to use, compact and convenient.

  • Compact 8-channel multipurpose mic splitter
  • Rear panel D-sub and Phoenix screw terminals
  • Ideal for live recording and signal distribution
  • Provide broadcast or podcast feed
  • Input connections
    Balanced XLR-F x 8
    D-sub 25-pin (TASCAM std)
    Euroblock screw-down

    Output connectors
    D-sub 25-pin (TASCAM std)
    Euroblock screw-down

    Circuit type: Passive-transformer isolated

    Input: 100 kOhms
    Output: 600 ohms

    Input Pad: Per channel -36dB pad
    Common mode rejection: -90dB @ 60Hz
    Frequency Response: 20Hz to 20kHz (+/-2.5dB)
    Harmonic dist: 0.01% (20Hz to 20kHz)

    Phase distortion
    1 degree at 1kHz
    8 degrees at 20Hz

    Transformers: Radial special design 1:1 transformers

    Ground lifts
    Pin-1 ground lift switch on XLRs
    Internal switch for iso output

    Construction: 14-AWG steel, baked enamel finish
    Dimensions: 6.25"D x 19"W x 1.75"H (159x483x44.5mm)
    Weight: 7.25 lbs. (3.3 kg)
    Warranty: Radial 3-year limited warranty
