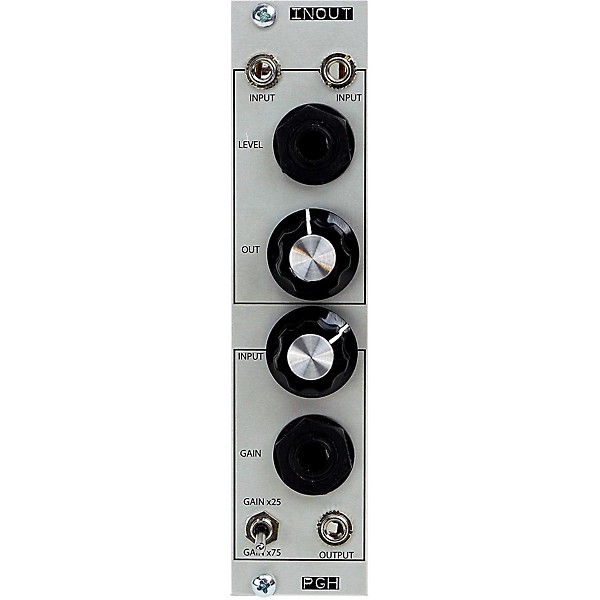

Pittsburgh Modular Synthesizers InOut Module

Item #:
1444227498745
  • Write a Review

A 2-way communication line for audio between a modular the outside world. The InOut is divided into two sections, output and input.An attenuated line out allows the InOut to patch audio from the modul... Click To Read More About This Product

We're sorry—we no longer carry this item.

Find a similar product below or contact us for a recommendation of a great alternative.

Call: 866-498-7882 Email or Chat

Recommended Products
Overview

A 2-way communication line for audio between a modular the outside world. The InOut is divided into two sections, output and input.

An attenuated line out allows the InOut to patch audio from the modular directly into effects pedals, mixers, audio interfaces, amplifiers, pa systems, or anything else that takes a 1/4" jack. The 1/4" mono output can be used as a line out for the modular or as an effects send that uses the input section for the effects return.

The input section consists of a switched 25x/75x preamp designed to amplify the audio from the 1/4" mono input to modular levels. Guitars, synthesizers, effects pedals, and line level audio can be inserted into the modular signal chain.

The InOut is useful even without external patching. The two 1/4" jacks are normaled together so with no 1/4" return plugged in, the audio from the input is automatically routed through the amplifier to the output. At 25x, this allows the InOut to be a great amplifier for boosting modular audio signals or switch to 75x amplification and overdrive the signal to distortion.

FEATURES

Output Section Features:
  • 2 Channel Unity Gain Mixer with Attenuated 1/4" Line Output
  • Output Section Normaled to Input Section
Input Section Features:
  • 25x/75x Switchable Gain Amplifier
  • Attenuated 1/4" Input Jack
  • 3.5mm Output Jack
