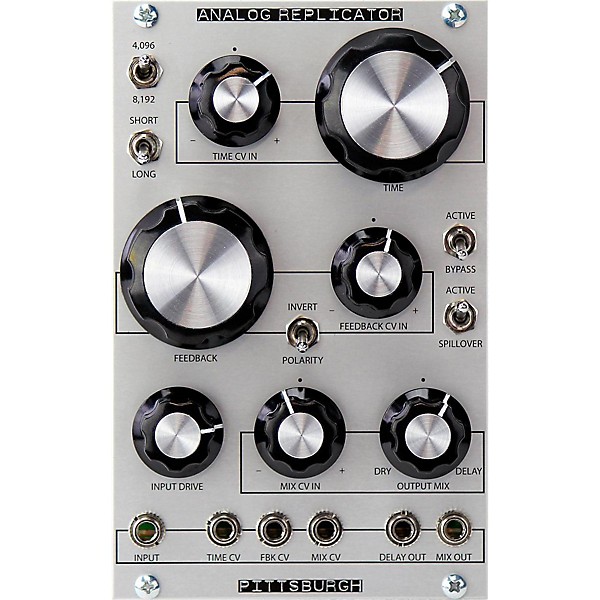

The Analog Replicator was redesigned from scratch to be the finest analog delay available with a sound and feature set focused around the modular synthesizer. For the Analog Replicator, Pittsburgh Modular's analog engineer Michael Johnsen created a modern BBD core fed by a unique clock source and proprietary signal processing circuits. The result is a flexible, more musical, Eurorack delay module.
How It Works
At the heart of the Analog Replicator is a pair of 4,096 stage BBD chips. The name BBD stands for Bucket Brigade Device in reference to a line of people passing buckets of water to quickly extinguish a fire. Each stage of a BBD chip contains a single capacitor. Pairing two chips together creates a chain of 8,192 capacitors. Like the water buckets, an audio signal is passed from capacitor to capacitor within the BBD chips once every clock step. A slower clock produces a longer delay and a faster clock produces a shorter delay.
The controls of the Analog Replicator can be used to produce a wide range of delay effects. The STAGES switch flips between 4,096 and 8,192 BBD stages. 4,096 uses a single BBD chip and 8,192 uses two. Using both BBD chips doubles the available delay time, perfect for echoes and longer delays. Using a single BBD is useful for reverb and chorus effects. The SHORT/LONG switch drastically adjusts the delay range. Using a single BBD, the SHORT range varies between 10ms and 175ms and the long range varies between 10ms and 1300ms. The SHORT mode produces bright, clean analog repeats. LONG mode is dark and grimy. Mud and clock noise (whine) begin to leak in and eventually take over as the Analog Replicator reaches the longest available delay time.
Chorus and Reverb
The design of the Analog Replicator allows it to mimic Chorus and Reverb effects. Setting the switches to 4,096 and SHORT, adjusting the TIME control to create shorter delays, and adding a small to medium amount of FEEDBACK, the Analog Replicator generates an analog reverb effect. Add modulation using the TIME CV IN to take advantage of a range of chorus like effects.
GUITAR CENTER'S PRO COVERAGE
Pro Coverage gives you added warranty protection for your gear. Stepping in where the manufacturer's "normal wear and tear" coverage ends, our Pro Coverage program offers you upgraded coverage if your product ever fails Click To Read More About This Product.
Reviewed by 1 customer
Displaying review 1
Comments about Pittsburgh Modular Synthesizers Analog Replicator Module:
I love it but it has some drawbacks that would move the average person looking for an analog delay away from buying this. This is much more of a delay designed for experimentation. The short delays are clean and bright and create wonderful slapbacks, Chorus/Flanging effects. While the long Delays are dark and a bit muddy. The Feedback Self Oscillates a lot making it very difficult to dial in and use in a performance situation. There is also a high frequency noise when set to Long. This could be filtered out with a parametric equalizer or filter if it is not desired. But it is there as it is supposed to be there, "See there Website". I Still love it as it does things a regular Analog Delay does not.
