The Rocktron PatchMate Loop 8 guitar floor switcher provides 8 discrete loops all with True Bypass. The PatchMate Loop 8 also delivers both buffered and non-buffered signal paths, and 128 programmable presets with real time control using its 9 high-quality metal foot switches.
The 8 loops are configurable for multiple purposes including Channel switching, effects loops, guitar routing and more. The Rocktron stompbox adds preset programmability along with pedal True Bypass to any standard pedal board with ease.
The PatchMate Loop 8 Floor is easy to set up and program with real-time user controls. Program the unit from the top panel using the switches. Recall the first eight user presets using the eight onboard footswitches or access a total of 128 presets using external MIDI program changes. External MIDI Continuous Controllers add the ability to trigger loops externally.
The Rocktron PatchMate Loop 8 Floor supports intelligent latching and momentary switch sensing, which allows the user to use any MIDI continuous controller number without any other programming effort.
The PatchMate Loop 8 Floor has buffered Active and Passive inputs, with passive/active and active outputs on the back. It can be set to any MIDI channel, and is programmable from the top panel as well as configured for use on any of 16 banks of controllers via the top panel switches.
The MIDI In/Out/Thru jack makes the Rocktron PatchMate an ideal addition to any floor setup, providing programmable presets, 8 loops with true bypass, real time control, and external loop capability to your pedal board. And as if that weren't enough, by using Rocktron's Smart Controller Technology, the PatchMate Loop 8 Floor switcher works for momentary amplifier switching.
Power Switch and LED

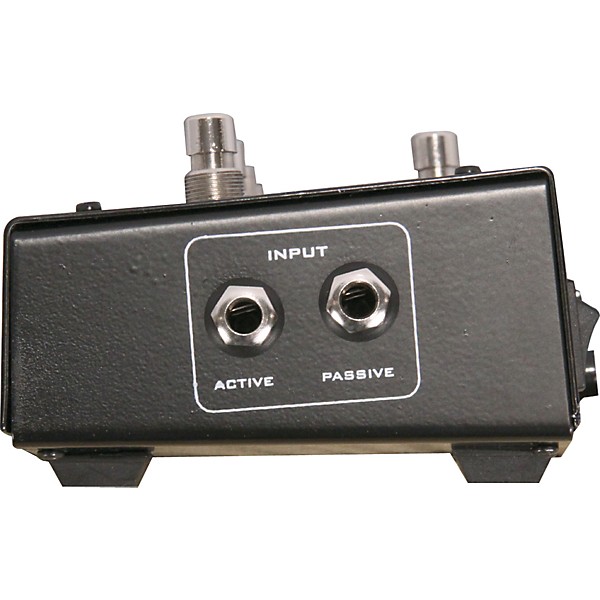

Active Input Jack
Passive Input Jack
Active out jack
MIDI out/thru jack
MIDI in jack
Active Input Impedance: 1.5 mOhms
Active Output Impedeance: 150 Ohms
Input Jacks: 1/4" mono
Send Jacks: 1/4" mono
Return Jacks: 1/4" mono
Output Jacks: 1/4" mono
Power requirements: 9V AC 3.4amps 4 pin DIN connector
Dimensions: 1 rack space, 19" wide, 1 3/4" tall, 6.5" deep,
MIDI In/Thru/Out: 7 pin DIN, (standard 5 pin cable plugs in without phantom power feature), Thru/Out 5 pin DIN
Phantom power: Provided on MIDI IN jack pins 6 and 7 - 9V AC 2amps
MIDI program change: 0-127
Midi control: Change commands in groups of 8 with 16 banks 0-7, 8-15, 16-23; 120-127
Relays: Gas filled, contacts gold-plated
GUITAR CENTER'S PRO COVERAGE
Pro Coverage gives you added warranty protection for your gear. Stepping in where the manufacturer's "normal wear and tear" coverage ends, our Pro Coverage program offers you upgraded coverage if your product ever fails Click To Read More About This Product.
Reviewed by 1 customer
Displaying review 1
Comments about Rocktron PatchMate Loop 8 Guitar Floor Audio Switcher:
I bought this to simplify my home setup. I use it to select between 4 amps, switch in/out a Boss GT-10, and use the remaining switches as on/off pedals for various amp/GT-10 functions and it has worked well. It is a good price for an 8 loop switcher and it is built solid. There is one warning with my setup and that is that I'm switching between 4 amps which requires ground loop isolators or you will most likely get hum due to the 4+ ground paths. This is not a fault of the switcher just a reality of my setup and it took awhile figure out. The only negative is that I do sometimes get a small click or pop that is audible thru the amp when switching, and this is why I gave it 4 stars instead of 5. It doesn't effect me much since I'm not playing live and I'm usually switching between songs and not during. I really don't know if this is normal for a loop switcher as I haven't tested other (and some times much more expensive) units with my setup.
