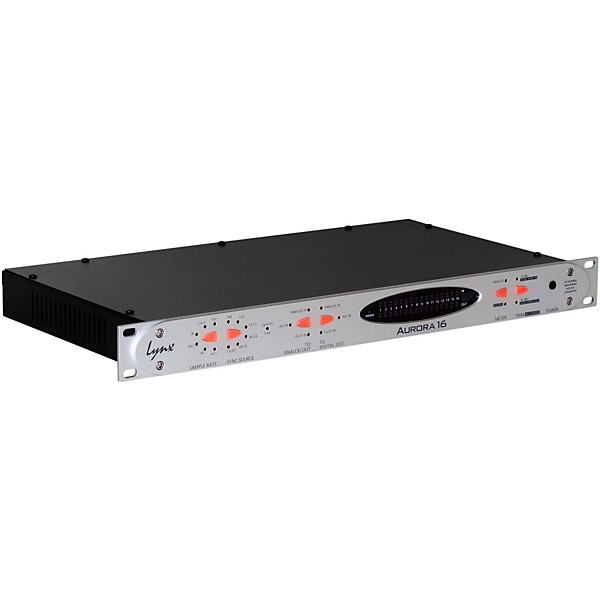

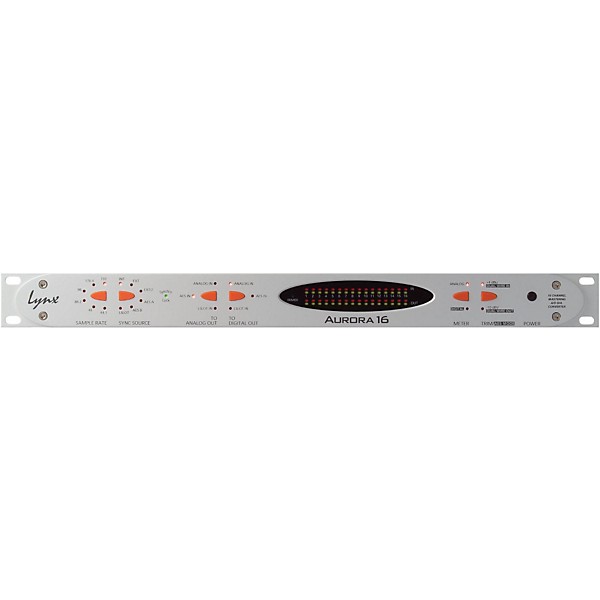

Lynx Aurora 16 Converter with Thunderbolt

Item #:
1384789086793
  • Write a Review

The Aurora 16 AD/DA converter provides world-class analog to digital and digital to analog conversion in a compact one-rack space format. With sample rates up to 192 kHz, Aurora offers wide, open, unc... Read More

Price:
$3,0950.00
Add to Wish List
Special Financing Offer
$86/month for 36 months
Guitar Center Gear Card

0% Interest for 36 Months*. 36 Equal Monthly Payments required. Valid through 12/31/2016
Get Details

GC Gear Card
Special Financing Offers
Learn More

PICK UP IN STORE Available in: 3-7 Days (estimated) Denver, CO (5.5  mi) Change Pick Up Store


,
SUN:11AM-7PM
MON-FRI:10AM-9PM
SAT:10AM-8PM
  • Pro Coverage Eligible
  • Free Shipping
  • International Shipping

QUESTIONS? CONNECT WITH AN EXPERT INSTANTLY.

  • Chat Now
  • Call 866-498-7882
Overview

The Aurora 16 AD/DA converter provides world-class analog to digital and digital to analog conversion in a compact one-rack space format. With sample rates up to 192 kHz, Aurora offers wide, open, uncompressed and unequalized audio for studios, mastering facilities, remote recording, broadcast and production. Lynx's exclusive SynchroLock word clock offers extreme jitter reduction, providing clean digital audio signals for Aurora and other digital devices in the studio.

Aurora also avoids some of the limitations that other pro level converters have. Aurora does not have a noisy fan, does not lose channel count at higher sample rates and does not require costly analog and digital modules to achieve the unit's full channel count.

Aurora can be used with any audio content. Equalization and limiting functions, which can color or alter the sound, have not been added. Lynx's design provides accurate conversion, clear clean audio, wide imaging - the sound you put into Aurora is the sound that you get out of Aurora.

Several interfaces allow Aurora to be used in a number of different configurations. LT-HD allows Aurora to be recognized by and controlled from a Digidesign ProTools|HD system. FireWire access is easy using the LT-FW. 16 channels of ADAT Lightpipe I/O is made available with the LT-ADAT. LT-MADI allows up to four Aurora converters to send and receive up to 64 MADI channels. The LT-USB is a USB 2.0 device for up to 16 I/O channels. And Lynx AES16 and AES16e allow interface with a wide range of Windows and Macintosh computers.

Features
  • Simultaneous 16 channel analog I/O and 16 channel AES/EBU I/O
  • 24-bit/192 kHz mastering quality A/D and D/A conversion
  • 192 kHz AES/EBU I/O supporting single and dual wire modes
  • Single rack space configuration
  • Extensive remote control capability via Lynx AES16, IrDA and MIDI
  • On-board 32-channel digital mixer provides flexible I/O routing
  • Word clock I/O with Lynx SynchroLock sample clock technology
  • Digital I/O DB-25 connectors follow Yamaha pinout protocol
  • Analog I/O DB-25 connectors follow Tascam pinout protocol
Specifications
  • ANALOG I/O
    Aurora 16: Sixteen inputs and sixteen outputs
    Type: Electronically balanced or unbalanced,
    Level: +4 dBu nominal / +20 dBu max. or -10 dBV nominal / +6 dBV max
    Input Impedance:
    Balanced mode: 24k ?
    Unbalanced mode: 12k ?
    Output Impedance:
    Balanced mode: 100 ?
    Unbalanced mode: 50 ?
    Output Drive: 600 ? impedance, 0.2 ?F capacitance
    A/D and D/A Type: 24-bit multi-level, delta-sigma
    ANALOG-IN PERFORMANCE
    Frequency Response: 20 Hz - 20 kHz, +0/-0.1 dB
    Dynamic Range: 117 dB, A-weighted
    Channel Crosstalk: -120 dB maximum, 1 kHz signal, -1 dBFS
    THD+N:
    -108 dB (0.0004%) @ -1 DBFS
    -104 dB (0.0006%) @ -6 DBFS
    1 kHz signal, 22 Hz - 22 kHz BW
    ANALOG-OUT PERFORMANCE
    Frequency Response: 20 Hz - 20 kHz, +0/-0.1 dB
    Dynamic Range: 117 dB, A-weighted
    Channel Crosstalk: -120 dB max., 1 kHz signal, -1 dBFS
    THD+N:
    -107 dB (0.00045%) @ -1 DBFS
    -106 dB (0.00050%) @ -6 DBFS
    1 kHz signal, 22 Hz - 22 kHz BW
    DIGITAL I/O
    Number / Type:
    16 inputs and 16 outputs
    24 bit AES/EBU format, transformer coupled
    Channels: 16 in/out in single-wire mode 8 in/out in dual-wire mode
    Sample Rates: All standard rates and variable rates up to 192 kHz in both single-wire and dual-wire modes
    ON-BOARD DIGITAL MIXER (via AES16/AES16e)
    Type: Hardware-based, low latency
    Routing: Ability to route any input to any or multiple outputs
    Mixing: Up to four input or playback signals mixed to any output, 40-bit precision
    Status: Peak levels to -114 dB on all inputs and outputs
    CONNECTIONS
    Digital I/O Ports:
    25-pin female D-sub connectors
    Port A: channels 1-8 I/O
    Port B: channels 9-16 I/O
    Yamaha pinout standard
    Analog I/O Ports:
    25-pin female D-sub connectors.
    Analog In 1-8
    Analog In 9-16
    Analog Out 1-8
    Analog Out 9-16
    Tascam pinout standard
    External Clock: 75-ohm BNC word clock input and output
    MIDI: One input and one output. Standard opto-isolated, 5-pin female DIN connectors
    REMOTE CONTROL OPTIONS
    Function: Controls all I/O, levels, monitoring, routing and setting recall
    Method:
    AES16/AES16e: With PC or Macintosh
    IrDA: For compatible Pocket PCs and laptops
    MIDI: Selected MIDI devices
    GENERAL
    AC Power: 110 / 115 / 230 VAC, 70 watts
    Size: 1.75" H x 19" W x 9" D
    Shipping Weight: 12 pounds
    Certifications: CE and FCC Class B EMI, CE Product Safety
    L-SLOT EXPANSION PORT
    Compatibility: Supports Lynx LSlot expansion cards Channels Up to 16 input and 16 output simultaneously at up to 192 kHz sample rate
Warranty

GUITAR CENTER'S PRO COVERAGE
Pro Coverage gives you added warranty protection for your new gear. Stepping in where the manufacturer's "normal wear and tear" coverage ends, our Pro Coverage program offers you upgraded coverage if your product ever fails Read More.

Pro Coverage includes
  • Accidental damage protection (new gear only)
  • Expedited repair
  • Free shipping (for returns or repairs)
  • 100% coverage for commercial use
  • Extended return period
  • Extended price protection
  • No lemon guarantee
  • Free transfer of coverage to a new owner
  • Repair costs covered for up to three years from date of purchase
  • Repair authorization-toll-free by phone or via the web
