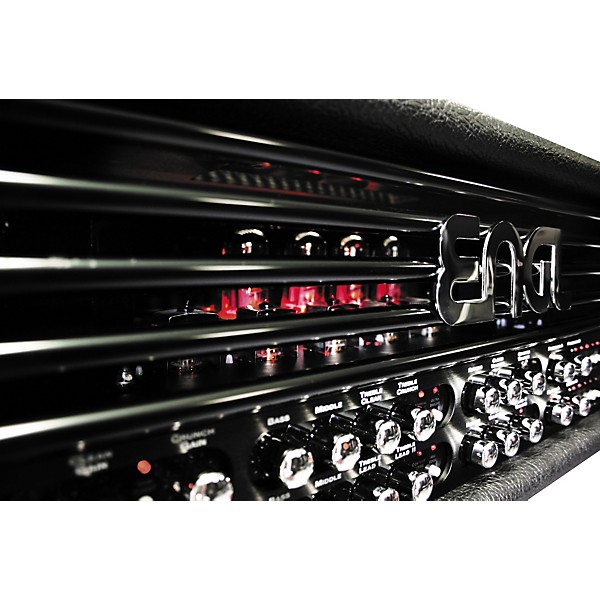

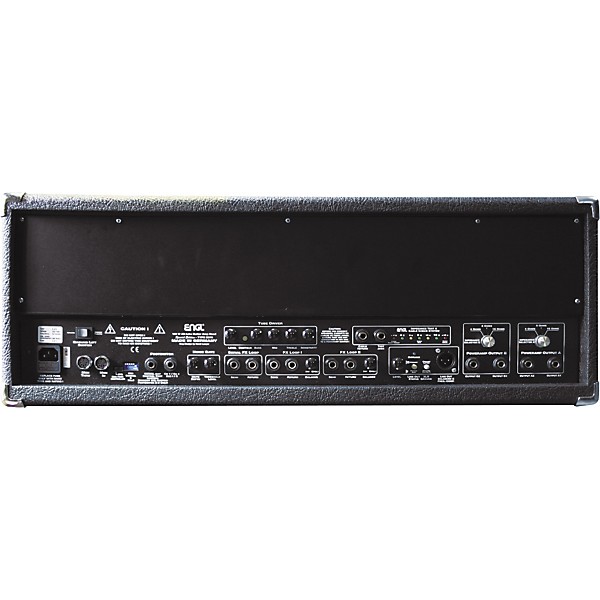

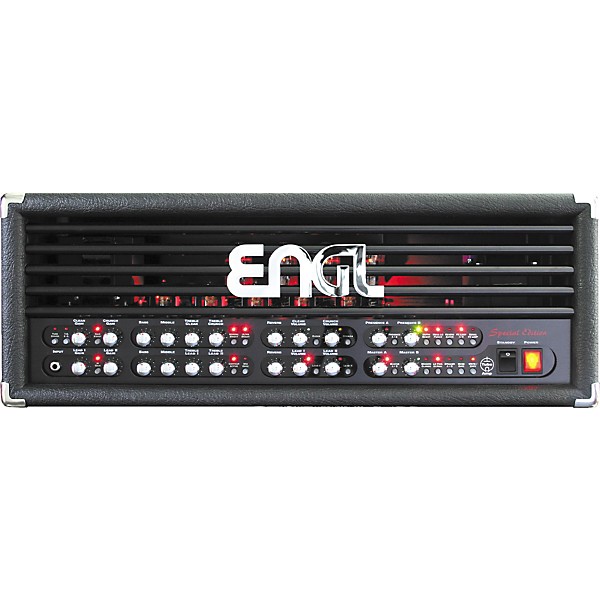

Engl Special Edition E 670 100W Guitar Amp Head (6L6)

Item #:
1274319724010
  • Write a Review

This Special Edition Engl head delivers a universe of sound from a single amp head, optimized for the next generation of ambitious guitar players. 6 basic sounds and 24 switchable sound options to sto... Read More

Price:
$4,19999
Add to Wish List
GC Gear Card
Special Financing Offers
Learn More

PICK UP IN STORE Available in: 3-7 Days (estimated) Denver, CO (5.5  mi) Change Pick Up Store


,
SUN:11AM-7PM
MON-FRI:10AM-9PM
SAT:10AM-8PM
  • Pro Coverage Eligible
  • Free Shipping
  • International Shipping

QUESTIONS? CONNECT WITH AN EXPERT INSTANTLY.

  • Chat Now
  • Call 866-498-7882
Overview

This Special Edition Engl head delivers a universe of sound from a single amp head, optimized for the next generation of ambitious guitar players. 6 basic sounds and 24 switchable sound options to store 128 MIDI presets. From crystal clean to smooth iazz, from Texas crunch to pounding rock, from fat metal punch to screaming leads. 100 watts of mega-power. It doesn't get much better.

Features
  • Tube Driver circuit for effect devices
  • Also serves as a separate 5th channel that can be selected directly (with or without EQ)
  • Modern and Classic sound-shaping buttons determine the basic voicing of all 4 channels,
  • 2 gain variants for each of the basic channels: Gain Boost and Hi Gain
  • 3 voicing sections: one EQ for Clean and Crunch (Main Channel 1), one for Lead I and Lead II (Main Channel 2) and another for the Tube Driver
  • Every channel sports a dedicated Treble knob
  • Various sound-shaping buttons tuned to match the tonal requirements of the given channels
  • Large spring reverb with separate knobs for the 2 Main Channels
  • 3 effect loops: FX Loop I and FX Loop II are variable, switchable effect loops, while Serial FX Loop is a separate circuit that can be used in series with 2 main effect loops
  • Each effect loop may be activated for each channel as well as for the Tube Driver circuit
  • 2 each power amp Master and Presence knobs, accessible via MIDI
  • Variable MIDI-switchable power amp output (50 or 100 watts) with hot impedance adjustment
  • A/B speaker switching with separate impedance selector for connected speaker systems
  • Balanced, frequency-compensated XLR line output for routing preamp or power amp signals to mixers or recording gear
  • MIDI In and Thru ports serve to integrate the amp into a MIDI system
  • 128 MIDI presets, accessible via 16 MIDI channels
  • Offers three different remote interface ports: Serial Amp Control Port accepts the Custom Z-9 Footswitch (sold separately); the MIDI In accepts the Z-9 for use as a simple MIDI footcontroller or any other MIDI footcontroller
  • Amp is equipped with a stereo jack that takes a dual footswitch allowing you to switch the four channels remotely
  • Programmable Noise Gate for suppressing noise in the Crunch, Lead I, and Lead II channels
  • Made in Germany
Specifications
  • Output power: approx. 100 watts in Hi Power mode, adjusted accordingly to 4, 8 and 16 ohms; approx. 50 watts in Lo Power mode adjusted accordingly to 4, 8 and 16 ohms

    Input sensitivity
    Input: from -20 dB, nominal, max. 0 dB
    Effect Return: from -20 dB nominal, max. 0 dB

    Output level
    SEND, level range: from -20 dB to approx. 0 dB max.
    Frequ.Comp. Line Out: +6 dB max.

    Power consumption: approx. 390 watts max., equipped
    with 6L6GC power tubes

    Fuses
    External at 230/240 mains voltage: 2 ATL (2 amps slo-blo)
    External at 100/115/120 mains voltage: 4 ATL (4 amps slo-blo)
    Internal: 2 x 2.5 ATL (2 amps slo-blo)

    Tubes
    V1, V2, V3, V4: 6L6GC (factory loaded) or EL34, matched sets
    V5: ECC83 FQ, input tube
    V6, V7: ECC83 selected
    V8, V9: ECC83 standard

    Logic control system: AT89C52 microcontroller with internal 8K Flash Memory for Processor
    Software: software source code; Upgradeable with external Programmer

    System interfaces
    MIDI: Asynchronous data protocol according to the MIDI standard; MIDI program changes 0 - 127; MIDI channels 1 ” 16; MIDI controller 7 (main volume), value 0-5 = Master Volume Mute, Mute, value > 5 = default, Master Volume level

    Serial Amp Control: Proprietary ENGL asynchronous data protocol
    Dimensions: 71 x 28 x 29 cm
    Weight: 26 kg
