Layla3G PCI Audio Interface

Item #:
1274115039962
  • Write a Review

The Echo Layla3G PCI Audio Interface is the perfect center for any computer-based studio. It has two universal inputs with mic preamps, six balanced analog inputs, eight balanced analog outputs, and a... Read More

We're sorry—we no longer carry this item.

Find a similar product below or contact us for a recommendation of a great alternative.

Call: 866-498-7882 Email or Chat

Overview

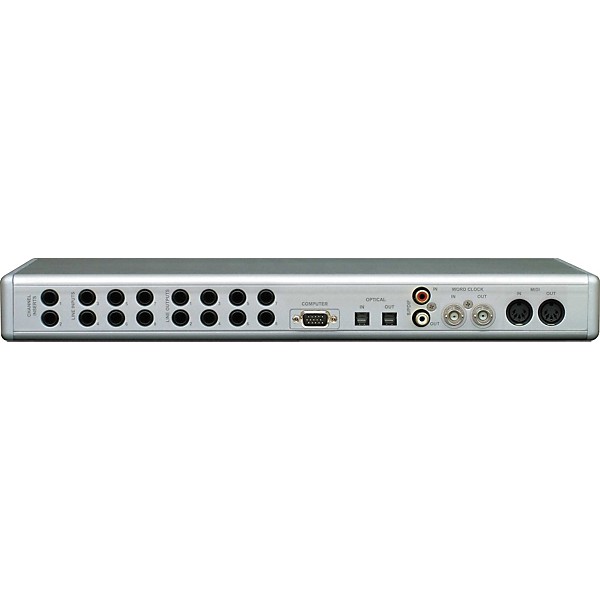

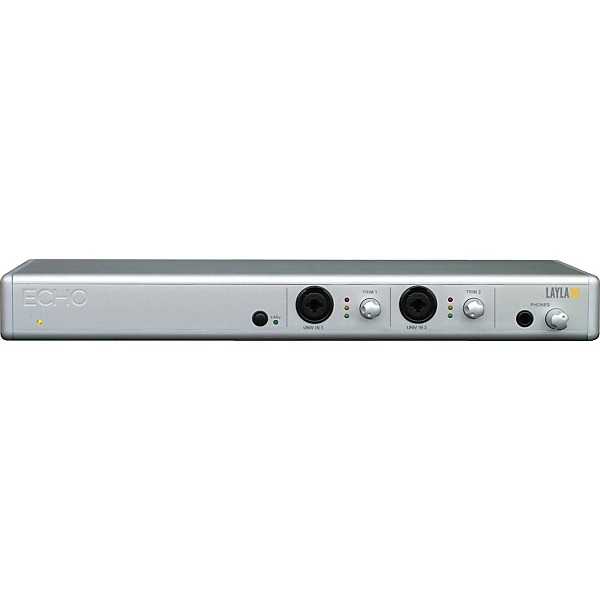

The Echo Layla3G PCI Audio Interface is the perfect center for any computer-based studio. It has two universal inputs with mic preamps, six balanced analog inputs, eight balanced analog outputs, and a stereo headphone output. ADAT lightpipe, optical and coaxial S/PDIF, and MIDI are included as well. Layla3G comes with a 15' cable and PCI card that connects to the audio interface. Layla3G is compatible with PCI-X (3.3 or 5 volt) motherboards and Power Mac G5 computers, as well as older systems.

It gives you a software console for monitoring, metering, and setting levels as well as low-latency drivers for nearly all major pro audio software, surround sound support, and SuperChannel resource sharing.

Features
  • PCI audio interface
  • 2 auto-sensing inputs (mic/guitar/line): meters, trim knobs, phantom power, and channel inserts
  • 6 balanced 1/4" analog inputs: 113dB (A-weighted) dynamic range; +4dBu/-10dBV nominal levels
  • 8 balanced 1/4" analog outputs: 114dB (A-weighted) dynamic range; +4dBu/-10dBV nominal levels
  • S/PDIF I/O (coaxial and optical) at 24-bit/96kHz
  • ADAT optical digital I/O
  • MIDI I/O
  • Stereo headphone output with volume knob
  • Sync via word, S/PDIF, ADAT, or MTC
  • Supports full duplex 16 channel in, 16 channel out operation
  • Rackmountable single-space breakout box
  • Heavy-duty aluminum case
  • 15' cable to connect to PC
  • PCI bus mastering interface: Bus powered; works with PCI-X (3.3/5 volt) and Power Mac G5
  • A/D and D/A converters in external breakout box
  • 56-bit/100mHz DSP for digital mixing
  • Near zero-latency hardware monitoring
  • Software console for monitoring, metering, and setting levels
  • Low-latency drivers support all major pro audio software: Low Latency ASIO 2.0; GSIF 2.0 (Gigastudio 3 with low latency MIDI); WDM kernel streaming mode; CoreAudio, and CoreMIDI
  • Surround sound support: 5.1 and 7.1 output with delay management; AC3, DTS, and WMA9 output over S/PDIF
Specifications
  • PC System requirements: Windows ME/2000/XP; Genuine Intel Pentium or AMD Athlon CPU; Motherboard with Intel, AMD, Via, or NVIDIA chipset; 256 MB RAM (512 MB recommended)
  • Mac System Requirements: Mac OS X (10.2 or later); G4 or better processor (Power Mac G5 compatible); 256 MB RAM (512 MB recommended)
