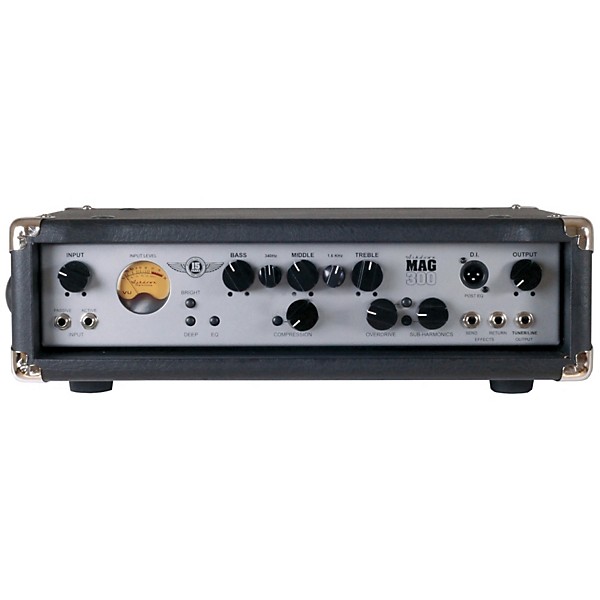

Ashdown MAG 300H EVO III Bass Amp Head Black

Item #:
1342189723198
  • Write a Review

Ashdown are proud to announce the launch of the new and improved range of MAG heads and combos. After four years of the current MAG line Ashdown decided they needed a little bit of an update. Ashdown ... Click To Read More About This Product

We're sorry—we no longer carry this item.

Find a similar product below or contact us for a recommendation of a great alternative.

Call: 866-498-7882 Email

Recommended Products
Overview

Ashdown are proud to announce the launch of the new and improved range of MAG heads and combos. After four years of the current MAG line Ashdown decided they needed a little bit of an update. Ashdown didn™t by any means look to change the wheel of the hugely successful MAG range but add a little more bang for your buck with the addition of an Overdrive control, which can be easily dialed in on the front of the amp and also foot switched in and out using a standard single latching footswitch.

The MAG 300H head features a potent new fan-cooled 307 watts RMS power section. Rotary bass, middle and treble controls are supplemented by smaller rotary controls providing 15dB of cut and boost at 220Hz and 1.6kHz, providing a comprehensive 5 band EQ section. Additionally, front panel push switches for Bright and Deep settings provide instant access to attacking and warm, rounded sounds respectively and, on the subject of low-end response, the trademark Ashdown sub-harmonic generator is ready and able to deliver truck loads of earth moving tone if called upon. Inputs are provided for active and passive instruments and the front panel also features an effects send and return, a tuner/line output and a balanced DI output for direct connection to a mixing console.

With the MAGs now achieving EVO III status, the amplifier also includes a built-in compressor with precision sonic control.

FEATURES

307W of power
5 band EQ
Rotary bass, middle and treble controls
Overdrive control with footswitch control
Effects send and return
Tuner/line output
Balanced DI output
SPECIFICATIONS
Power Output: 307W
Power Requirement: 230 /115v
Frequency Response: -3dB at 17Hz and 30KHz
Speaker Outputs: 2 x Jack Outputs
High Instrument Input: Impedance 3.9MOhms / Input range 150mV - 20V p-p
Low Instrument Input: Impedance 10KOhms / Input range 300mV - 40V p-p
Line Input: Impedance 22k Ohms / Input level 0dBu nominal
DI Output: 600 Ohms balanced / Level -20dBu nominal
Tuner Output: Impedance 22k Ohms / Level 0dBu nominal
Impedance: Minimum 4 Ohms
Signal to noise: Better than 80dB (EQ flat)
EQ: Bass +/-15dB @ 100Hz
Lo Mid +/-15dB @ 220Hz
Middle +/-15dB @ 660Hz
Hi Mid +/-15dB @ 1.6kHz
Treble +/-15dB @ 7kHz shelving
Deep +8dB @ 50Hz
Bright +10dB @ 10kHz
Effects Send: Impedance 22k Ohms / Level 0dBu nominal
Effects Return: Impedance 22k Ohms / Level 0dBu nominal
Distortion: Less than 0.5% THD
Dimensions (W x H x D): 18.2" x 3.5" x 10.5"
Weight: 18.7 lb.
Pro Coverage
MANUFACTURER'S WARRANTY
Limited 1 year warranty on all amps.
